2.8.10 Configuring PTP
Precision Time Protocol (PTP) is a time protocol that can be used to synchronize com-
puters on an Ethernet network. VersaSync supports PTP Version1 and2, as specified in
the IEEE 1588-2002 and IEEE 1588-2008 standard, via one (1) Ethernet port. PTP is cur-
rently only available on eth1 in order to take advantage of the Spectracom
Timestamper.
VersaSync currently can be configured as a PTP Master Clock only.
Next to PTP specifications, this topic describes the PTP menu items and settings, and out-
lines how to set up VersaSync as a PTP Master.
PTP Specifications
Inputs/Outputs: (1) Ports
Signal Type: Ethernet
Management: Web UI
Network Speeds: 100 Mb/s, 1Gb/s, or 10Gb/s
PTP Version supported:PTP1 IEEE (1588-2002) and 2 (IEEE 1588-2008)
PTP Profiles supported: Default, Telecom, Enterprise
Transmission modes: Unicast, Multicast (IPv4 and Ethernet), and Hybrid [default]
Timestamping: VersaSync has PTP time stamp functionality which is set to use the
UTC timescale.
2.8.10.1 The PTP Screen
The PTP screen provides PTP status information, and provides access to all configurable
PTP settings.
To access the PTP screen, navigate to MANAGEMENT > NETWORK: PTP Setup. The
PTP screen will open:

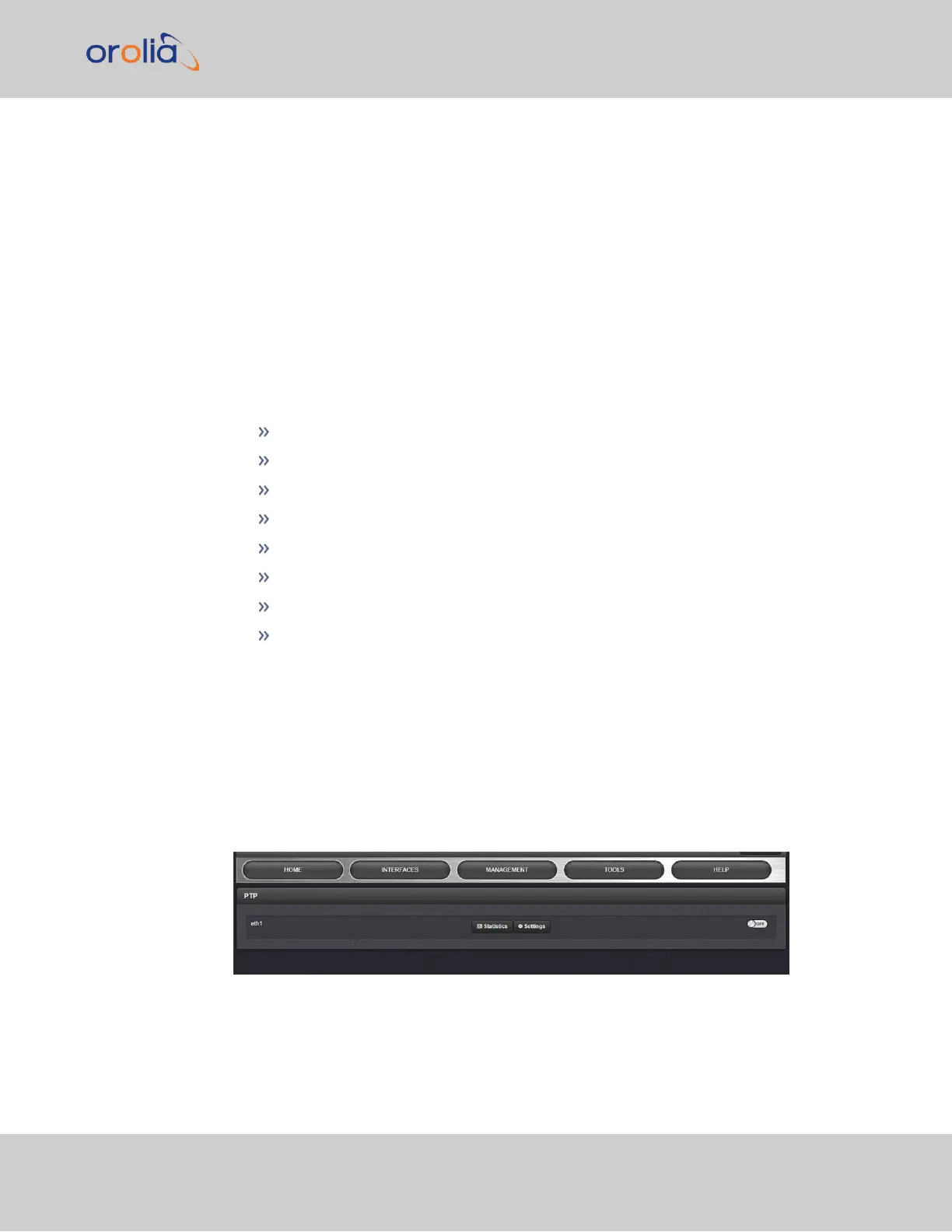

Figure 2-6: PTP setup screen
For each Ethernet port (eth1) you can toggle PTP functionality ON or OFF.
