Offset: Provides the ability to account for STANAG Line (TOD1 and
TOD2 independently) cable delays or other latencies in the STANAG
input. Available Offset range is –500 to +500ms in 5ns steps.
3.
Click Submit.
2.7.4.7 Configuring a HaveQuick Output
To configure a HaveQuick output:
1.
Navigate to INTERFACES > OUTPUTS: HQ Output 0, or to INTERFACES >
OPTION CARDS: HQ Output 0. The Status window will display, providing inform-
ation on Signature Control, message Format, Timescale, and Offset.
2.

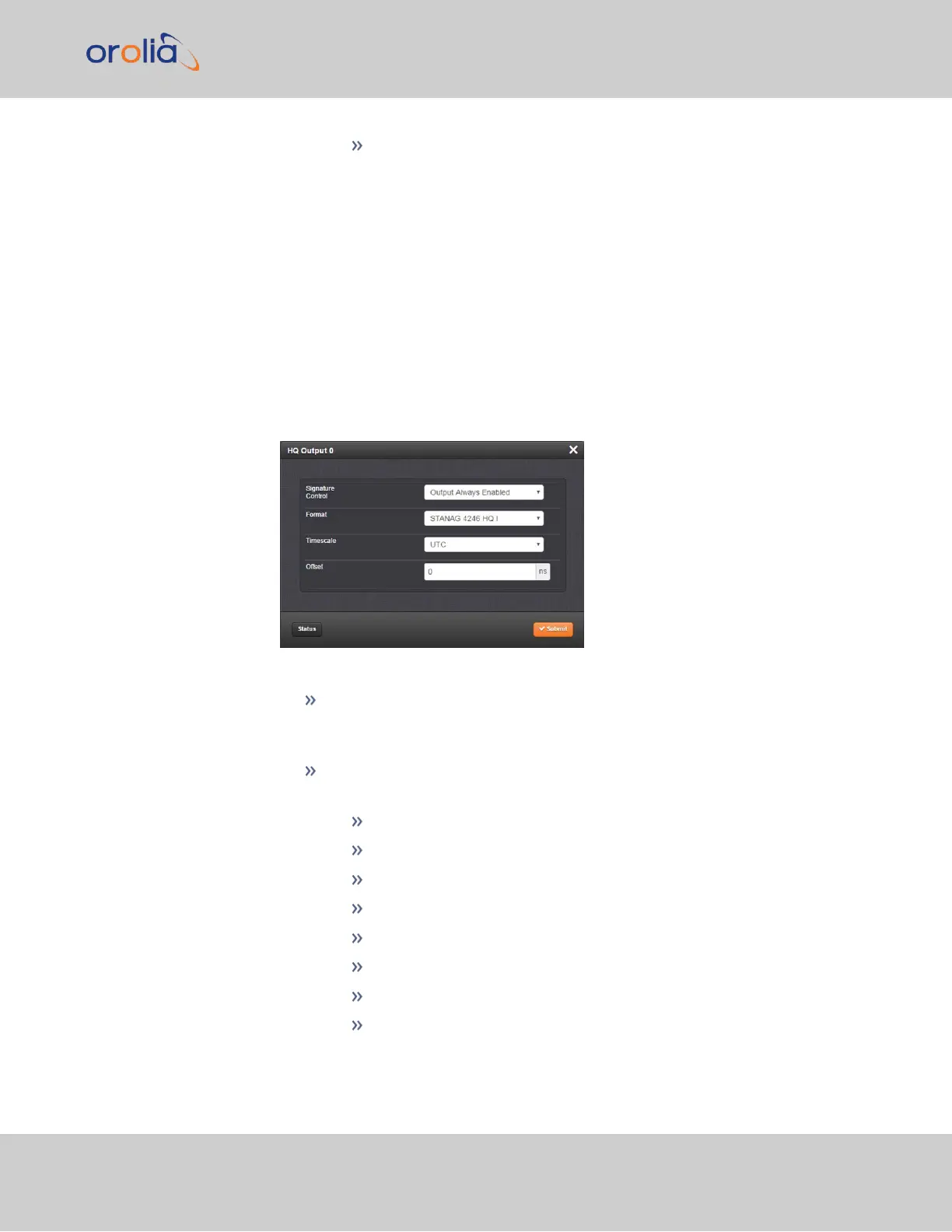

Click Edit. The Configuration window will display.
The following settings are configurable:
Signature Control: Used to control when the signal will be present. This func-
tion allows the modulation to stop under certain conditions, see also "Sig-
nature Control" on the next page.
TOD Format : The user-selectable format to be used. Available formats
include:
STANAG 4246 HQI
STANAG 4246 HQII
STANAG 4372 HQIIA
STANAG 4430 STM
STANAG 4430 XHQ
ICD-GPS-060A BCD
ICD-GPS-060A HQ
DOD-STD-1399 BCD
2.7 Configuring Inputs/Outputs
CHAPTER 2 • VersaSync User Manual Rev. 7.0
59
