Orolia VersaSync User Manual

3.

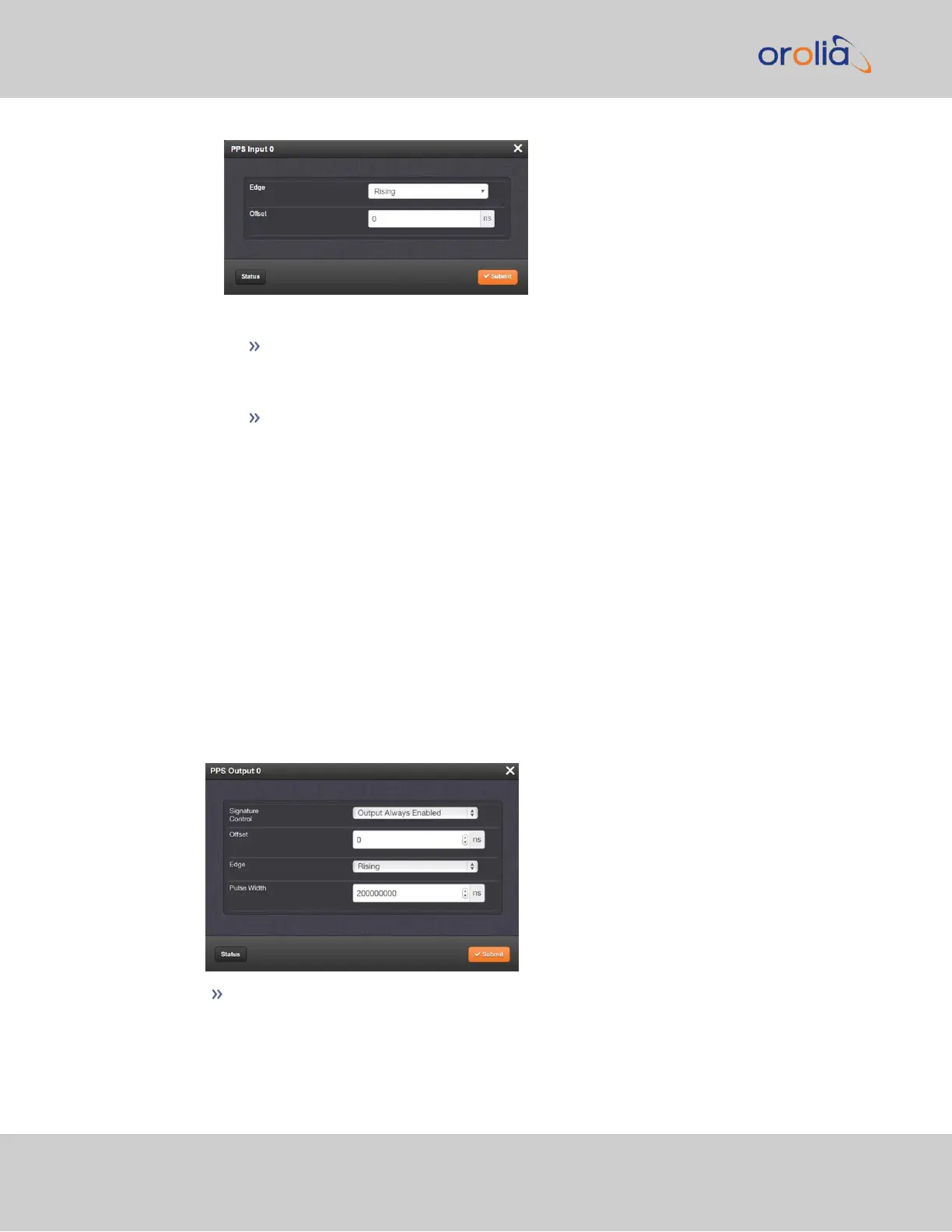

Apply your settings for:
Edge: [Rising, Falling] The on-time point of the 1PPS input can be configured
to be either the rising or falling edge of the 1PPS signal (by default, the rising
edge is the on-time point).
Offset: [-500000000 to 500000000 ns = ±0.5 s] Allows to offset the sys-
tem's 1PPS on-time point, e.g. to compensate for cable delays and other laten-
cies
4.
Click Submit.
2.7.4.2 Configuring a 1PPS Output
To configure a 1PPS output:
1.
Navigate to INTERFACES: OUTPUTS, or to INTERFACES: OPTION CARDS (white
on orange).
2.
In the panel on the right, click the GEAR button next to the 1PPS Output you want to
edit.
3.
The 1PPS Output Edit window will display, allowing the following items to be con-
figured:
Signature Control: Determines when the output is enabled. For more inform-
ation, see "Signature Control" on page60.
48
CHAPTER 2 • VersaSync User Manual Rev. 7.0
2.7 Configuring Inputs/Outputs
