Word) instruction as shown in the example ladder. For
PLC-5 and SLC 500 controllers, use a COP (Copy)
instruction.

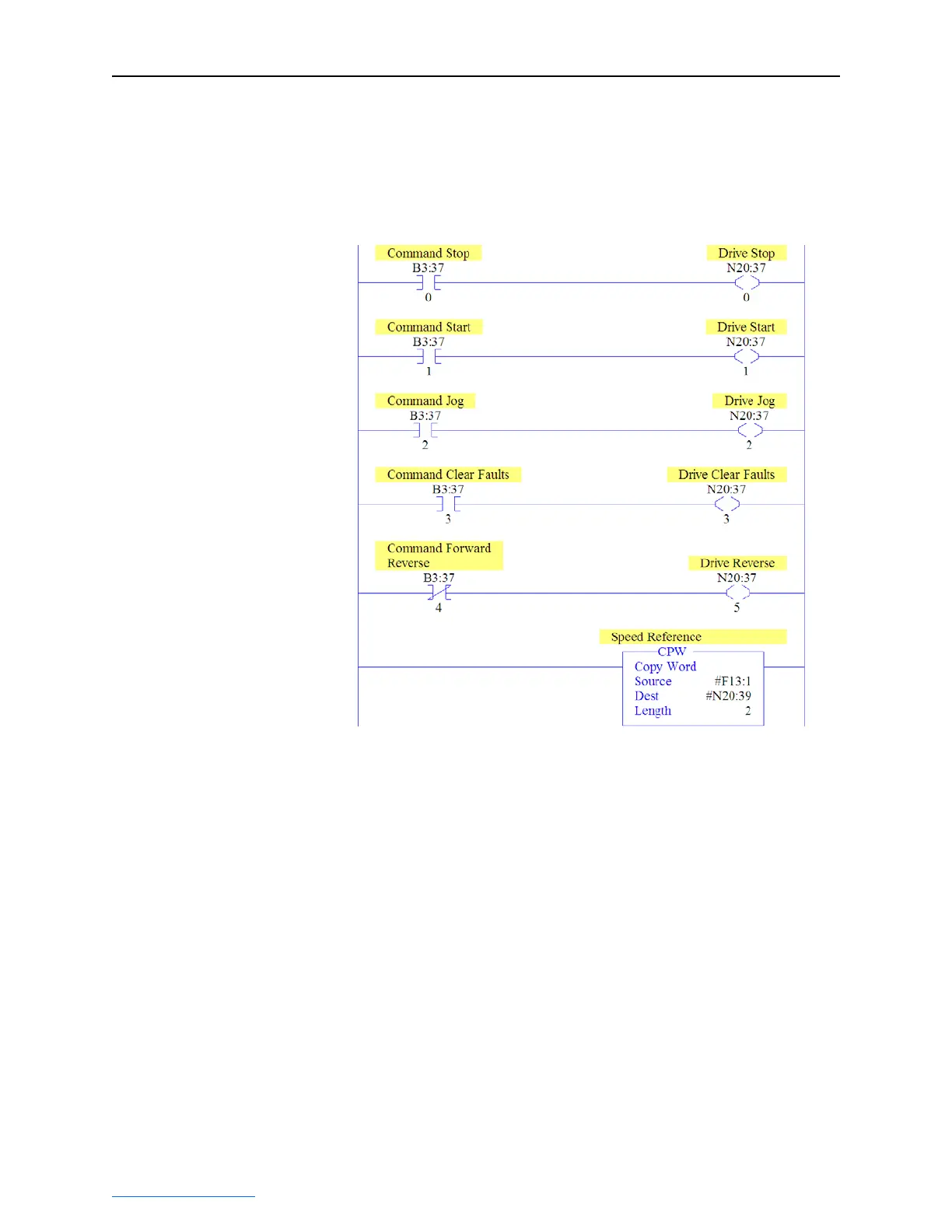

Figure 5.13 PLC-5, SLC 500, and MicroLogix 1100 Example Ladder Logic
Program for Logic Command/Reference
Important:This ladder does not include logic for Datalinks. However,
if Datalinks are required and they are a REAL (floating
point) data type, a data conversion must be used. For
MicroLogix 1100 controllers only, use a CPW (Copy
Word) instruction as shown in the example ladder. For
PLC-5 and SLC 500 controllers, use a COP (Copy)
instruction.
To Next Page
