1-6 Getting Started
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
Status Indicators
The embedded EtherNet/IP adapter uses two status indicators to report
its operating status. They can be viewed with the HIM cradle closed or
open (Figure 1.2
).

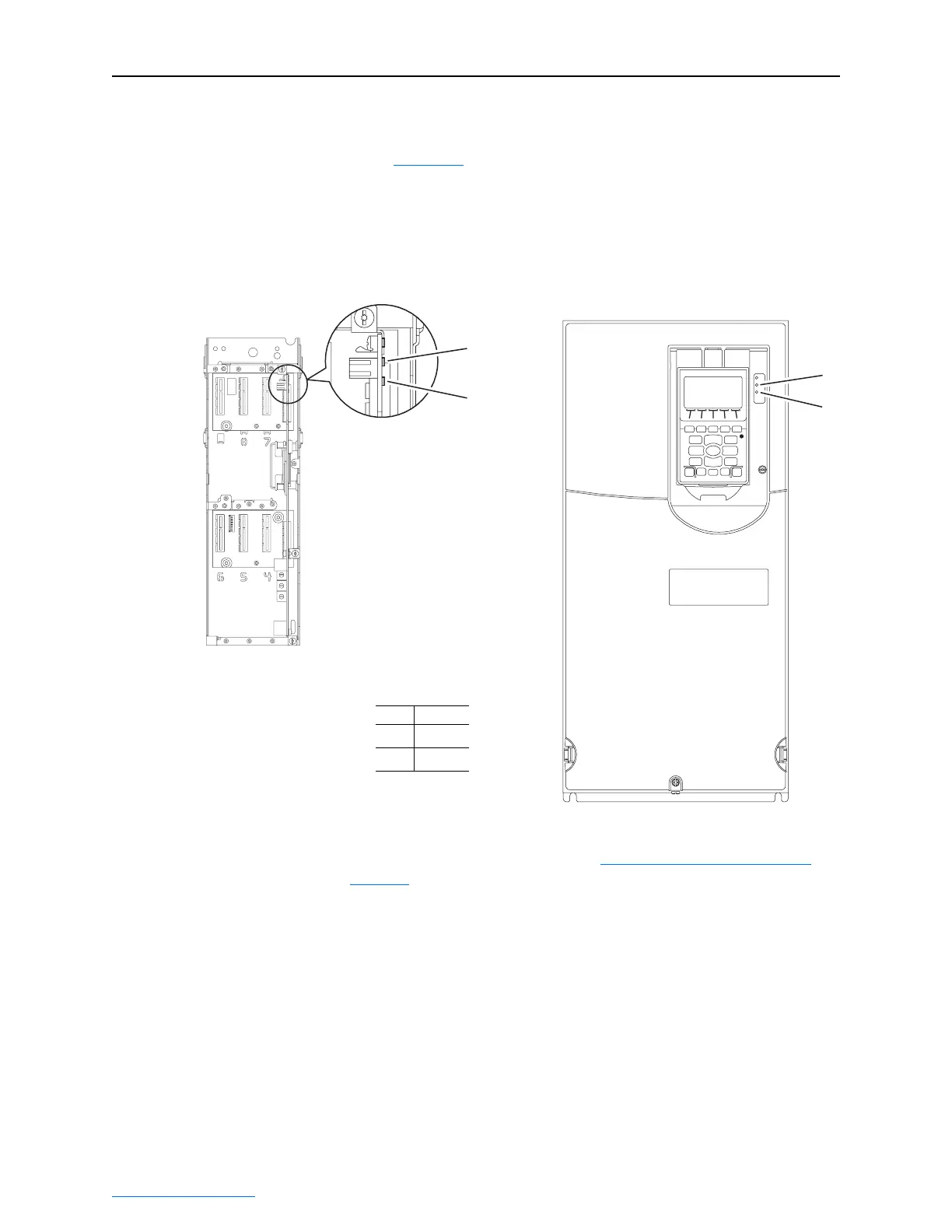

Figure 1.2 Status Indicators
After connecting the embedded EtherNet/IP adapter to the network and
applying power to the drive, refer to Start-Up Status Indications
on
page 2-5 for possible start-up status indications and their descriptions.
➊
➋
➊
➋
Indicators shown with HIM bezel
closed and drive cover installed.
Item Name
➊
ENET
➋
LINK
Embedded EtherNet/IP adapter status indicators
on main control board in drive control pod.
