Configuring the I/O 4-43
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
Creating MicroLogix 1100 Ladder Logic for the Logic Command, Reference,
and DL To Net Datalinks
1. Insert another separate rung, double-click on the rung to display the
rung editor, and enter MSG MGxx:n, where:
xx is an unused data file number (for example, MG12:n), and
n is an unused element of the data file chosen for xx (for example, MG12:0
)
Then press Enter.
2. Insert another separate rung, double-click on the rung to display the
rung editor, and enter BST XIC MGxx:n/DN NXB XIC MGxx:n/
ER BND OTU MGxx:n/EN, where:
xx and n must correspond to the assigned data file number and element (for example,
MG12
:0) for the message created in Step 1.
Important:The information must be entered with appropriate
numbers for “xx” and “n” for your application, and
with spaces and forward slashes exactly as shown.
Then press Enter.
3. In the MSG instruction (Figure 4.47
), double-click on Setup Screen
to launch the message configuration screen (Figure 4.48
).

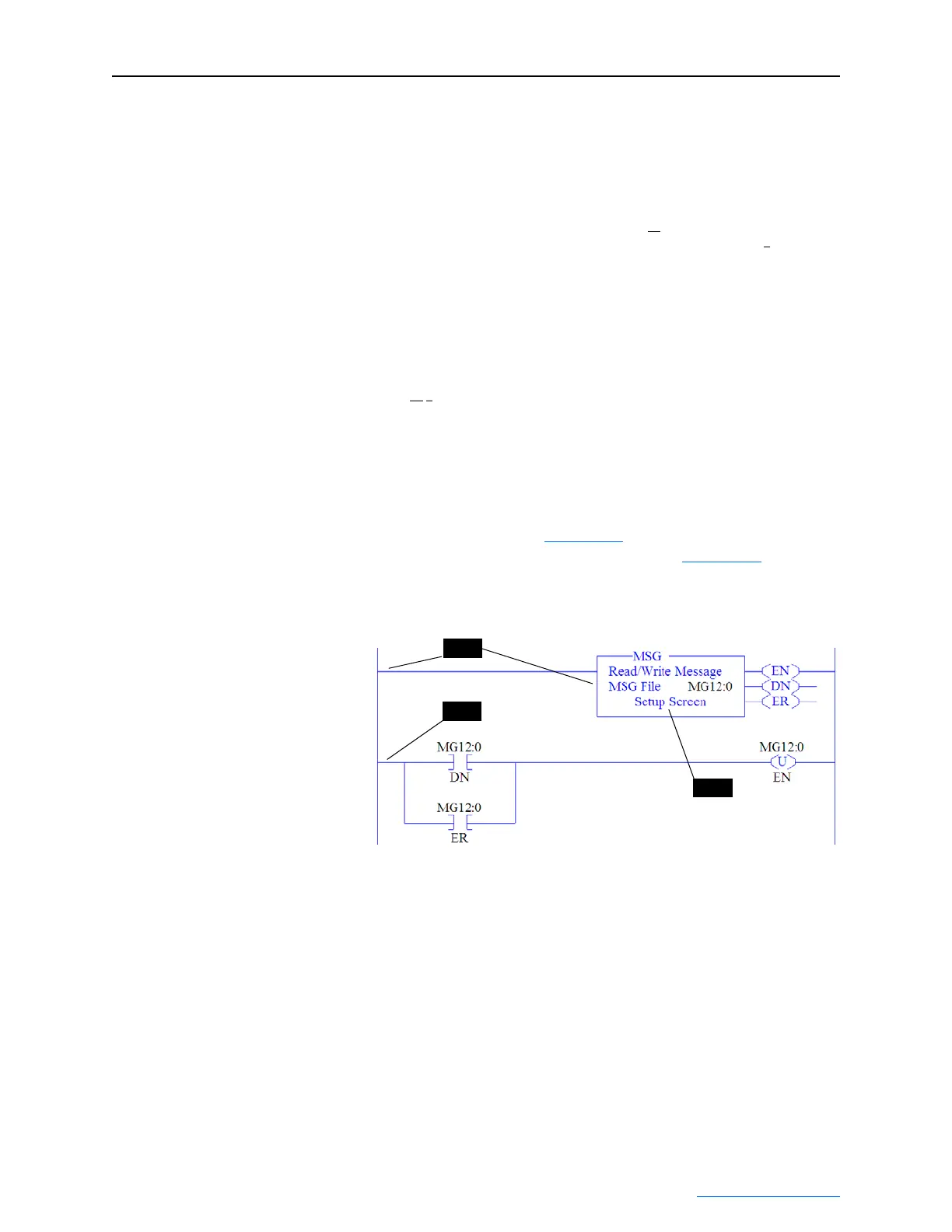

Figure 4.47 MicroLogix 1100 Ladder Logic for the Logic Command,
Reference, and DL To Net Datalinks
4. Configure the General tab by entering or verifying the information
shown in the screen.
Step 1
Step 2
Step 3
