4-40 Configuring the I/O
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P

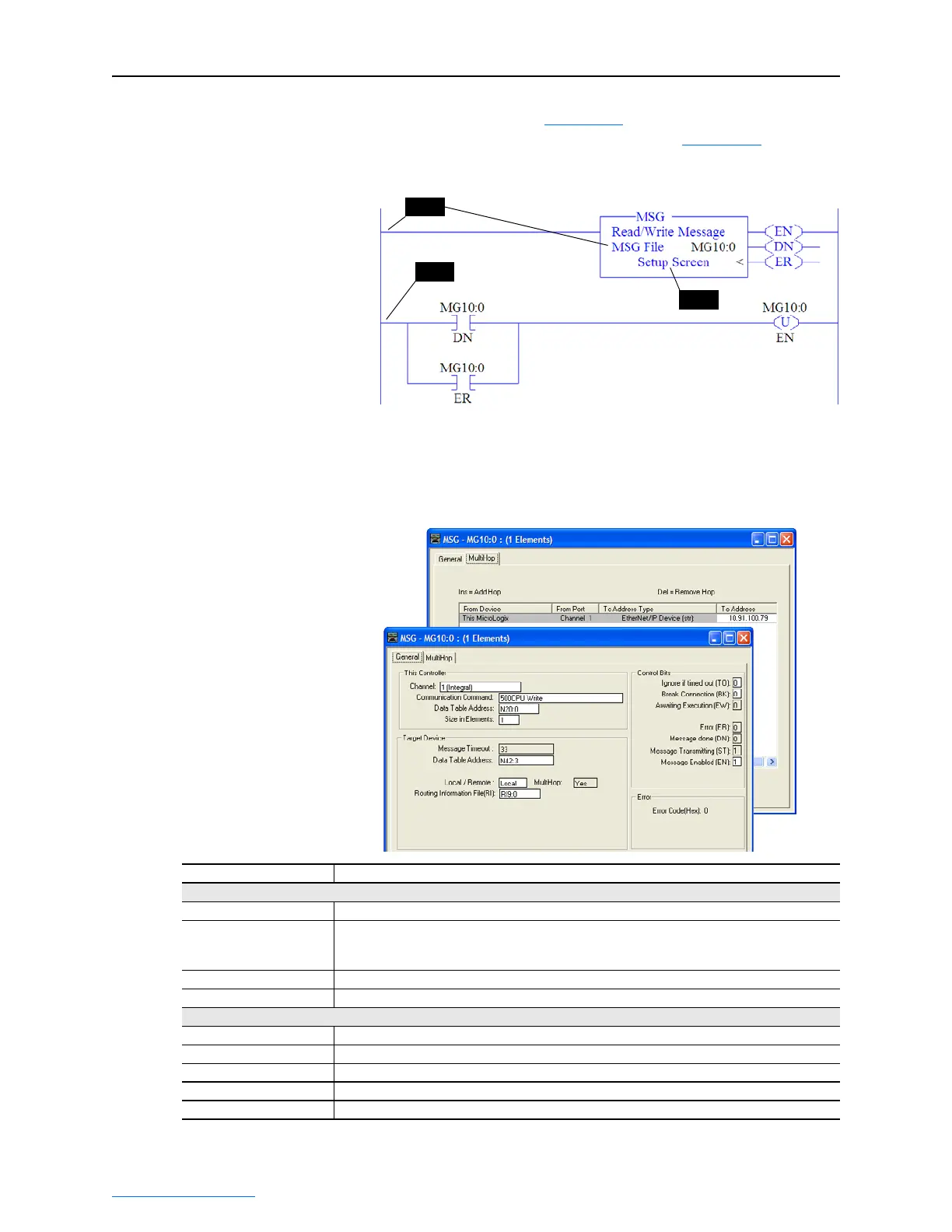

4. In the MSG instruction (Figure 4.43), double-click on Setup Screen
to launch the message configuration screen (Figure 4.44
).
Figure 4.43 MicroLogix 1100 Ladder Logic for the Control Timeout
5. Configure the General tab by entering or verifying the information
shown in the screen.
Figure 4.44 MicroLogix 1100 Message Configuration Screens for the
Control Timeout
Step 2
Step 3
Step 4
General Tab Box Setting
This Controller (data for MicroLogix 1100)
Channel 1 (integral). Controller port to which the EtherNet/IP network is connected.
Communication Command 500CPU Write. The controller type and command type for the controller to read or write data. Since
the MicroLogix 1100 is part of the SLC-500 controller family, the “500CPU” controller type was
selected. The “Write” command type was selected to write the control timeout value to the drive.
Data Table Address
(1)
N20:0. An unused controller data table address containing the control timeout value to be written.
Size in Elements
(2)
1. Number of elements (words) to be transferred. Each element size is a 16-bit integer.
Target Device (data for adapter/drive)
Message Timeout 5. Message timeout duration in seconds.
Data Table Address
(3)
N42:3. Specific starting address of the destination file in the drive.
Routing Information File RI9:0. An unused routing information file for the controller.
MultiHop Tab Box Setting
To Address 10.91.100.79. The IP address of the adapter connected to the drive.
