Rockwell Automation PowerFlex 755 Drive User Manual

Using Explicit Messaging 6-39
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
MicroLogix 1100 Example Ladder Logic Program to Write Multiple
Parameters
A Custom scattered write message is used to write to multiple
parameters. This write message example writes the following values to
these five 32-bit REAL (floating point) parameters in a PowerFlex
750-Series drive:

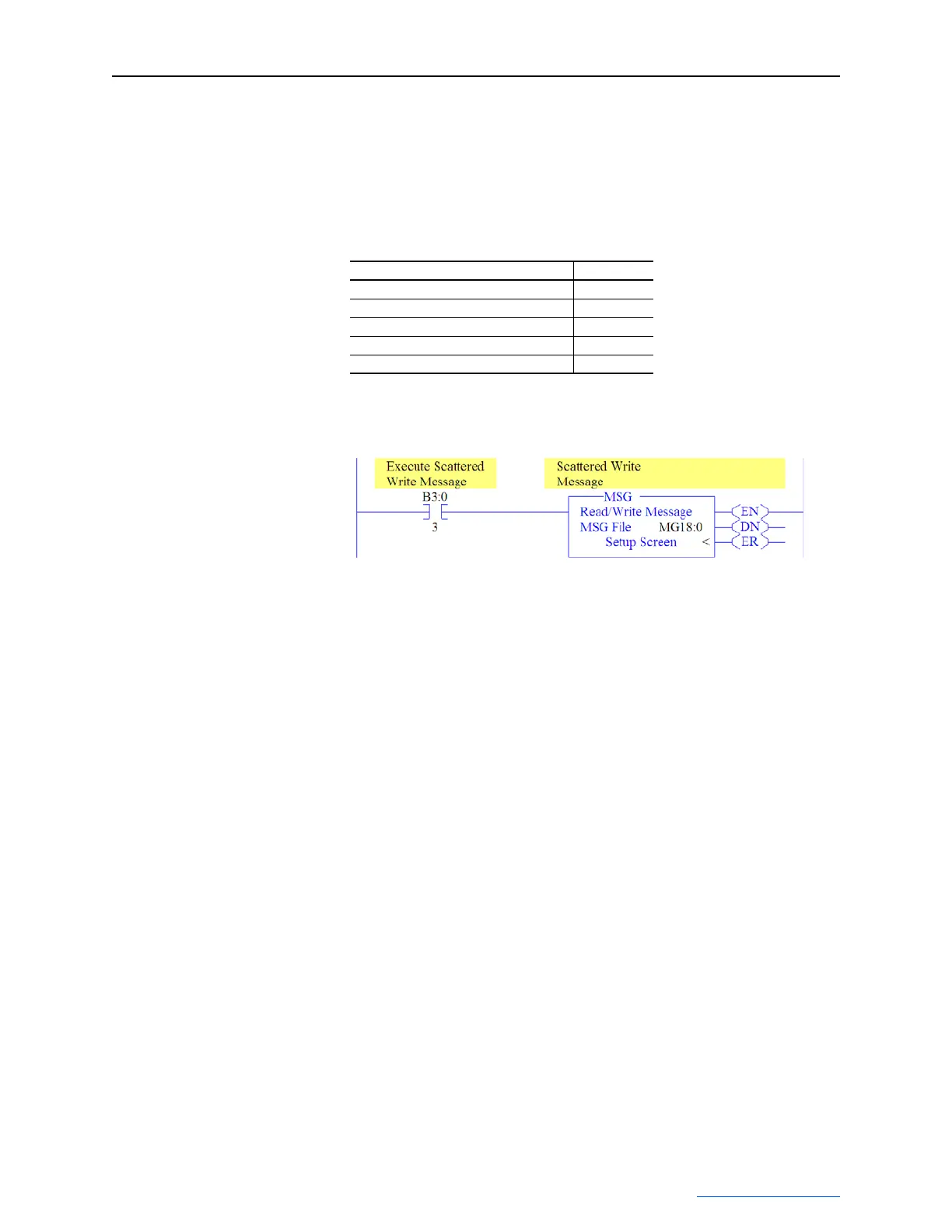

Figure 6.47 Example Ladder Logic Explicit Messaging Program for Write
Multiple
PowerFlex 750-Series Drive Parameter Write Value
536 - [Accel Time 2] 11.1 Sec.
538 - [Decel Time 2] 22.2 Sec.
575 - [Preset Speed 5] 33.3 Hz.
576 - [Preset Speed 6] 44.4 Hz.
577 - [Preset Speed 7] 55.5 Hz.
