Using Explicit Messaging 6-25
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P

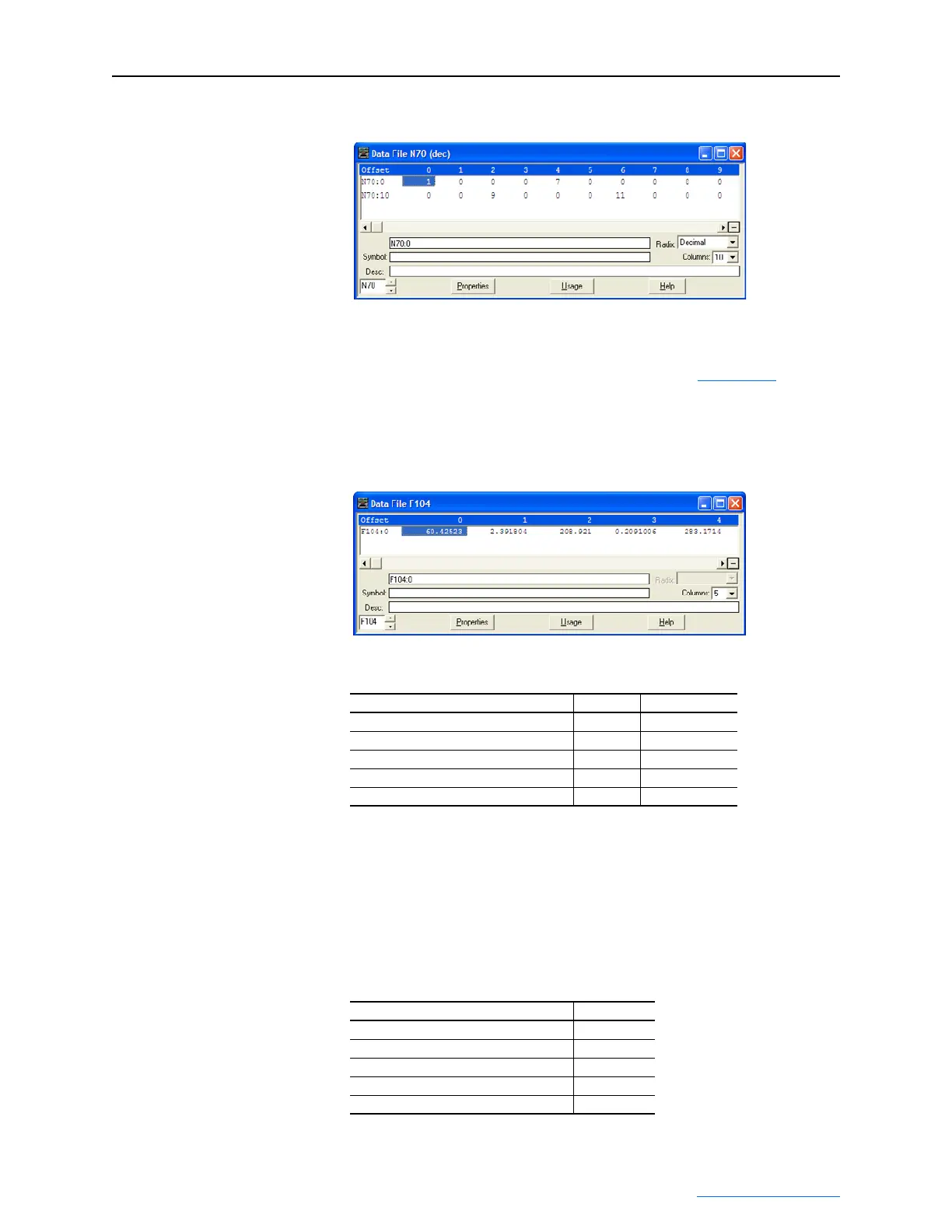

Figure 6.29 Example Scattered Read Request Data File
SLC 500 Example Scattered Read Response Data
In this example, we use the data table addresses in Figure 6.30 to store
the response values that were read from the requested drive parameters.
These values have been converted using a CPW (Copy Word)
instruction for correct presentation.
Figure 6.30 Example Scattered Read Response Data File
In this example, the parameters have the following values:
SLC 500 Example Ladder Logic Program to Write Multiple
Parameters
A Custom scattered write message is used to write to multiple
parameters. This write message example writes the following values to
these five 32-bit REAL (floating point) parameters in a PowerFlex
750-Series drive:
PowerFlex 750-Series Drive Parameter Address Read Value
1 - [Output Frequency] F104:0 60.42523 Hz
7 - [Output Current] F104:1 2.391804 Amp
8 - [Output Voltage] F104:2 208.921 VAC
9 - [Output Power] F104:3 0.2091006 kW
11 - [DC Bus Voltage] F104:4 283.1714 VDC
PowerFlex 750-Series Drive Parameter Write Value
536 - [Accel Time 2] 11.1 Sec.
538 - [Decel Time 2] 22.2 Sec.
575 - [Preset Speed 5] 33.3 Hz.
576 - [Preset Speed 6] 44.4 Hz.
577 - [Preset Speed 7] 55.5 Hz.
