Installing the Adapter 2-5
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
Start-Up Status Indications
After power has been applied, status indicators for the PowerFlex 755
drive and embedded EtherNet/IP adapter can be viewed on the front of
the drive (Figure 2.3
). Possible start-up status indications are shown in
Table 2.A
.

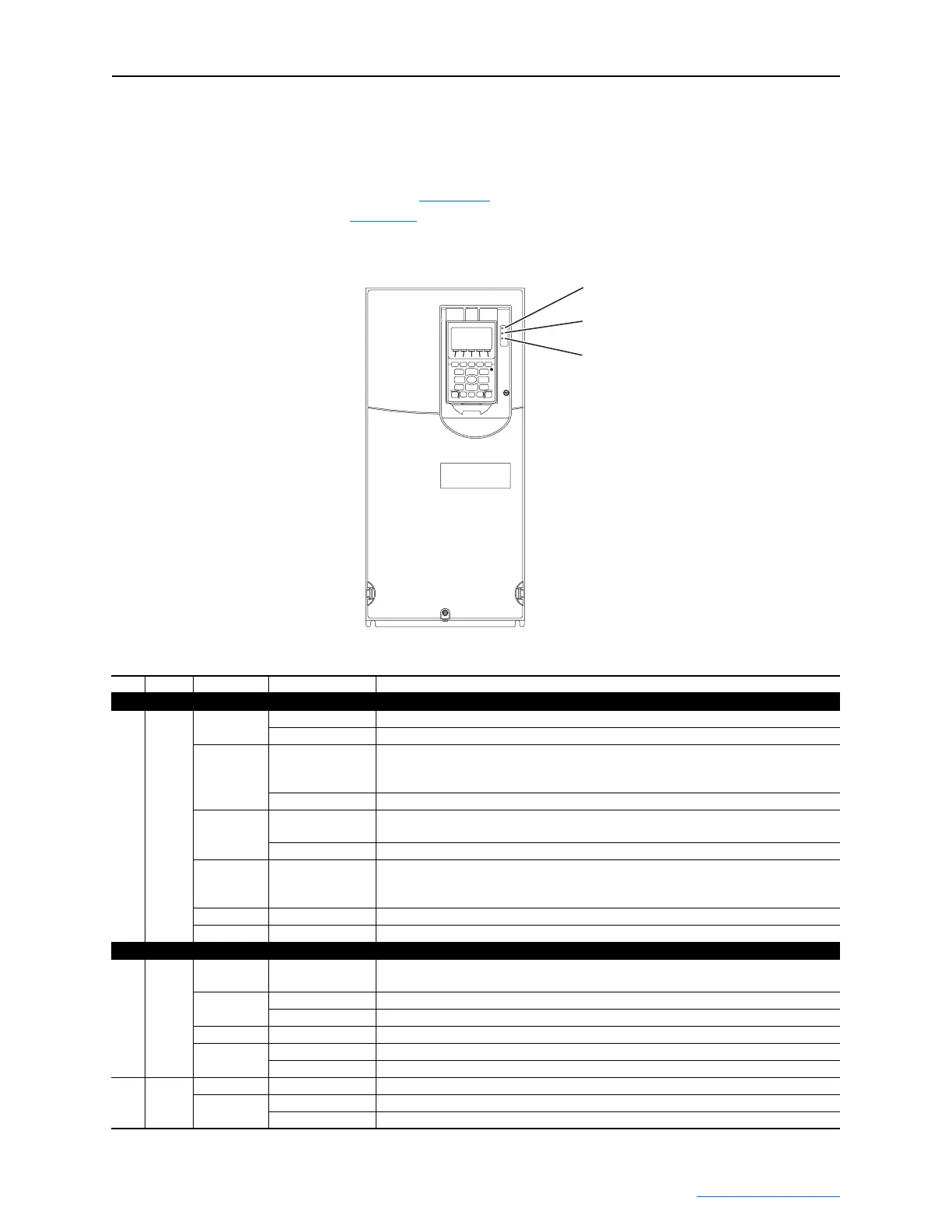

Figure 2.3 Drive and Adapter Status Indicators
Table 2.A Drive and Adapter Start-Up Status Indications
➊
➋
➌
Item Name Color State Description
Drive STS Indicator
➊
STS
(Status)
Green Flashing Drive ready but not running, and no faults are present.
Steady Drive running, no faults are present.
Yellow Flashing When running, a type 2 (non-configurable) alarm condition exists – drive continues to run.
When stopped, a start inhibit condition exists and the drive cannot be started (see drive
parameter 933 - [Start Inhibit]).
Steady A type 1 (user configurable) alarm condition exists, but the drive continues to run.
Red Flashing A major fault has occurred. Drive will stop. Drive cannot be started until fault condition is
cleared.
Steady A non-resettable fault has occurred.
Red/Yellow Flashing Alternately A minor fault has occurred. Use drive parameter 950 - [Minor Flt Config] to enable. If not
enabled, acts like a major fault. When running, the drive continues to run. System is
brought to a stop under system control. The fault must be cleared to continue.
Yellow/Green Flashing Alternately When running, a type 1 alarm exists.
Green/Red Flashing Alternately Drive is flash updating.
Embedded EtherNet/IP Adapter Status Indicators
➋
ENET Unlit Off Adapter and/or network is not powered, adapter is not properly connected to the network,
or adapter needs an IP address.
Red Flashing An EtherNet/IP connection has timed out.
Steady Adapter failed the duplicate IP address detection test.
Red/Green Flashing Alternately Adapter is performing a self-test.
Green Flashing Adapter is properly connected, but is not communicating with any devices on the network.
Steady Adapter is properly connected and communicating on the network.
➌
LINK Unlit Off Adapter is not powered or is not transmitting on the network.
Green Flashing Adapter is properly connected and transmitting data packets on the network.
Steady Adapter is properly connected, but is not transmitting on the network.
