Using the I/O 5-9
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
Controller Tags
When you add the adapter and drive to the I/O configuration
(Chapter 4
), RSLogix 5000 automatically creates generic
(non-descriptive) controller tags. In this example program, the
following controller tags are used.

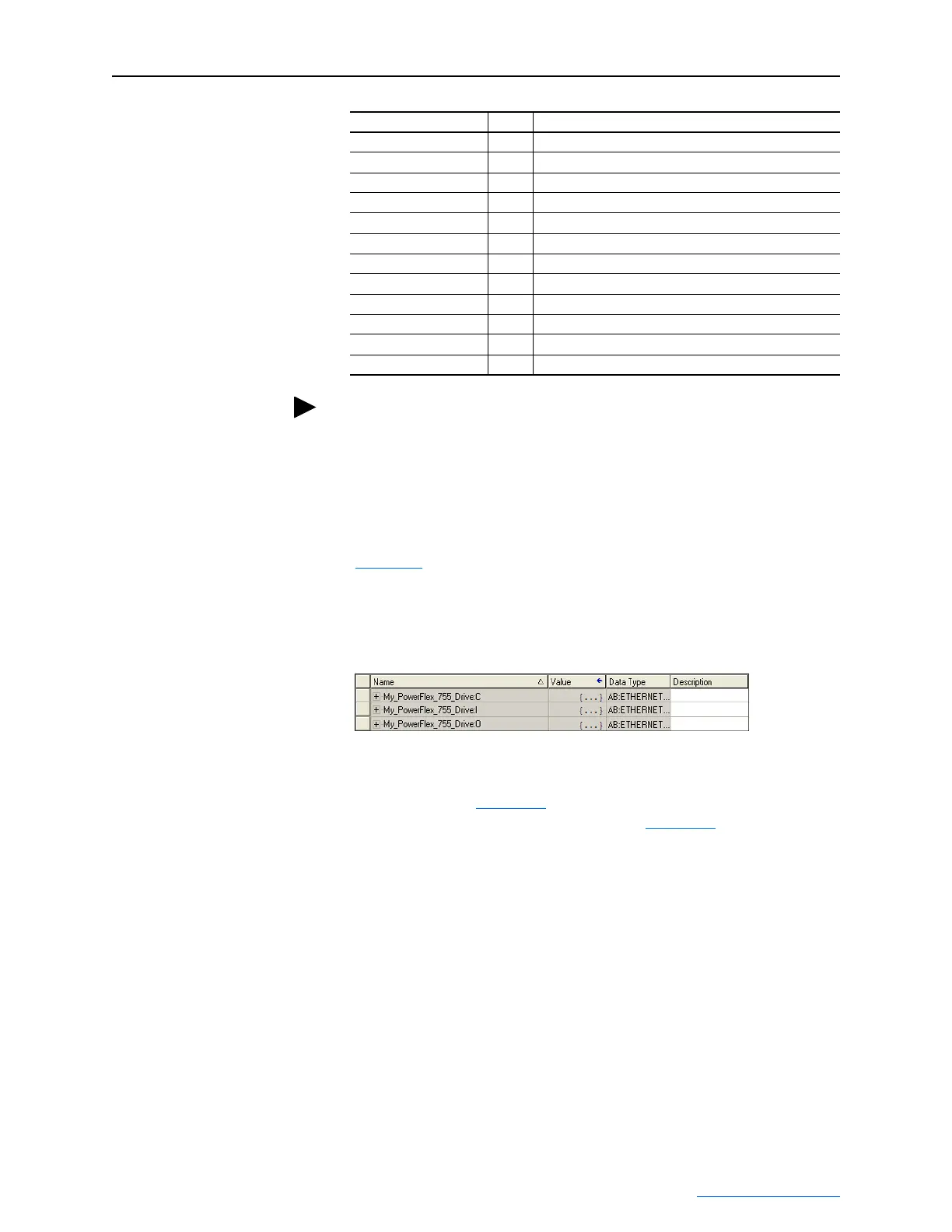

Figure 5.4 ControlLogix Controller Tags for Generic Drive Profile Example
Ladder Logic Program
You can expand the Output and Input tags to reveal the output and input
configuration. The Input tag for this example requires nineteen 32-bit
words of data (see Figure 5.5
). The Output tag for this example program
requires eighteen 32-bit words of data (see Figure 5.6
).
21 - [DL To Net 05] 537 Points to drive Par. 537 - [Decel Time 1]
22 - [DL To Net 06] 538 Points to drive Par. 538 - [Decel Time 2]
23 - [DL To Net 07] 539 Points to drive Par. 539 - [Jog Acc Dec Time]
24 - [DL To Net 08] 556 Points to drive Par. 556 - [Jog Speed 1]
25 - [DL To Net 09] 557 Points to drive Par. 557 - [Jog Speed 2]
26 - [DL To Net 10] 571 Points to drive Par. 571 - [Preset Speed 1]
27 - [DL To Net 11] 572 Points to drive Par. 572 - [Preset Speed 2]
28 - [DL To Net 12] 573 Points to drive Par. 573 - [Preset Speed 3]
29 - [DL To Net 13] 574 Points to drive Par. 574 - [Preset Speed 4]
30 - [DL To Net 14] 575 Points to drive Par. 575 - [Preset Speed 5]
31 - [DL To Net 15] 576 Points to drive Par. 576 - [Preset Speed 6]
32 - [DL To Net 16] 577 Points to drive Par. 577 - [Preset Speed 7]
Adapter Parameter Value Description
TIP: The [DL From Net xx] parameters are inputs into the drive that
come from controller outputs (for example, data to write to a drive
parameter). The [DL To Net xx] parameters are outputs from the drive
that go to controller inputs (for example, data to read a drive parameter).
