PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
Chapter 1
Getting Started
The EtherNet/IP adapter, embedded on the Main Control Board in
PowerFlex 755 drives, is used for network communication.
Components

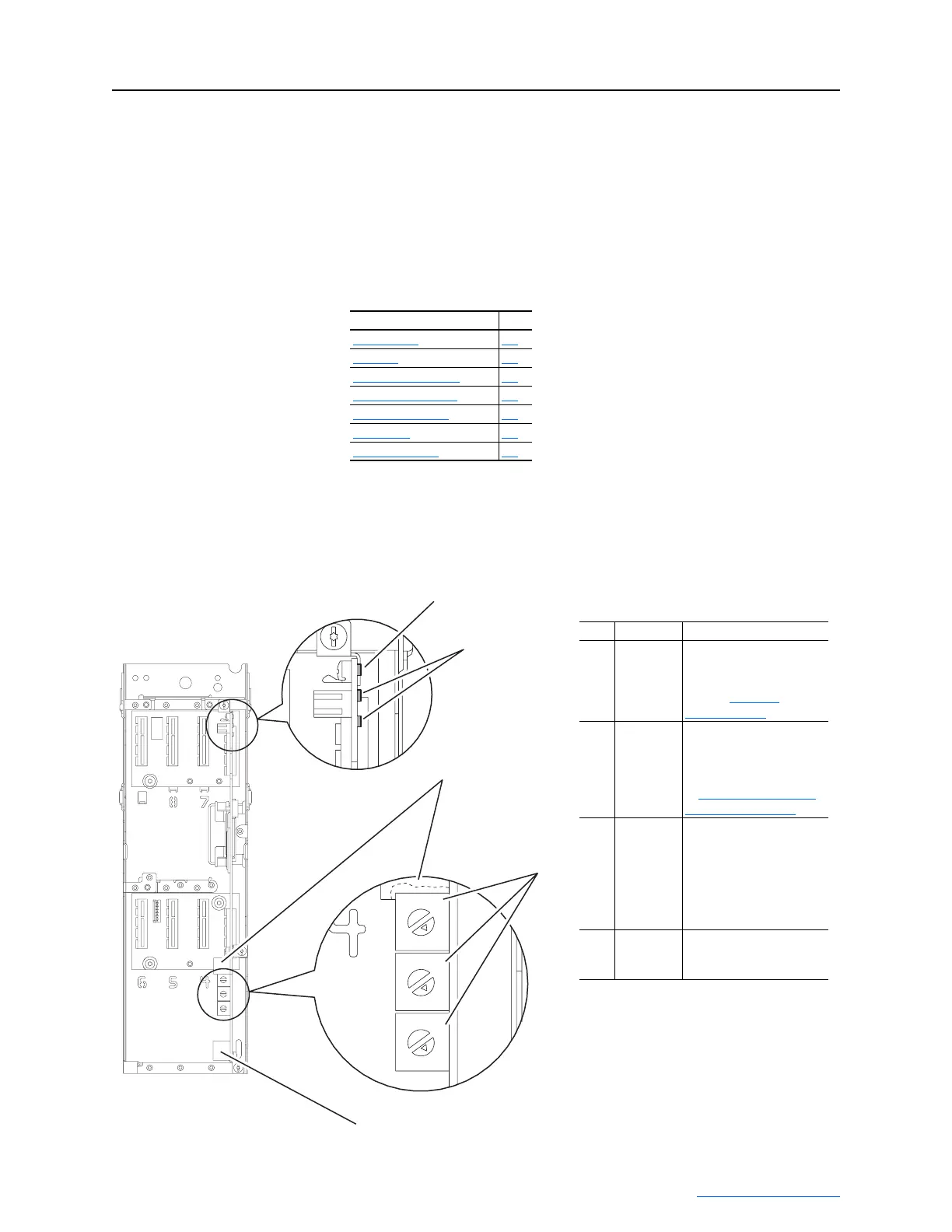

Figure 1.1 Components of the Embedded EtherNet/IP Adapter
(shown with HIM bezel open and drive cover removed)
Topic Page
Components
1-1
Features 1-2
Compatible Products 1-3
Required Equipment 1-3
Safety Precautions 1-4
Quick Start 1-5
Status Indicators 1-6
0
5
4
9
3
8
2
7
1
6
0
5
4
9
3
8
2
7
1
6
0
5
4
9
3
8
2
7
1
6
➊
➍
➌
➋
Item Part Description
➊
Status
Indicators
Two LEDs that indicate the
status of the adapter and
network communications.
Refer to Chapter 7
,
Troubleshooting
.
➋
IP Address
Switches
Sets the IP address of the
embedded adapter when
not using BOOTP or
adapter parameters. Refer
to Setting the IP Address
Switches on page 2-2.
➌
Ethernet
Connector
An RJ-45 connector for the
Ethernet cable. The
connector is CAT-5
compliant to ensure reliable
data transfer on
100Base-TX Ethernet
connections.
➍
DPI Port 2 Cable connection for
handheld and remote
options.
Drive Control Pod
Drive STS Indicator
