Configuring the Adapter 3-5
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
Setting the IP Address,
Subnet Mask, and Gateway
Address
By default, the adapter is configured to set its IP address, subnet mask,
and gateway address using a BOOTP server. If you want to set these
attributes using the adapter parameters instead, you must first disable
BOOTP and then set these network address parameters in the adapter.
Accessing Parameters in the Adapter
1. Display the Status screen, which is shown on HIM power up.
2. Use the or key to scroll to Port 13, which is the port
always dedicated to the embedded EtherNet/IP adapter.
3. Press the PAR# soft key to display the Jump to Param # entry
pop-up box.
4. Use the numeric keys to enter the desired parameter number, or use
the S or T soft key to scroll to the desired parameter number.
Disabling the BOOTP Feature
1. Set the value of Parameter 36 - [BOOTP] to “0” (Disabled).

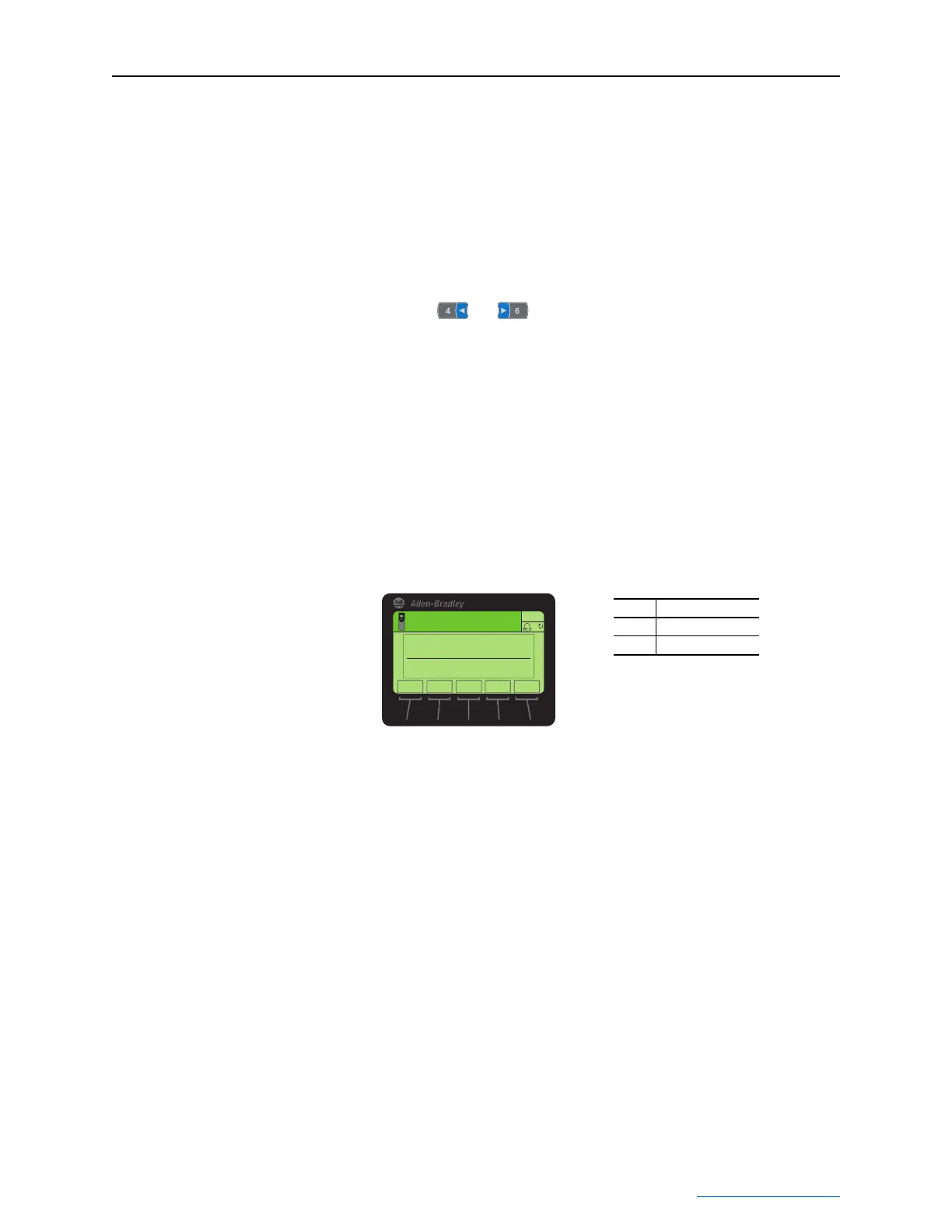

Figure 3.6 Edit BOOTP HIM Screen
2. Reset the adapter by power cycling the drive or by using the HIM’s
Reset Device function located in the drive’s DIAGNOSTIC folder.
After disabling the BOOTP feature, you can then configure the IP
address, subnet mask, and gateway address using adapter
parameters.
Setting an IP Address Using Parameters
1. Verify that Parameter 36 - [BOOTP] is set to “0” (Disabled). This
parameter must be set to Disabled to configure the IP address using
the adapter parameters.
2. Set the value of Parameters 38 - [IP Addr Cfg 1] through 41 - [IP
Addr Cfg 4] to a unique IP address.
Value Setting
0 Disabled
1 Enabled (Default)
ESC

ENTER
Stopped
0.00 Hz
AUTO
F
▲▼
Edit BOOTP
Disabled 0
0<<1
