Using the I/O 5-7
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P

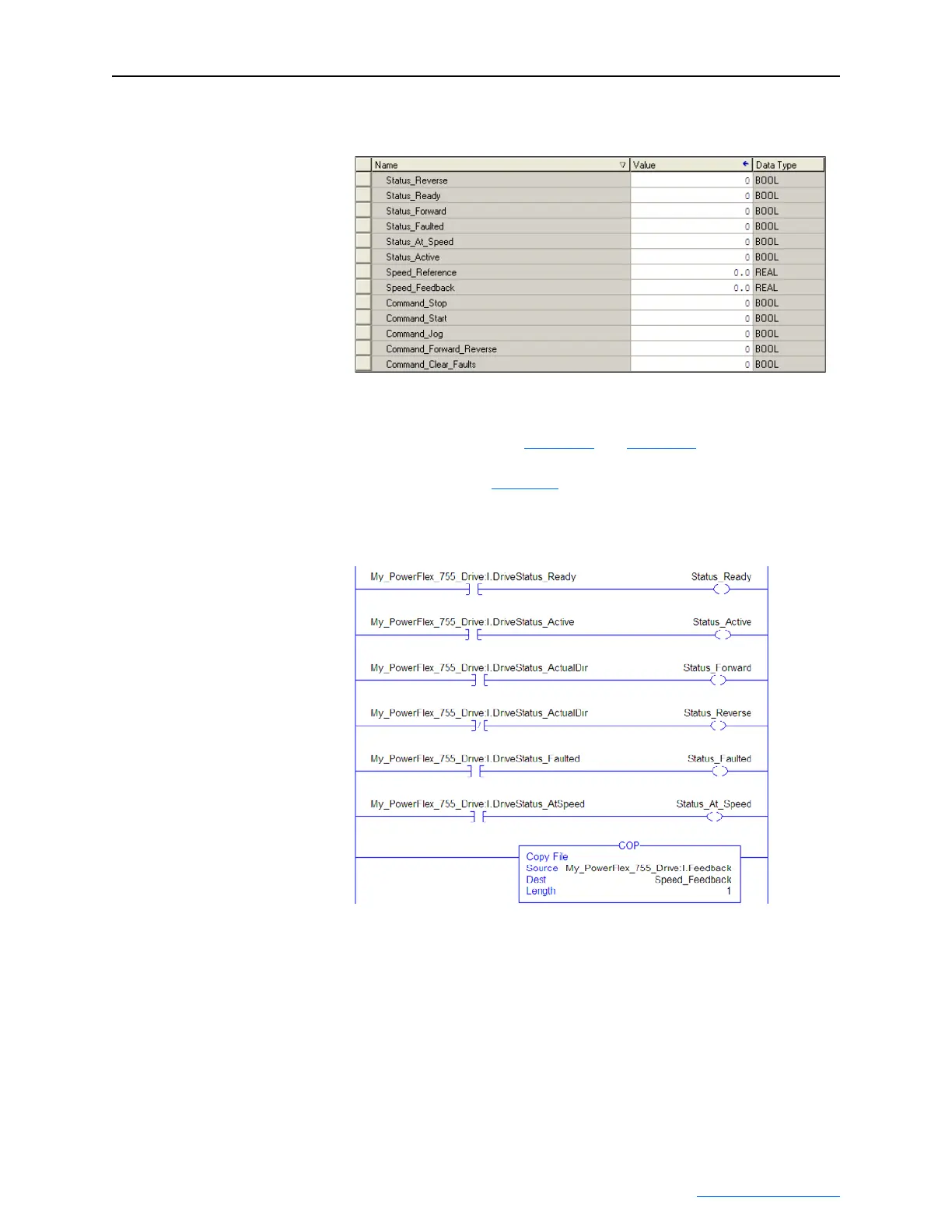

Figure 5.1 ControlLogix Program Tags for Integrated Drive Profile Ladder Logic
Program Example
An example ladder logic program that uses the automatically-created
descriptive Controller tags and passes their data to the user-defined
Program tags is shown in Figure 5.2
and Figure 5.3. Note that the prefix
for the drive Controller tags is determined by the name assigned when
configuring the I/O (Chapter 4
).
Figure 5.2 ControlLogix Example Ladder Logic Program Using Add-On Drive
Profiles for Logic Status/Feedback
To Next Page
