6-20 Using Explicit Messaging
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
SLC 500 Example Get Attribute Single Response Data
In this example, we use the data table address in Figure 6.23 to store the
response value (1.771247 amps) that was read from drive parameter 007
- [Output Current].

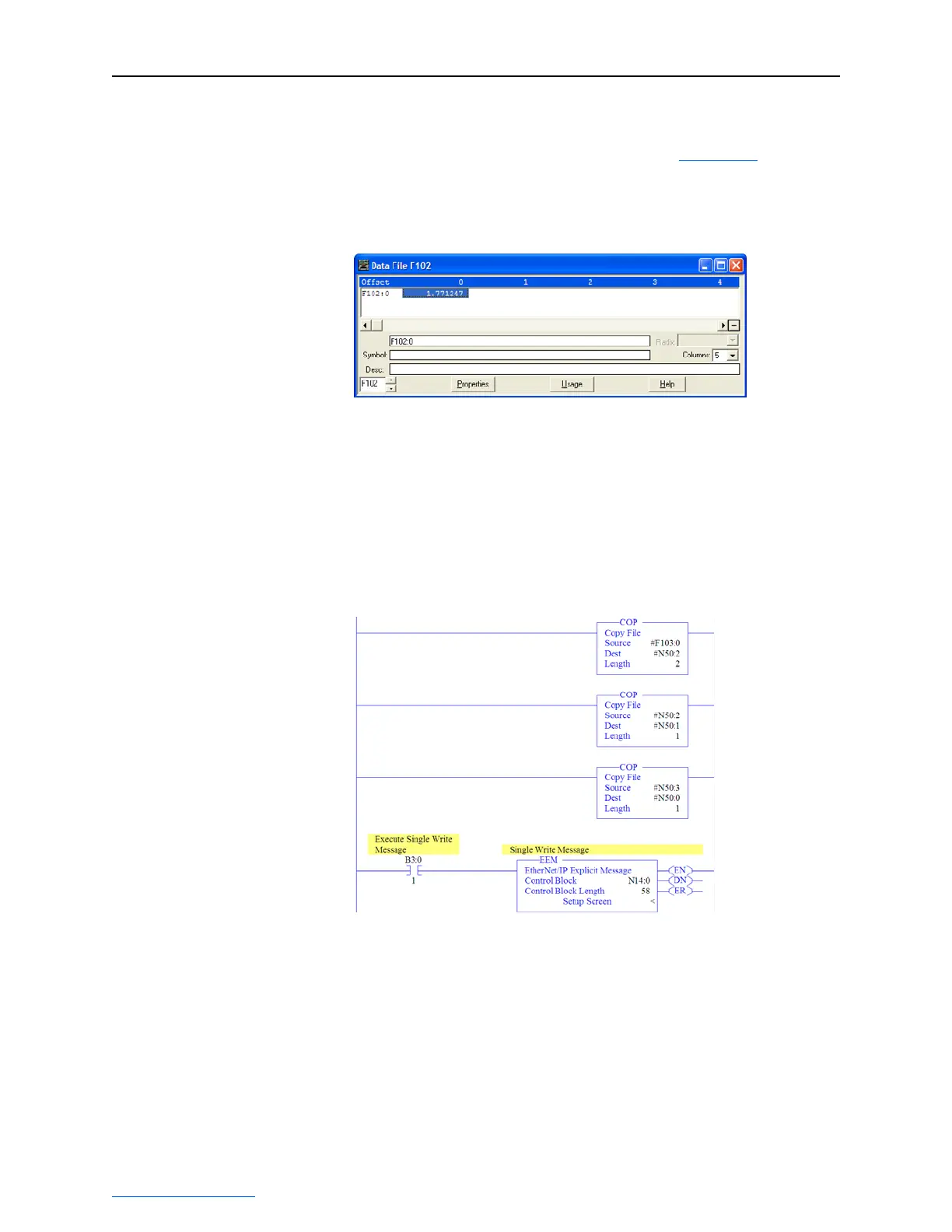

Figure 6.23 Example Get Attribute Single Response Data File
SLC 500 Example Ladder Logic Program to Write Single Parameter
A Generic Set Attribute Single message is used to write to a single
parameter. This write message example writes a value to the 32-bit
REAL (floating point) parameter 535 - [Accel Time 1] in a PowerFlex
750-Series drive.
Figure 6.24 Example Ladder Logic Explicit Messaging Program for Write Single
Three COP (Copy) instructions are required to convert the 16-bit integer
data table addresses N50:0 (Least Significant Word) and N50:1 (Most
Significant Word) to a 32-bit REAL (floating point) data table address
F103:0 for correct presentation. The first COP instruction correctly
writes the 32-bit REAL (floating point) value. The second and third
COP instructions swap the LSW and MSW.
