Resetting the Adapter
Changes to switch settings and some adapter parameters require that
you reset the adapter before the new settings take effect. You can reset
the adapter by cycling power to the drive or by using the HIM’s Reset
Device function located in the drive’s DIAGNOSTIC folder.
Restoring Adapter
Parameters to Factory
Defaults
Adapter parameters can be restored in two ways:
• ALL—restores ALL adapter parameters to their factory default
values.
• MOST—restores MOST adapter parameters—except the following
which are used for network setup:
– Parameter 36 - [BOOTP]
– Parameters 38 through 41 - [IP Addr Cfg 1-4]
– Parameters 42 through 45 - [Subnet Cfg 1-4]
– Parameters 46 through 49 - [Gateway Cfg 1-4]
– Parameter 50 - [Net Rate Cfg]
To restore adapter parameters to their factory default values:
1. Access the Status screen, which is displayed on HIM power up.

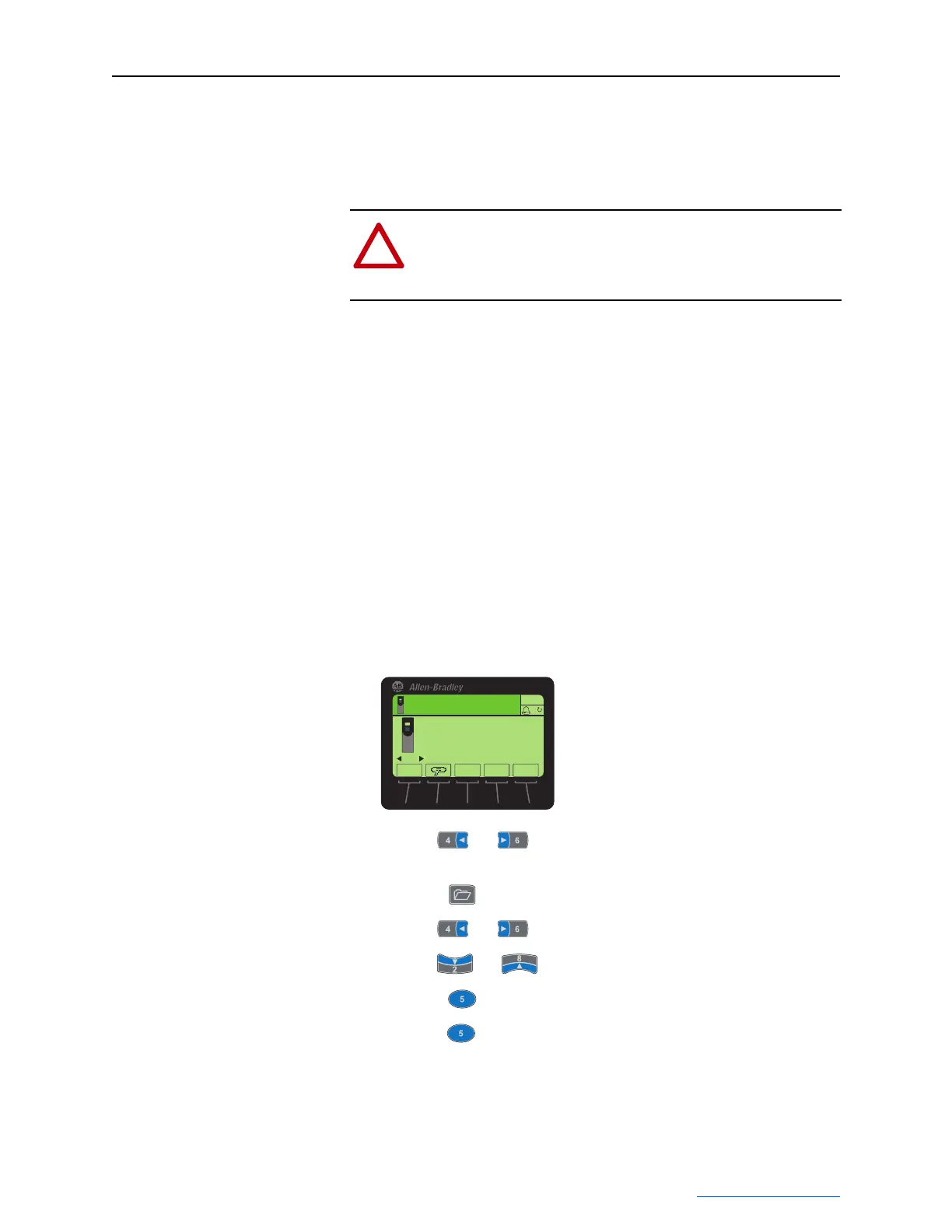

Figure 3.19 Status Screen
2. Use the or key to scroll to Port 13, which is the port
always dedicated to the embedded EtherNet/IP adapter.
3. Press the key to display its last-viewed folder.
4. Use the or key to scroll to the MEMORY folder.
5. Use the or key to select Set Defaults.
6. Press the (Enter) key to display the Set Defaults pop-up box.
7. Press the (Enter) key again to display the warning pop-up box
to reset parameters to their factory default values.
!
ATTENTION: Risk of injury or equipment damage exists. If
the adapter is transmitting control I/O to the drive, the drive
may fault when you reset the adapter. Determine how your
drive will respond before resetting the adapter.
00
Stopped
0.00 Hz
AUTO
Host Drive
240V 4.2A
Rev 3.002 Ser. A
ESC REF TEXT
F
PAR#
