Configuring the I/O 4-37
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
MicroLogix 1100 Example
Example Network
After the adapter is configured, the connected drive and adapter will be
a single node on the network. This section provides the steps needed to
configure a simple EtherNet/IP network (see Figure 4.41
). In our
example, we will configure a MicroLogix 1100 controller to
communicate with a drive using Logic Command/Status, Reference/
Feedback, and 32 Datalinks (16 to read/16 to write) over the network.

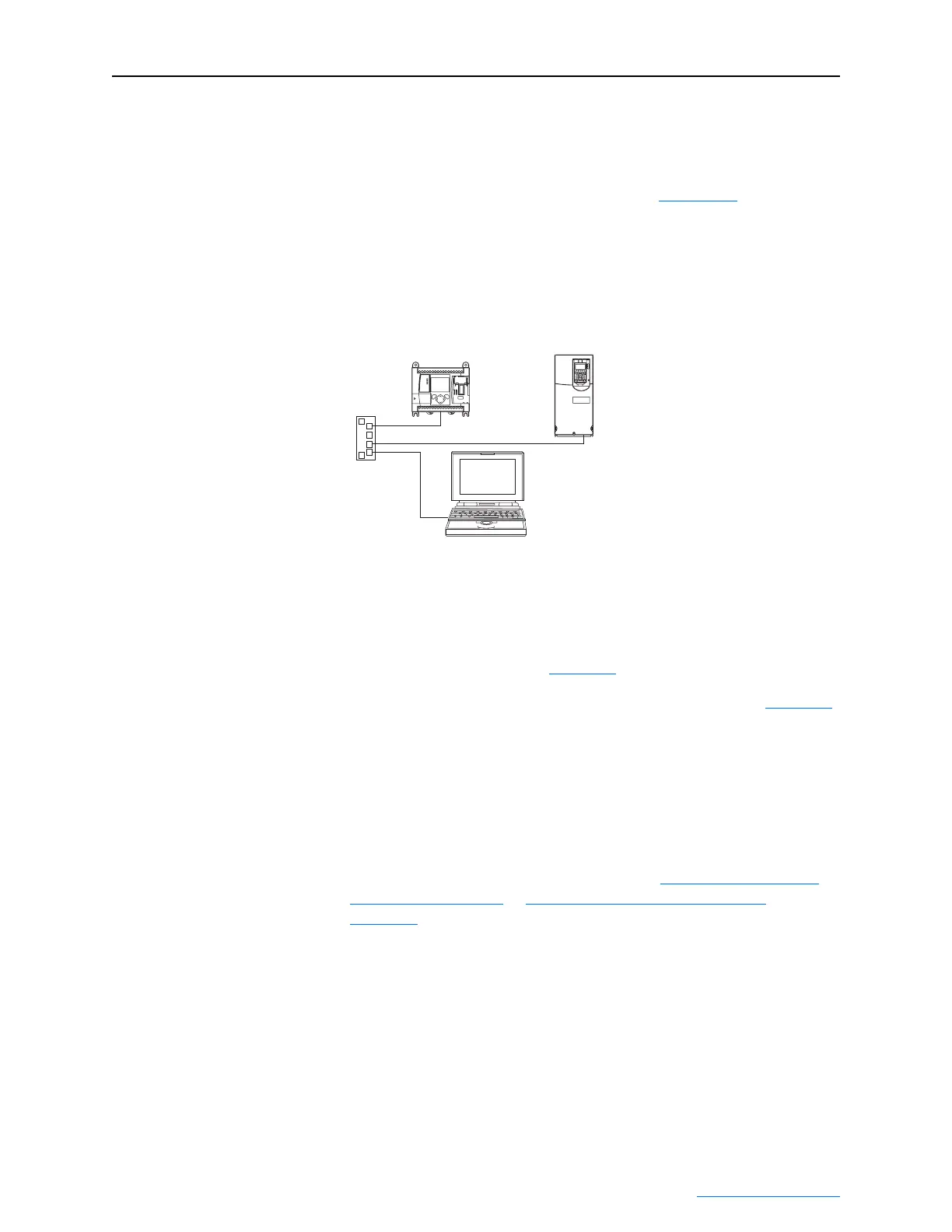

Figure 4.41 MicroLogix 1100 Example EtherNet/IP Network
Configuring Parameters for Network I/O
Since the I/O for the drive is message-based, there is no need to
configure any I/O inside the RSLogix 500 (v7 or higher) project until
using the I/O as described in Chapter 5
.
However, to get the adapter to operate with the I/O created in Chapter 5
,
we need to configure the adapter to accept the I/O and drive to point to
the appropriate Datalinks.
Since the adapter always uses the 32-bit Logic Status and 32-bit
Feedback, at least two 32-bit words must be accounted for in the
controller input image. The adapter also uses the 32-bit Logic
Command and 32-bit Reference, requiring at least two 32-bit words that
must be accounted for in the controller output image. If any or all of the
drive’s sixteen 32-bit Datalinks are used (see Setting a Master-Slave
Hierarchy on page 3-8 or Custom Peer I/O Configuration on
page 3-11):
• An additional 32-bit word for each [DL From Net xx] Datalink used
to write to drive or peripheral parameters must be accounted for in
the controller input image.
• An additional 32-bit word for each [DL To Net xx] Datalink used to
read data must be accounted for in the controller output image.
IP Address 10.91.100.80
MicroLogix 1100 Controller
IP Address 10.91.100.79
PowerFlex 755 Drive with
Embedded EtherNet/IP Adapter
Computer with
Ethernet Connection
