Digital modules

3.14 Digital input module SM 321; DI 16 x UC 24/48 V; (6ES7321-1CH00-0AA0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

105

3.14 Digital input module SM 321; DI 16 x UC 24/48 V;

(6ES7321-1CH00-0AA0)

Order number

6ES7321-1CH00-0AA0

Properties

Properties of SM 321; DI 16 x UC24/48 V:

● 16 inputs, electrically isolated

● Electrical isolation between channels of 120 V AC

● Rated input voltage 24 VDC/VAC to 48 VDC/VAC

● Inputs are autarkic and can be wired to suit any configuration

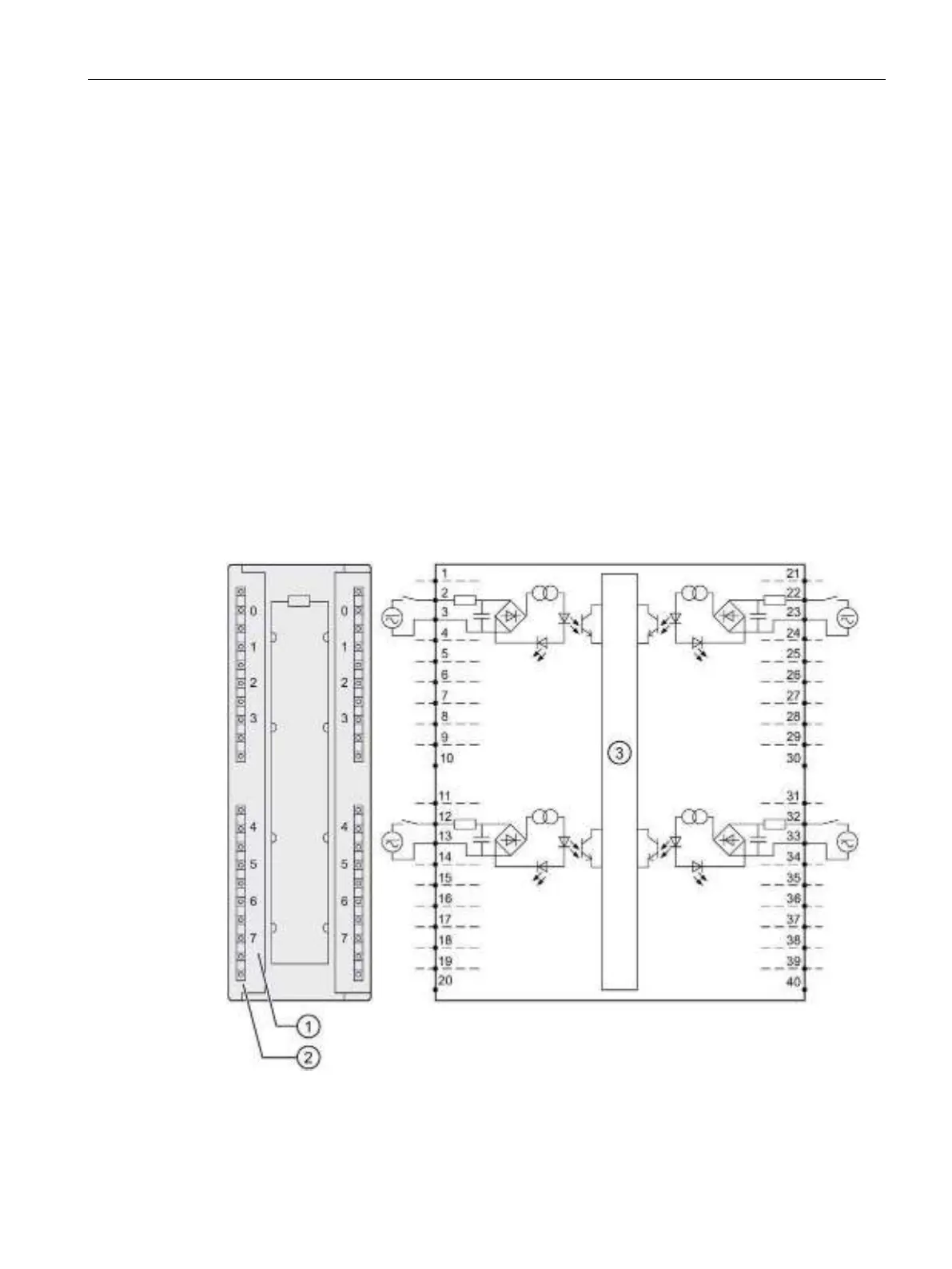

Wiring and block diagram of SM 321; DI 16 x UC 24/48 V

①

Channel number

②

Status display - green

③

Backplane bus interface
