Digital modules

3.6 Digital input module SM 321; DI 64 x DC 24 V, sinking/sourcing; (6ES7321-1BP00-0AA0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

3.6 Digital input module SM 321; DI 64 x DC 24 V, sinking/sourcing;

(6ES7321-1BP00-0AA0)

Order number

6ES7321-1BP00-0AA0

Properties

Properties of SM 321; DI 64 x DC 24 V, Sinking/Sourcing:

● 64 inputs, isolated in 4 groups of 16

● Rated input voltage 24 V DC

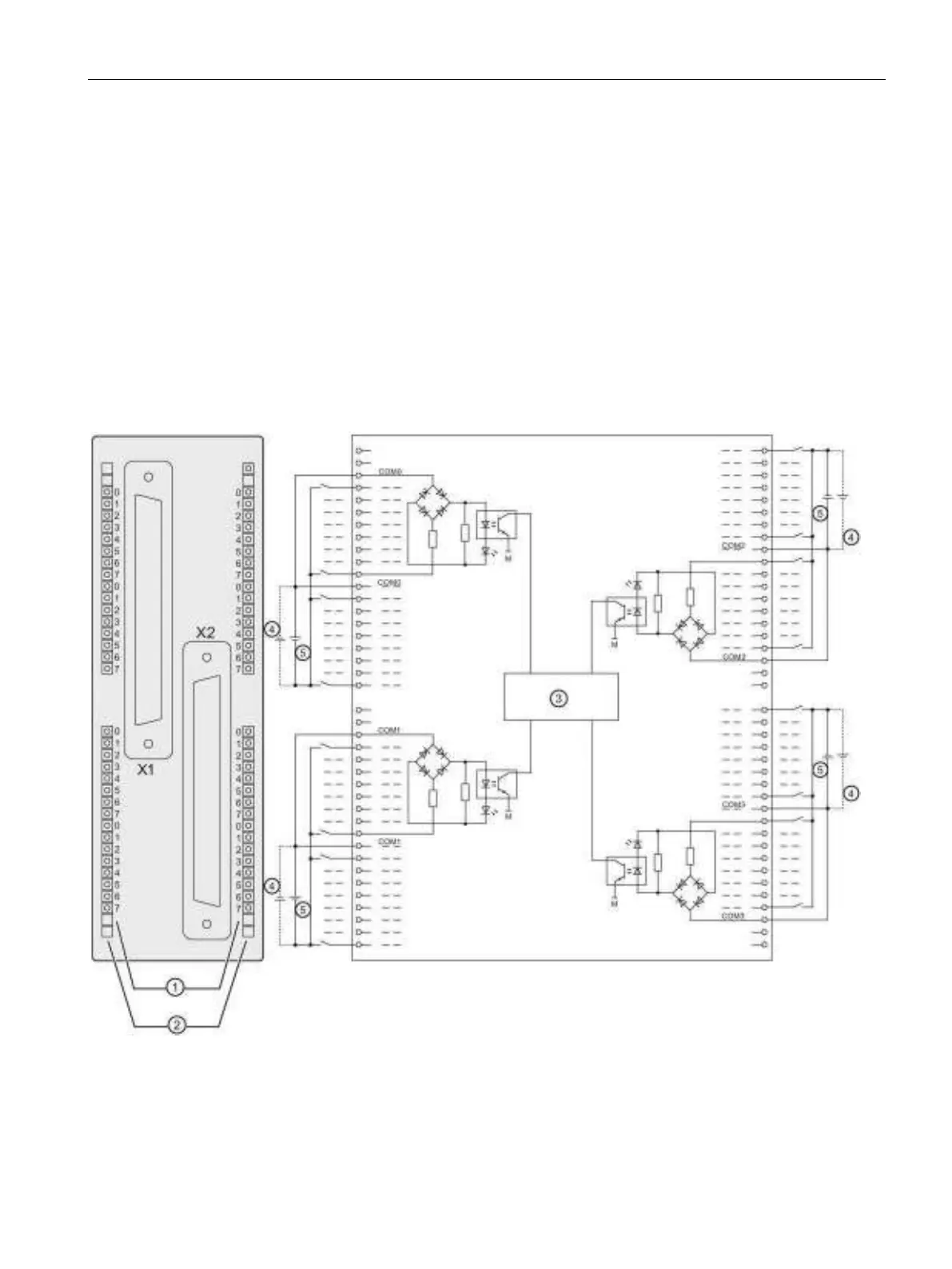

Wiring and block diagram of SM 321; DI 64 x DC 24 V, Sinking/Sourcing

①

Channel number

②

Status display - green

③

Backplane bus interface

④

Terminal for "sinking" operating mode

⑤

Terminal for "sourcing" operating mode
