Digital modules

3.7 Digital input module SM 321; DI 32 x DC 24 V; (6ES7321-1BL00-0AA0)

S7-300 Module data

70 Manual, 06/2017, A5E00105505-AJ

3.7 Digital input module SM 321; DI 32 x DC 24 V;

(6ES7321-1BL00-0AA0)

Order number: "Standard module"

6ES7321-1BL00-0AA0

Order number: "SIPLUS S7-300 module"

6AG1321-1BL00-2AA0

Properties

Properties of SM 321; DI 32 x DC 24 V:

● 32 inputs, isolated in groups of 16

● Rated input voltage 24 V DC

● Suitable for switches and 2-/3-/4-wire proximity switches (BEROs)

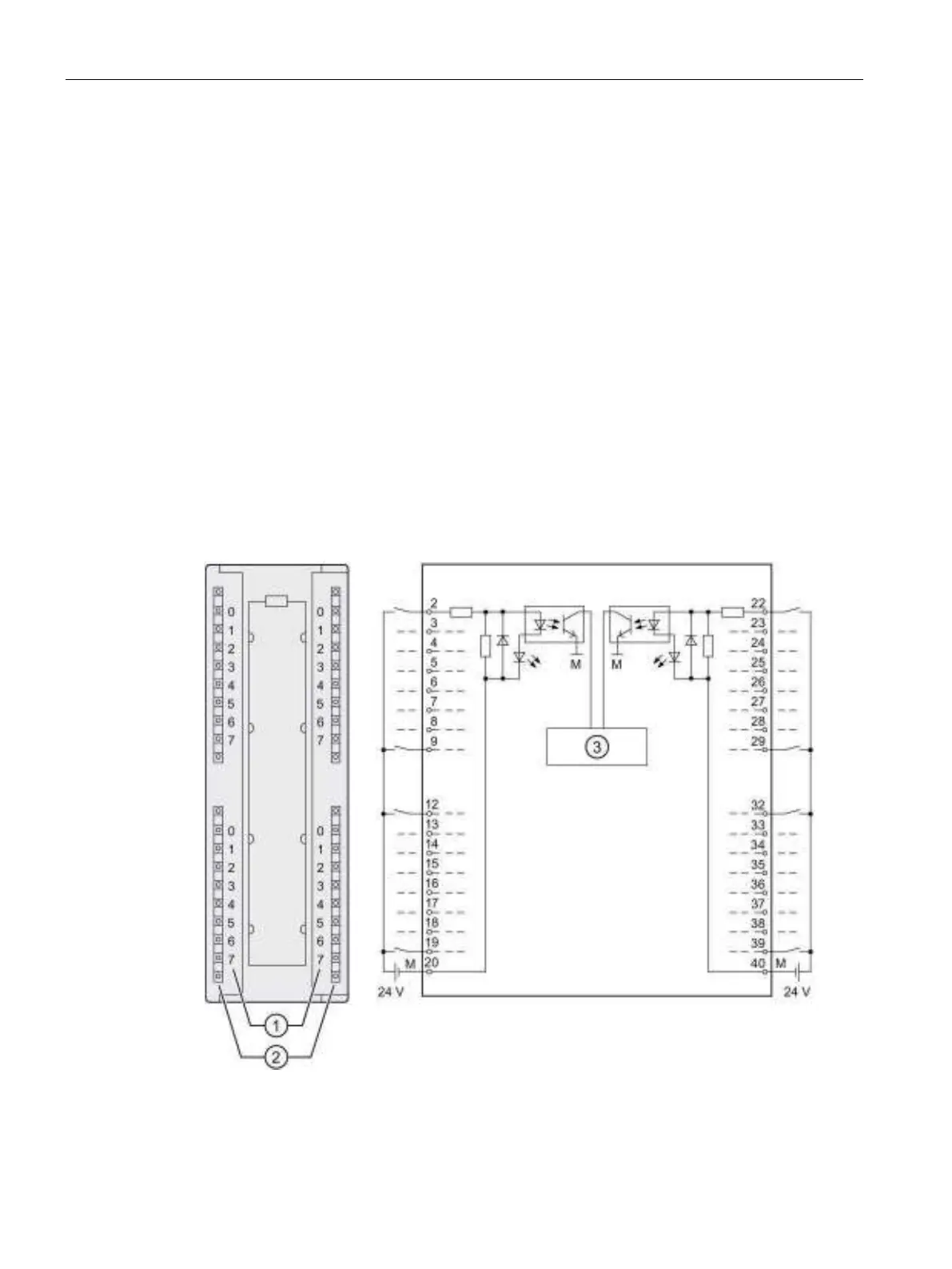

Wiring and block diagram of SM 321; DI 32 x DC 24 V

①

Channel number

②

Status display - green

③

Backplane bus interface
