Digital modules

3.16 Digital input module SM 321; DI 16 x AC 120/230 V; (6ES7321-1FH00-0AA0)

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

111

3.16 Digital input module SM 321; DI 16 x AC 120/230 V;

(6ES7321-1FH00-0AA0)

Order number

6ES7321-1FH00-0AA0

Properties

Properties of SM 321, DI 16 x AC 120/230 V:

● 16 inputs, electrically isolated in groups of 4

● Rated input voltage 120/230 VAC

● Suitable for switches and 2-/3-wire proximity switches (AC)

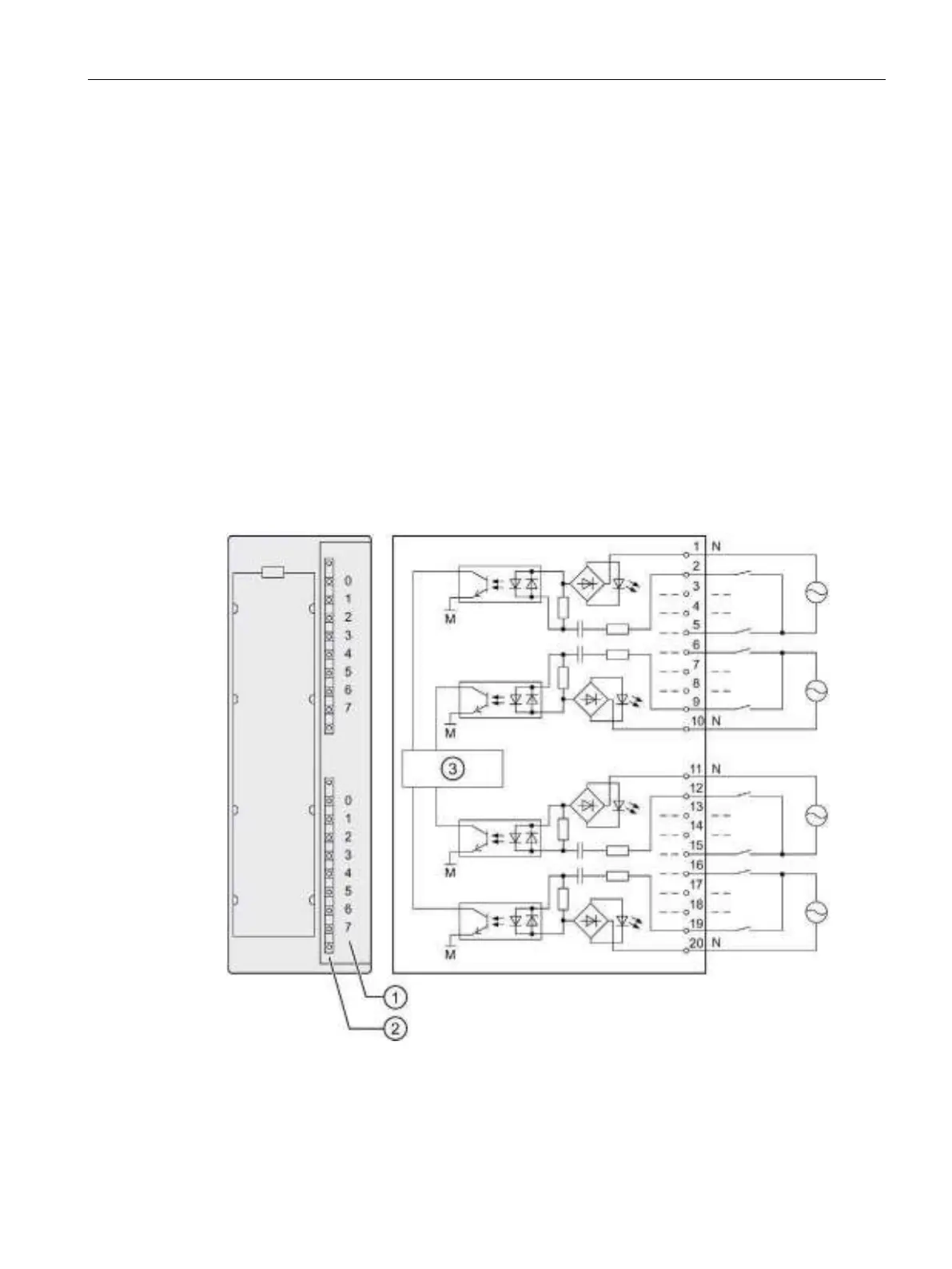

Wiring and block diagrams of SM 321; DI 16 x AC 120/230 V

①

Channel number

②

Status display - green

③

Backplane bus interface
