Digital modules

3.17 Digital input module SM 321; DI 8 x AC 120/230 V; (6ES7321-1FF01-0AA0)

S7-300 Module data

114 Manual, 06/2017, A5E00105505-AJ

3.17 Digital input module SM 321; DI 8 x AC 120/230 V;

(6ES7321-1FF01-0AA0)

Order number: "Standard module"

6ES7321-1FF01-0AA0

Order number: "SIPLUS S7-300 module"

6AG1321-1FF01-2AA0

Properties

Properties of SM 321, DI 8 x AC 120/230 V:

● 8 inputs, electrically isolated in groups of 2

● Rated input voltage 120/230 VAC

● suitable for switches and 2-/3-wire AC proximity switches

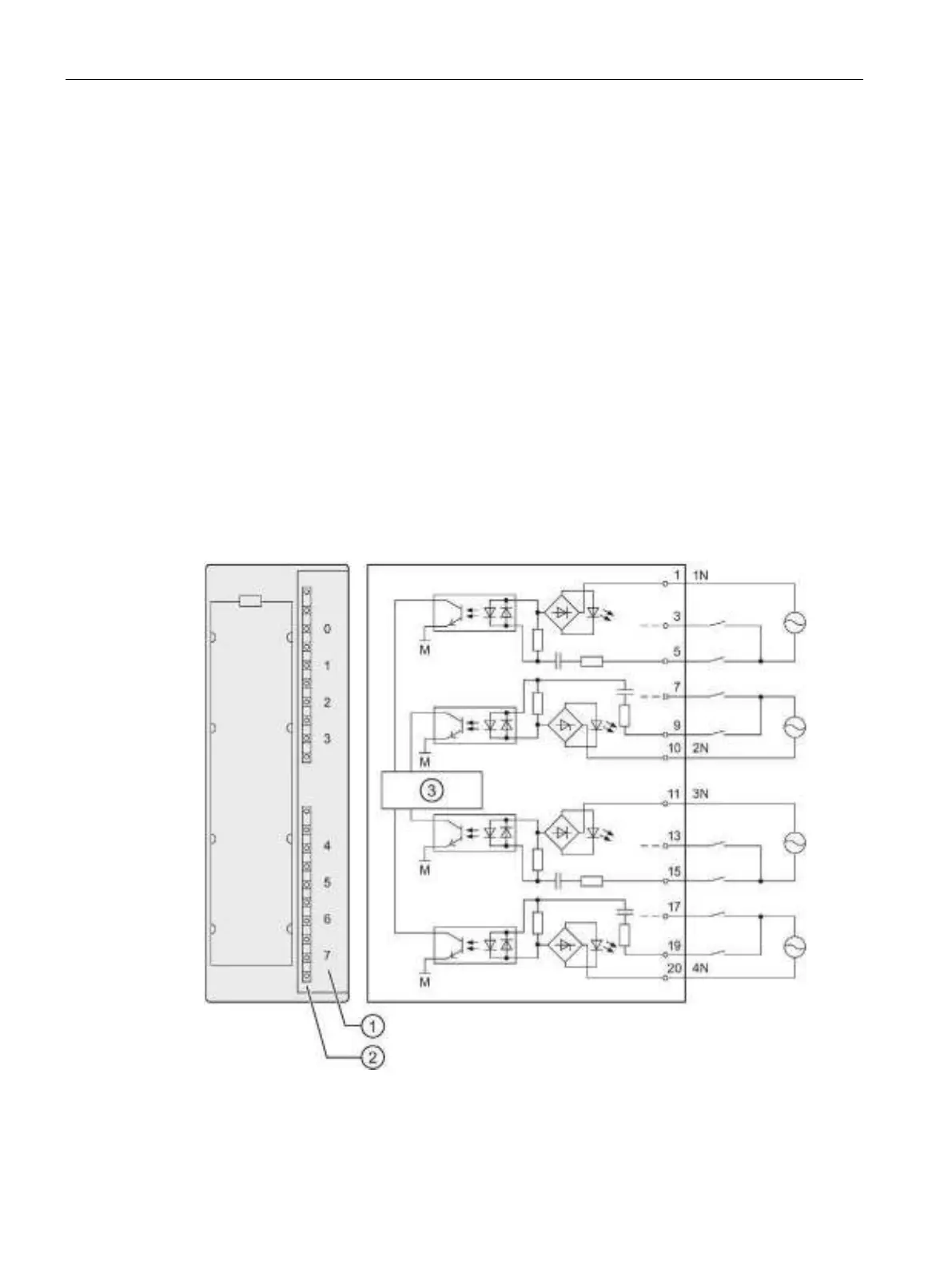

Wiring and block diagram of SM 321; DI 8 x AC 120/230 V

①

Channel number

②

Status display - green

③

Backplane bus interface
