Principles of analog value processing
4.7 Wiring and connecting loads/actuators to analog outputs
S7-300 Module data
260 Manual, 06/2017, A5E00105505-AJ
4.7.2 Wiring and connecting loads/actuators to current outputs
Wiring and connecting loads to a current output
Wire and connect the loads to Q
I
and to the reference point of analog circuit M
ANA
of a
current output.

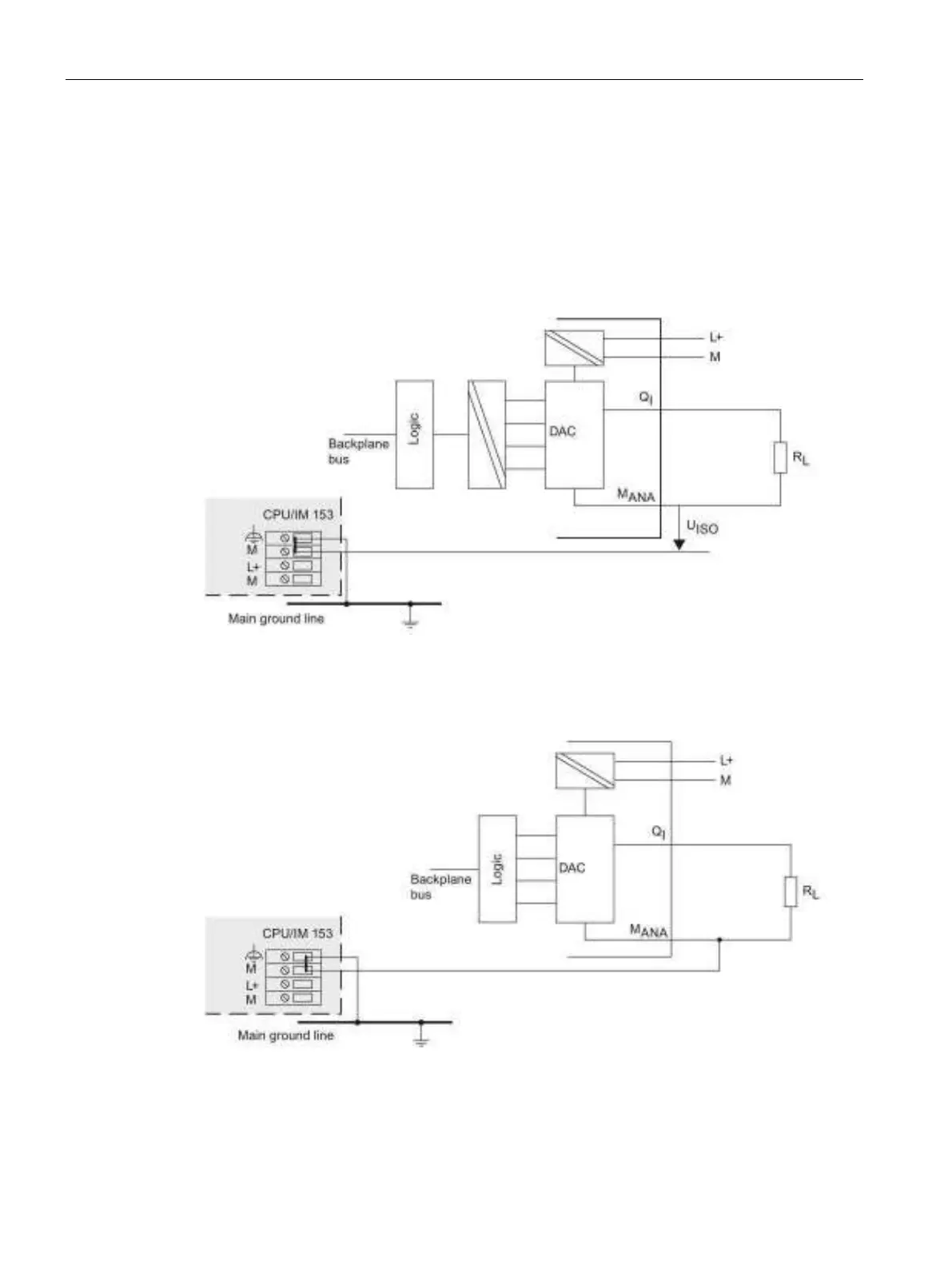

Wiring and connecting loads to a current output of an electrically isolated module
Figure 4-19 Wiring and connecting loads to a current output of an electrically isolated analog output
module
Wiring and connecting loads to a current output of a non-isolated analog output module
Figure 4-20 Wiring and connecting loads to a current output of a non-isolated analog output module
See also
Wiring and connecting loads/actuators to analog outputs (Page 257)
