Digital modules

3.15 Digital input module SM 321; DI 16 x DC 48-125 V; (6ES7321-1CH20-0AA0)

S7-300 Module data

108 Manual, 06/2017, A5E00105505-AJ

3.15 Digital input module SM 321; DI 16 x DC 48-125 V;

(6ES7321-1CH20-0AA0)

Order number: "Standard module"

6ES7321-1CH20-0AA0

Order number: "SIPLUS S7-300 module"

6AG1321-1CH20-2AA0

Properties

Properties of SM 321; DI 16 x DC 48-125 V:

● 16 inputs, electrically isolated in groups of 8

● Rated input voltage 48 VDC to 125 VDC

● suitable for switches and 2- /3-/4-wire proximity switches (BEROs)

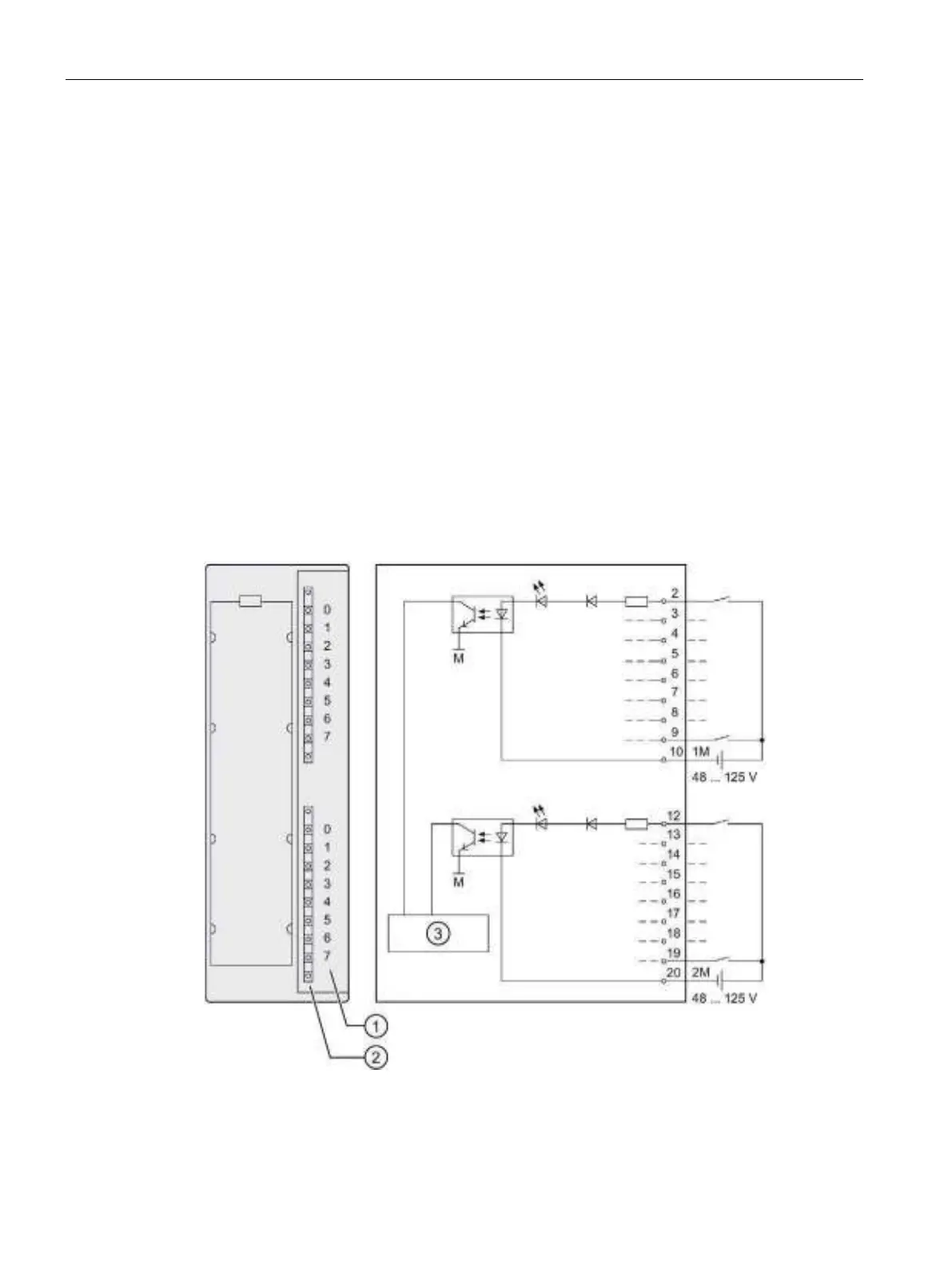

Wiring and block diagram of SM 321; DI 16 x DC 48-125 V

①

Channel number

②

Status display - green

③

Backplane bus interface
