Digital modules

3.20 Digital output module SM 322; DO 64 x DC 24 V/0.3 A Sinking (6ES7322-1BP50-0AA0)

S7-300 Module data

128 Manual, 06/2017, A5E00105505-AJ

3.20 Digital output module SM 322; DO 64 x DC 24 V/0.3 A Sinking

(6ES7322-1BP50-0AA0)

Order number

6ES7322-1BP50-0AA0

Properties

Characteristics of the SM 322; DO 64 x DC 24 V, 0,3 A Sinking digital output module:

● 64 outputs, isolated in 4 groups of 16

● Rated load voltage 24 V DC

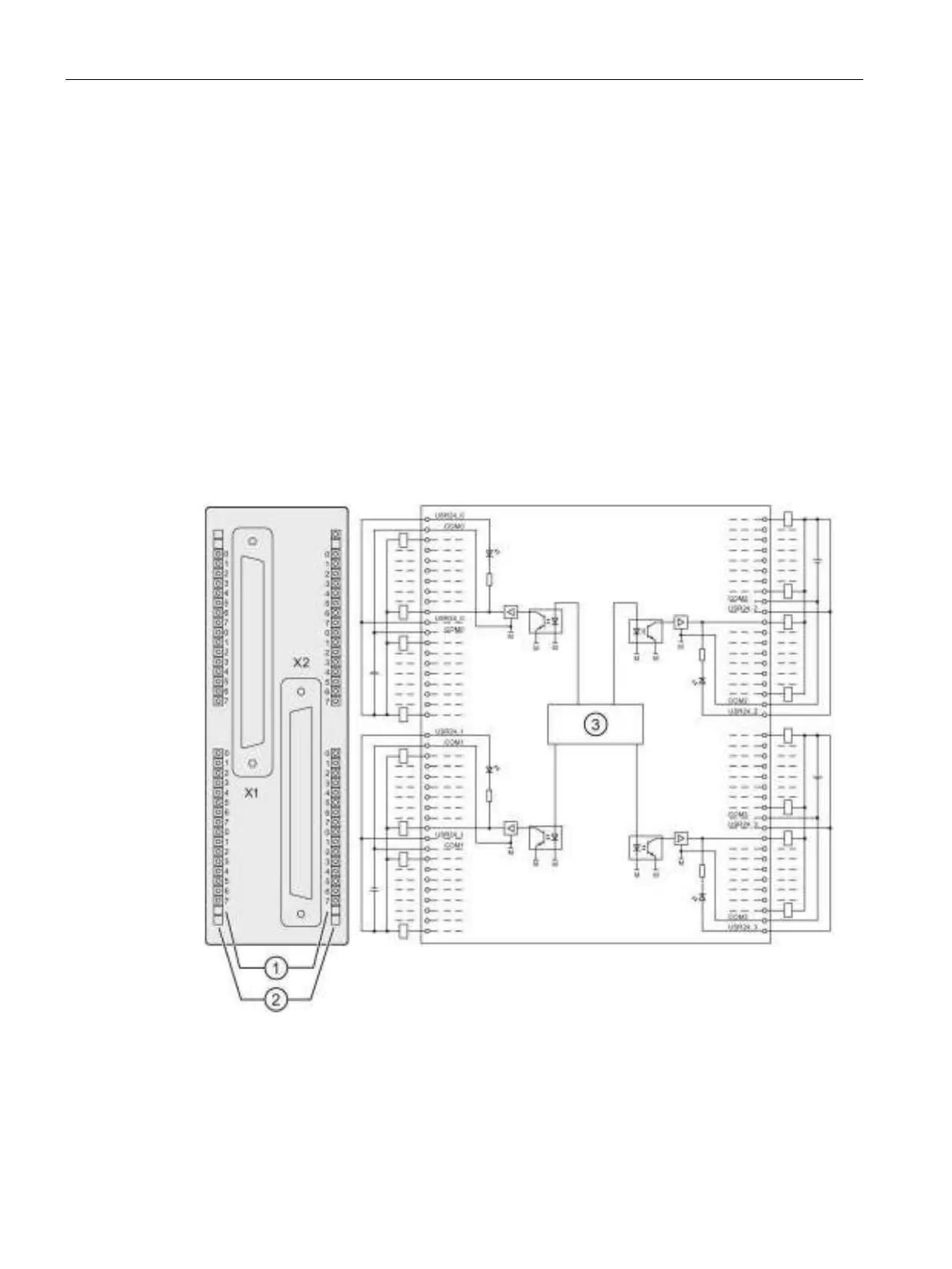

Wiring and block diagram of SM 322; DO 64 x DC 24 V, 0,3 A Sinking

①

Channel number

②

Status display - green

③

Backplane bus interface
