Dimensional drawings

C.1 Dimensional drawings of the mounting rails

S7-300 Module data

Manual, 06/2017, A5E00105505-AJ

599

C.1 Dimensional drawings of the mounting rails

Standard mounting rail 483 mm

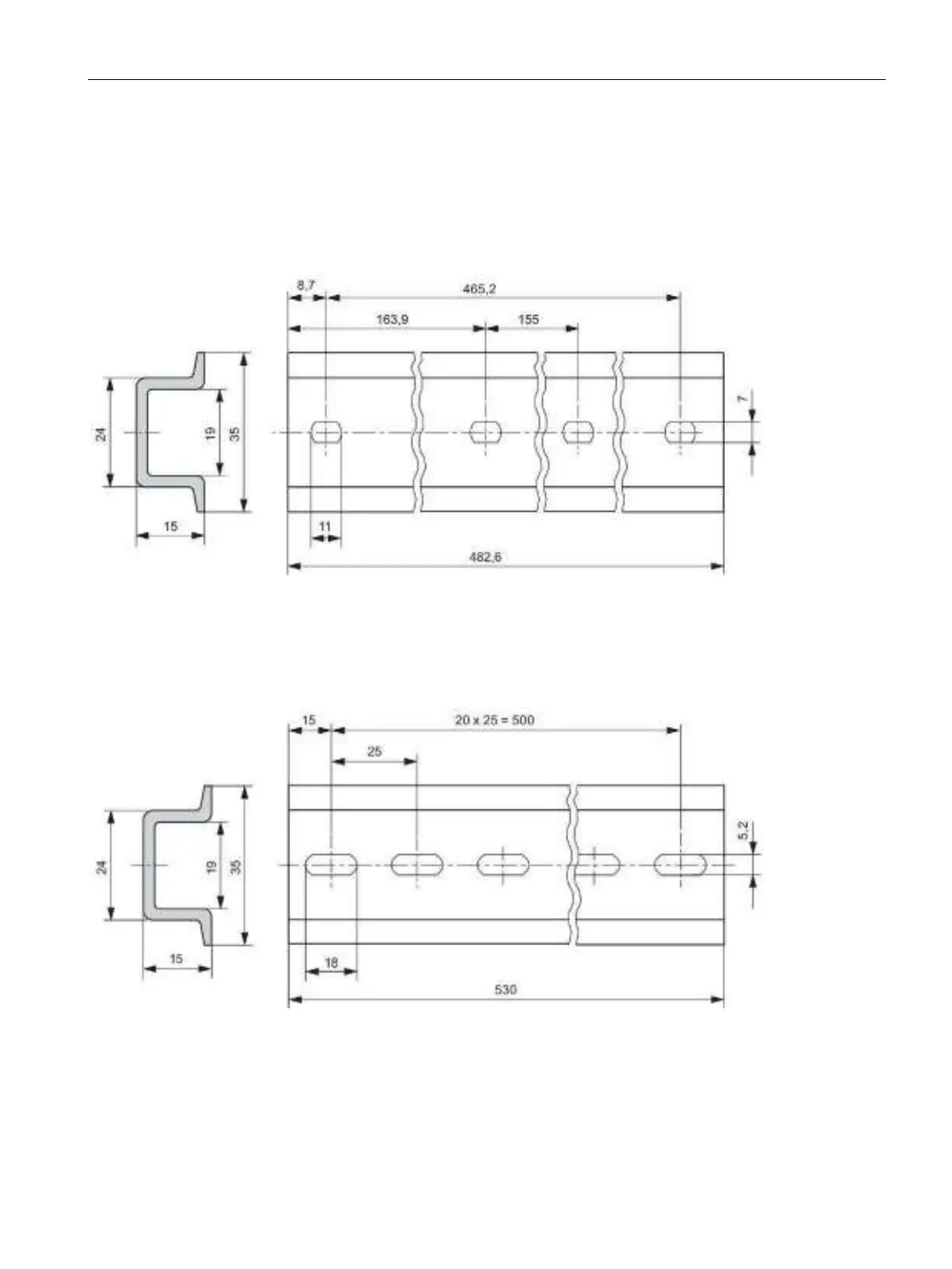

The figure below shows the dimensional drawing of the 483 mm standard rail.

Figure C-1 Dimensional drawing of the 483 mm standard rail

Standard mounting rail 530 mm

The figure below shows the dimensional drawing of the 530 mm standard rail.

Figure C-2 Dimensional drawing of the 530 mm standard rail
