Suzuki Boulevard M50 User Manual

1-4 GENERAL INFORMATION
SUZUKI VZ800K5 (’05-MODEL)

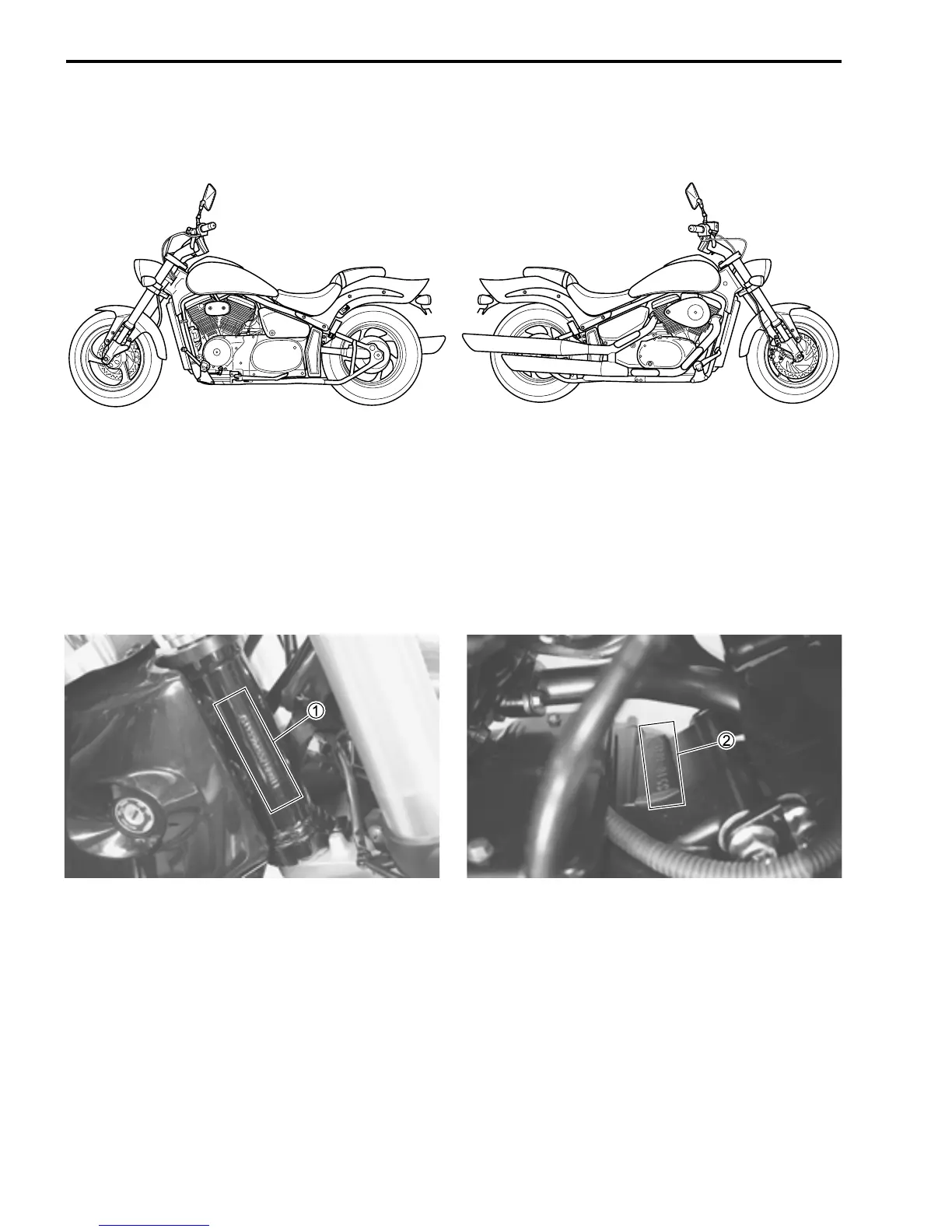

RIGHT SIDE LEFT SIDE
* Difference between illustration and actual motorcycle may exist depending on the markets.
SERIAL NUMBER LOCATION
The frame serial number or V.I.N. (Vehicle Identification Number) 1 is stamped on the right side of the
steering head pipe. The engine serial number 2 is located on the right side of the crankcase. These num-
bers are required especially for registering the machine and ordering spare parts.
FUEL, OIL AND ENGINE COOLANT RECOMMENDATION
FUEL (FOR USA AND CANADA)
Use only unleaded gasoline of at least 87 pump octane (R/2 + M/2) or 91 octane or higher rated by the
research method.
Gasoline containing MTBE (Methyl Tertiary Butyl Ether), less than 10% ethanol, or less than 5% methanol
with appropriate cosolvents and corrosion inhibitor is permissible.
FUEL (FOR OTHER COUNTRIES)
Gasoline used should be graded 91 octane (Research Method) or higher. Unleaded gasoline is recom-
mended.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
