CHASSIS 8-59

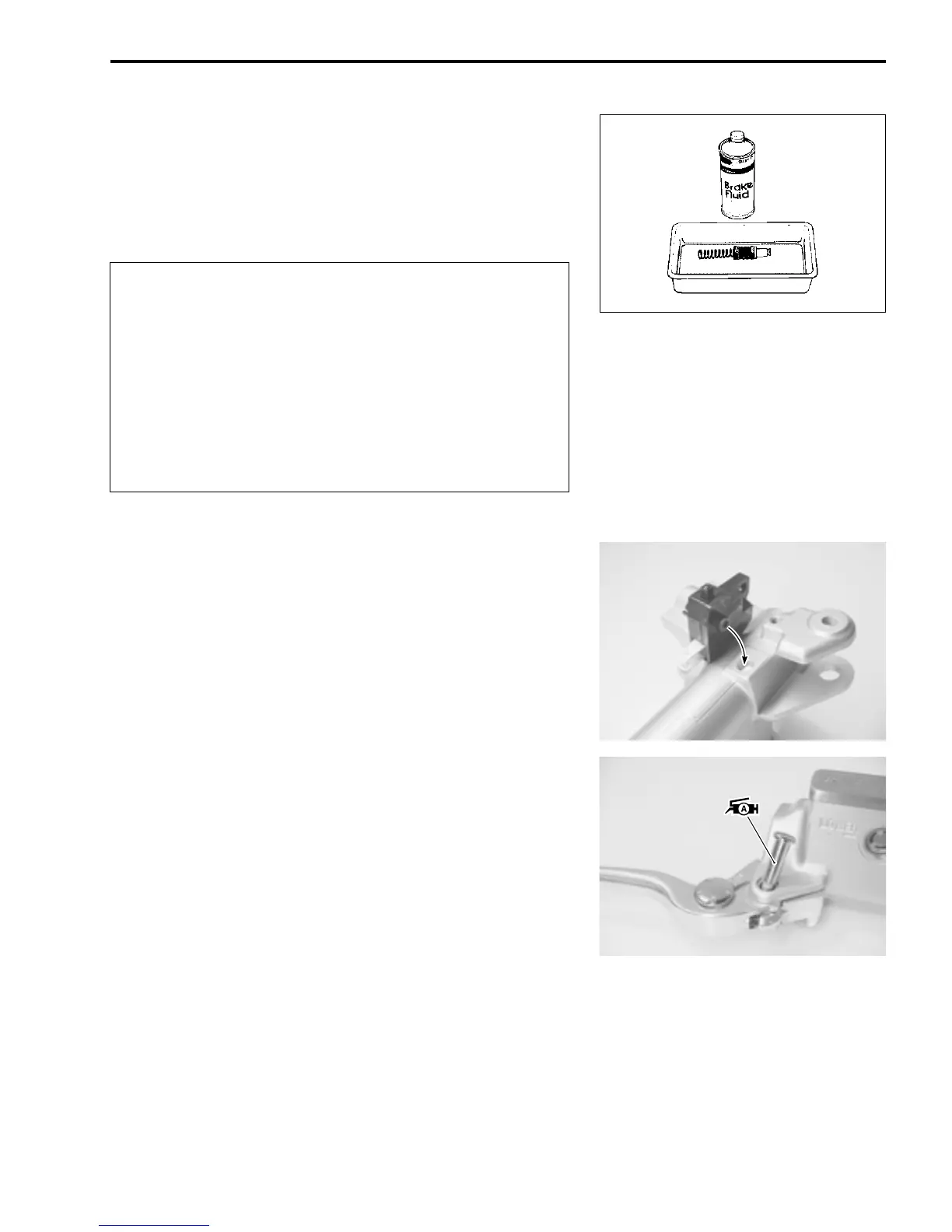

MASTER CYLINDER REASSEMBLY AND
REMOUNTING
Reassemble and remount the master cylinder in the reverse
order of removal and disassembly. Pay special attention to the
following points:

 Specification and classification: DOT 4
• When installing the brake light switch, align the projection on
the switch with the hole in the master cylinder.
• Apply SUZUKI SUPER GREASE “A” to the bolt.
 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
* Wash the master cylinder components with new
brake fluid before reassembly.
* Do not wipe the brake fluid off after washing the
components.
* When washing the components, use the specified
brake fluid. Never use different types of fluid or
cleaning solvents such as gasoline, kerosine, etc.
* Apply brake fluid to the master cylinder bore and all
of the master cylinder components before reassem-
bly.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
