8-62 CHASSIS

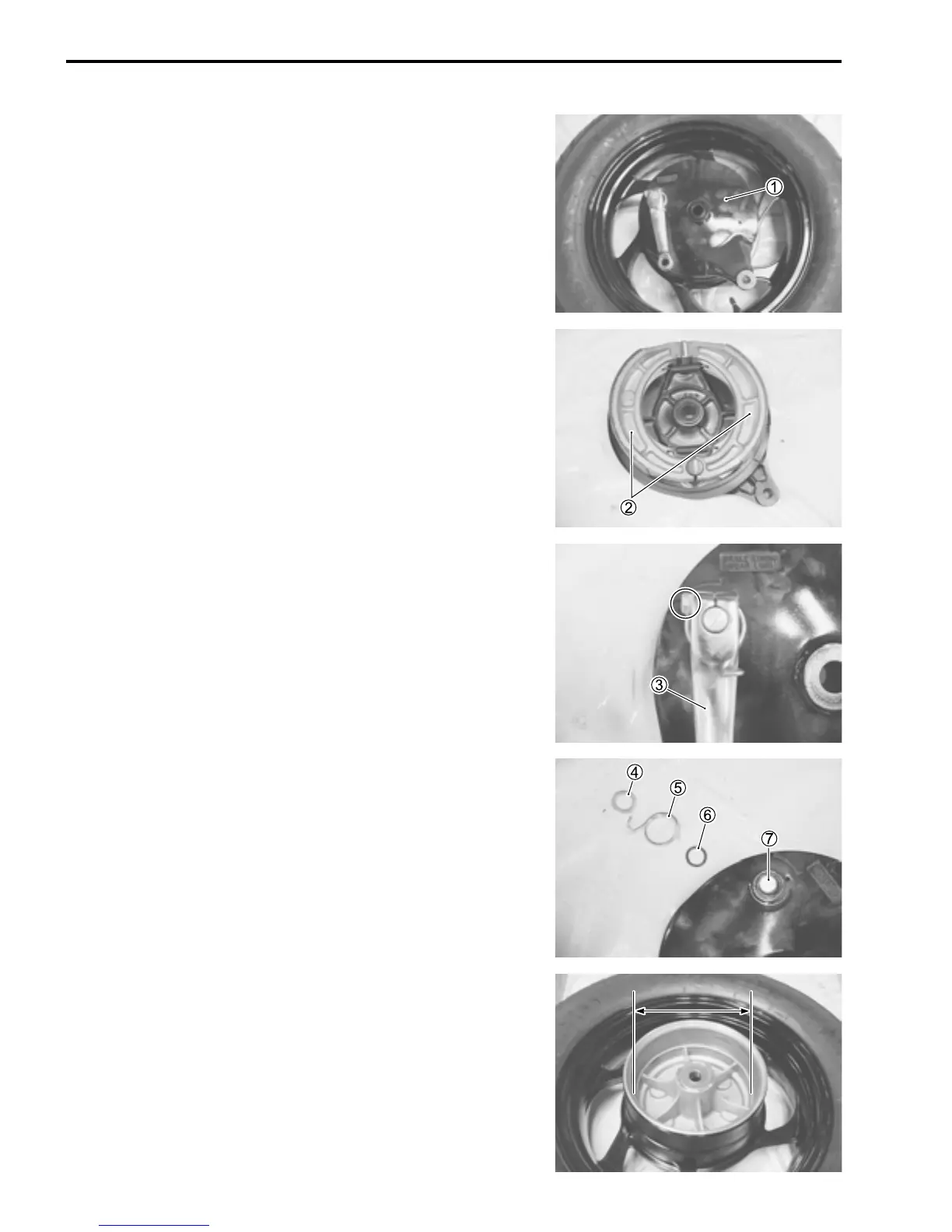

REMOVAL AND DISASSEMBLY
• Remove the rear wheel. (8-33)
• Remove the rear brake panel 1.
• Remove the brake shoes 2.
• Remove the rear brake cam lever 3 by removing bolt.
• Remove the washer 4, spring 5 and O-ring 6.
• Remove the rear brake cam 7.
INSPECTION
BRAKE DRUM
Inspect the brake drum and measure the brake drum I.D. to
determine the extent of wear. Replace the brake drum if the
measurement exceeds the service limit. The value of this limit is
indicated inside the brake drum.
 09900-20102: Vernier calipers
 Brake drum I.D.
Service Limit: 180.7 mm
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
