SHAFT DRIVE 4-25
FINAL GEAR CASE INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Refer to the following pages for the details of each step.

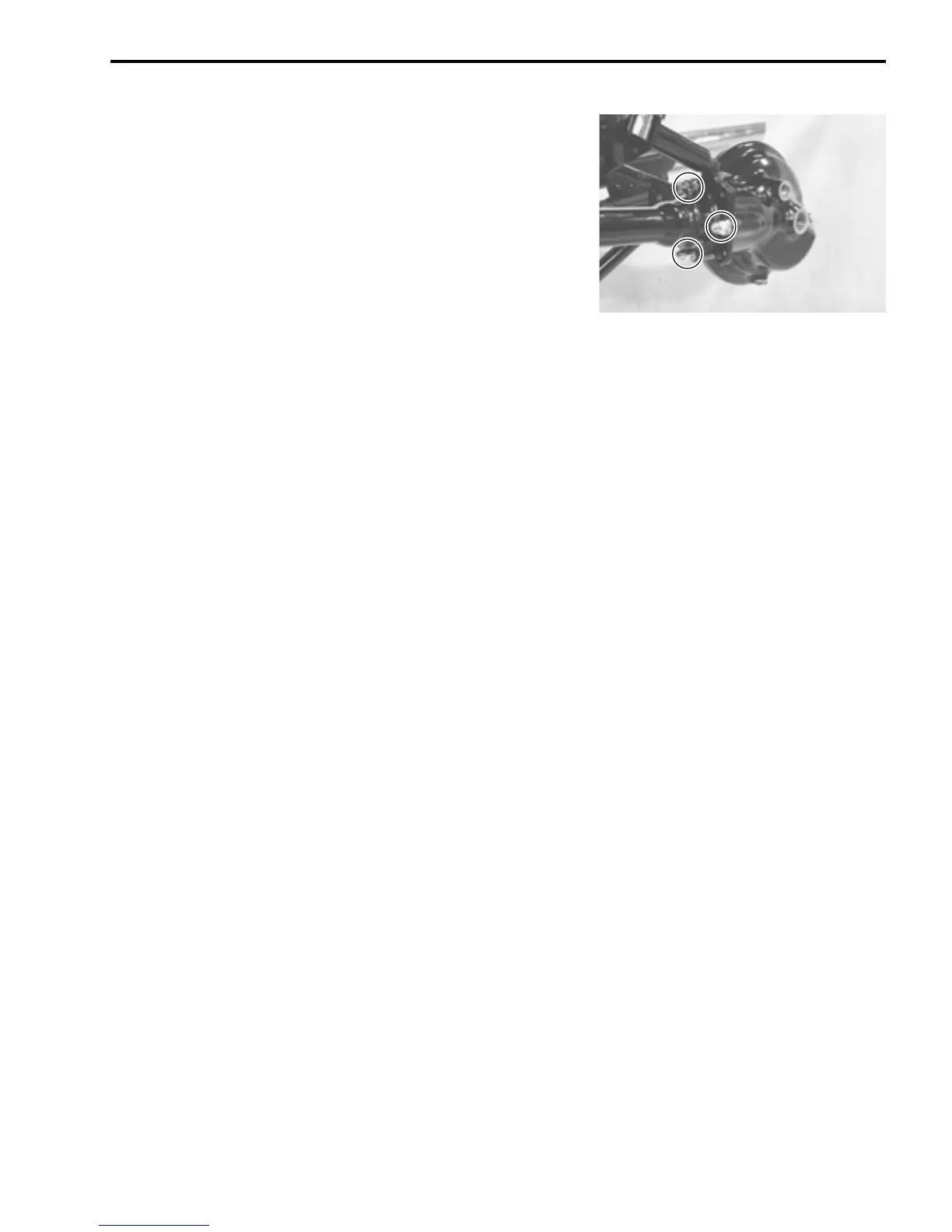

• Install the final gear case.
• Tighten the final gear case bolts to the specified torque.
 Final gear case nut: 40 N·m (4.0 kgf-m, 29.0 lb-ft)
• Install the rear wheel. (8-37)
• Pour final gear oil. (2-19)
