CHASSIS 8-63
BRAKE SHOES
Check the brake shoe wear (2-21) and decide whether it
should be replaced or not.


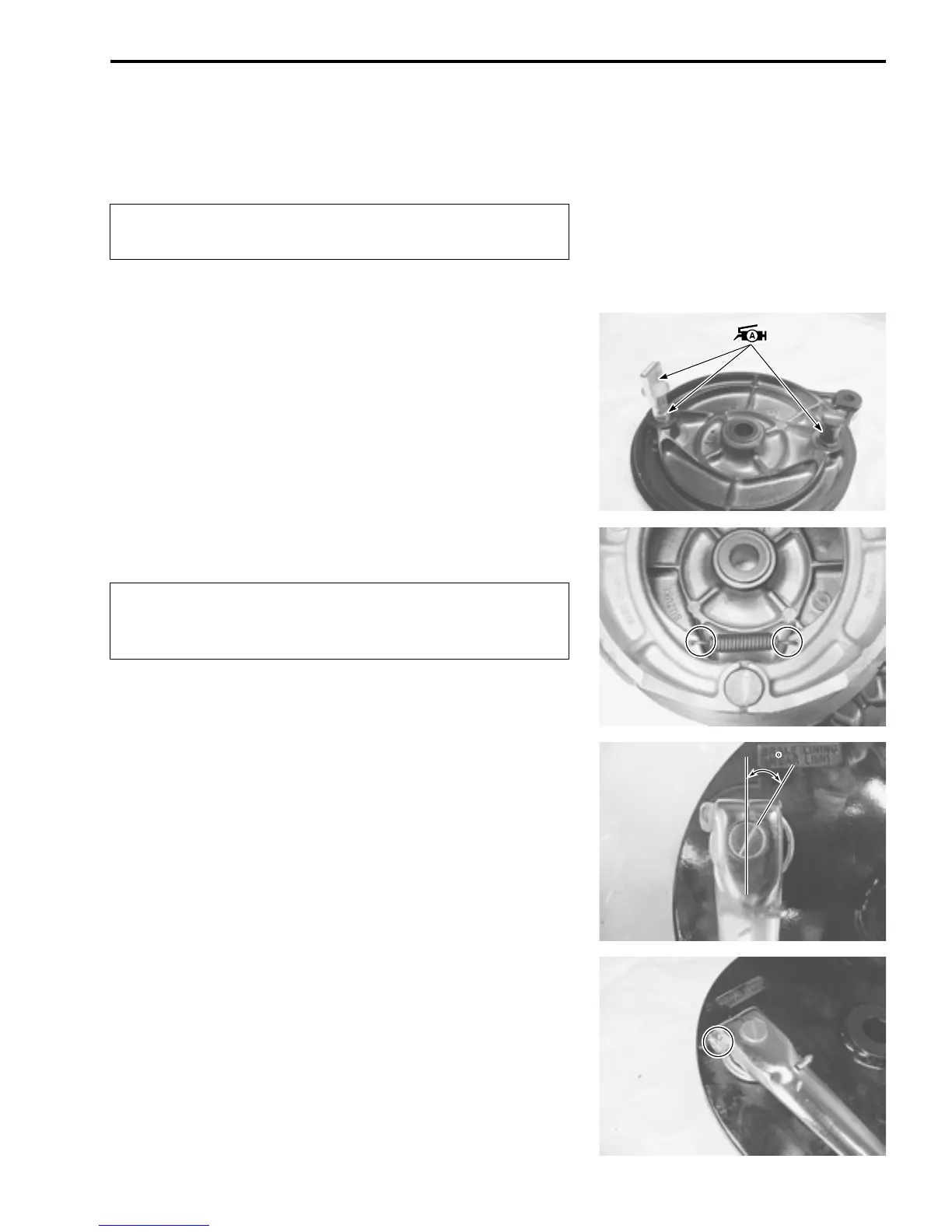

REASSEMBLY AND REMOUNTING
BRAKE CAMSHAFT
• When installing the brake camshaft, apply SUZUKI SUPER
GREASE “A” to the camshaft and cam face.
 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Install the brake shoes with spring hooks faced inside.

BRAKE CAM LEVER
• Install the new O-ring and washer.
• Install the brake cam lever to the brake camshaft as shown.
• Tighten the brake cam lever bolt to the specified torque.
 Brake cam lever bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
• Install the rear wheel. (8-37)
• Adjust the rear brake pedal free travel. (2-21)
Replace the brake shoes as a set, otherwise braking
performance will be adversely affected.
Be careful not to apply too much grease to the cam
and pin. If grease gets on the lining, brake slippage
will result.
31
31
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
