8-12 CHASSIS
FRONT FORK

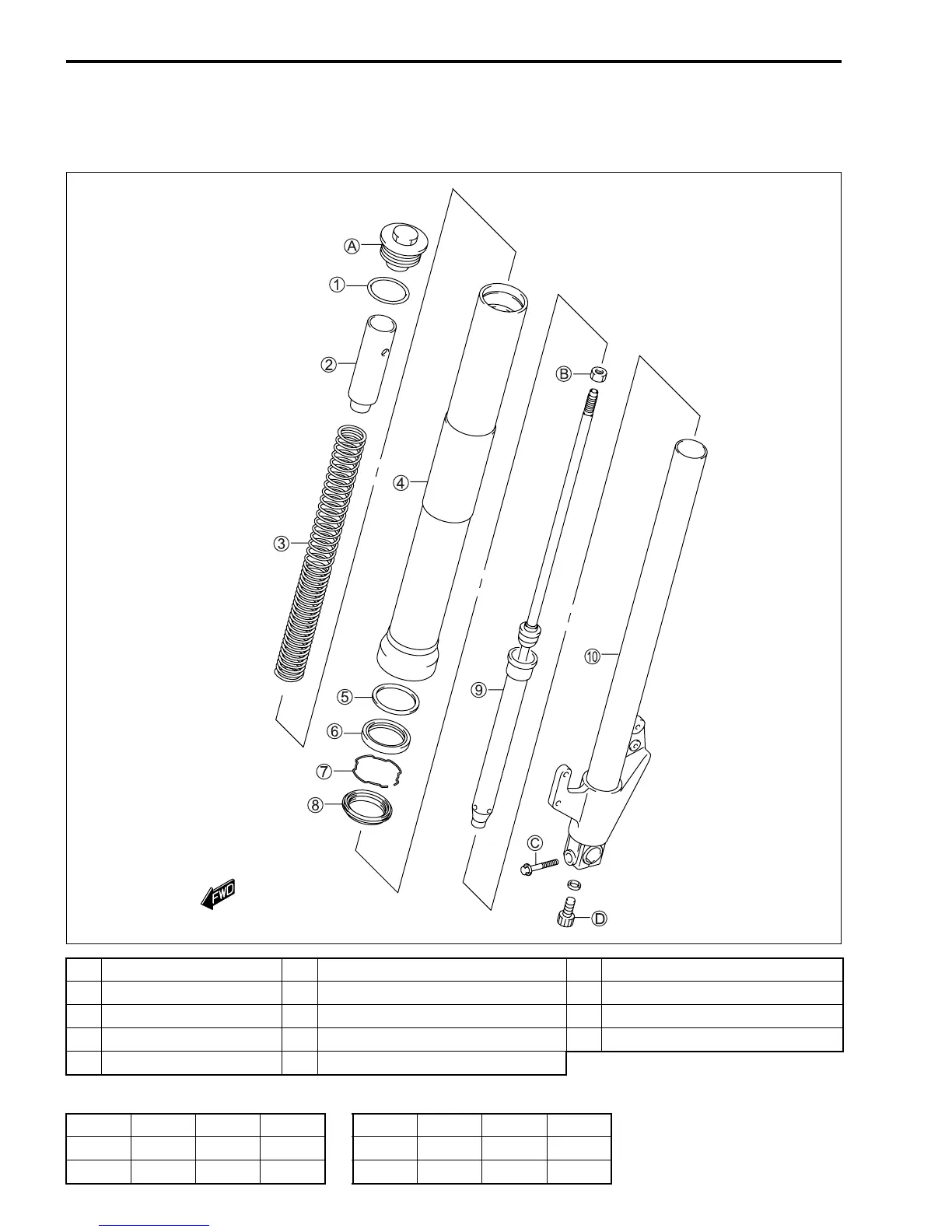

CONSTRUCTION

1 O-ring 6 Oil seal A Front fork cap bolt
2 Spacer 7 Oil seal stopper ring B Inner rod lock-nut
3 Spring 8 Dust seal C Front axle pinch bolt
4 Outer tube 9 Inner rod/Damper rod (cartridge) D Caliper rod bolt
5 Oil seal retainer 0 Inner tube
ITEM N·m kgf-m lb-ft ITEM N·m kgf-m lb-ft
A 23 2.3 16.5 C 33 3.3 24.0
B 15 1.5 11.0 D 39 3.9 28.0
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
