8-64 CHASSIS
REAR BRAKE ROD

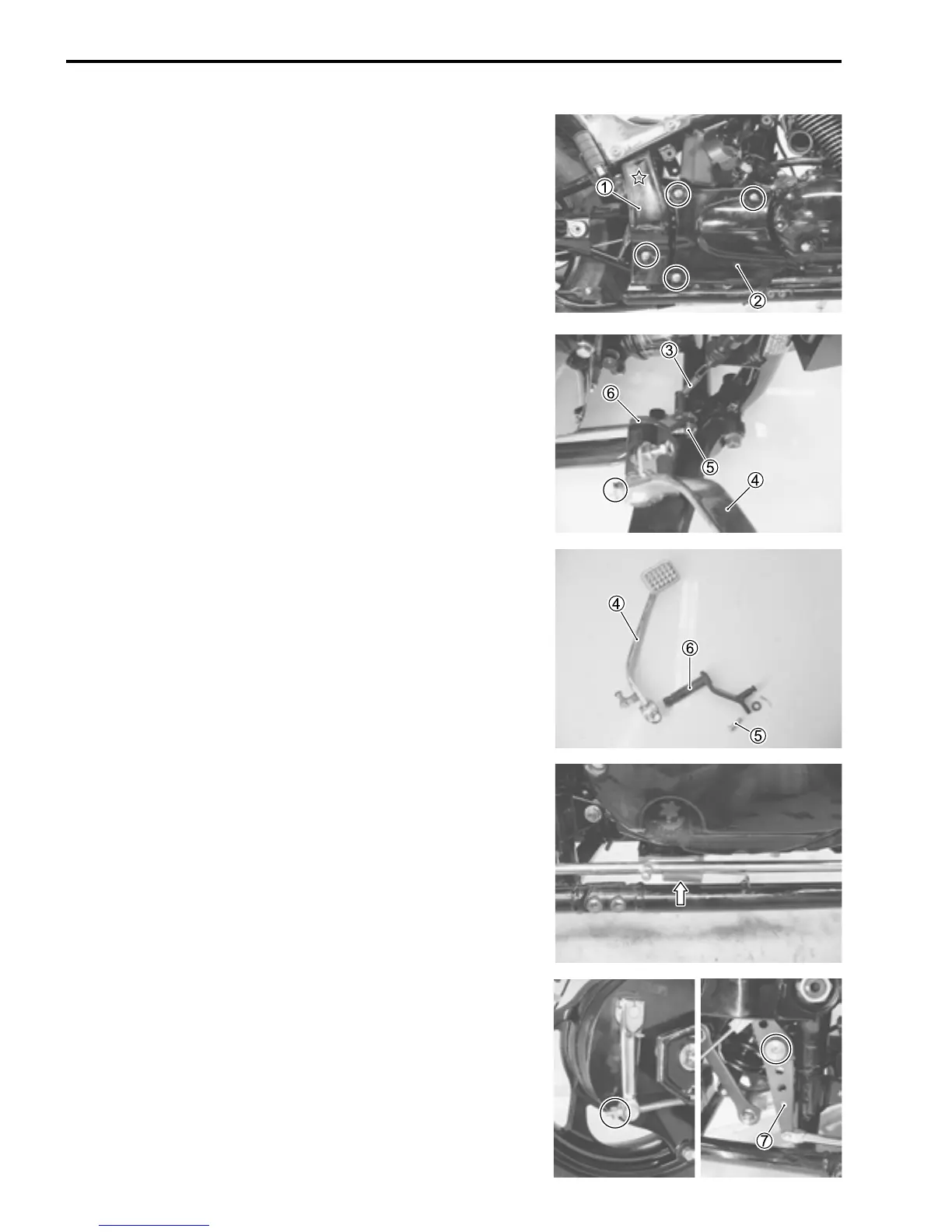

REMOVAL AND DISASSEMBLY
• Remove the exhaust pipes and mufflers assembly. (3-6)
• Remove the right frame lower cover 1, clutch rear cover 2.
: Hooked part
• Remove the rear brake switch spring 3.
• Remove the rear brake pedal 4.
• Remove the cotter pin 5.
• Remove the rear brake pedal shaft 6.
• Remove the return spring.
• Remove the rear brake adjust nut, spring and washer.
• Remove the rear brake link 7.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
