Suzuki Boulevard M50 User Manual

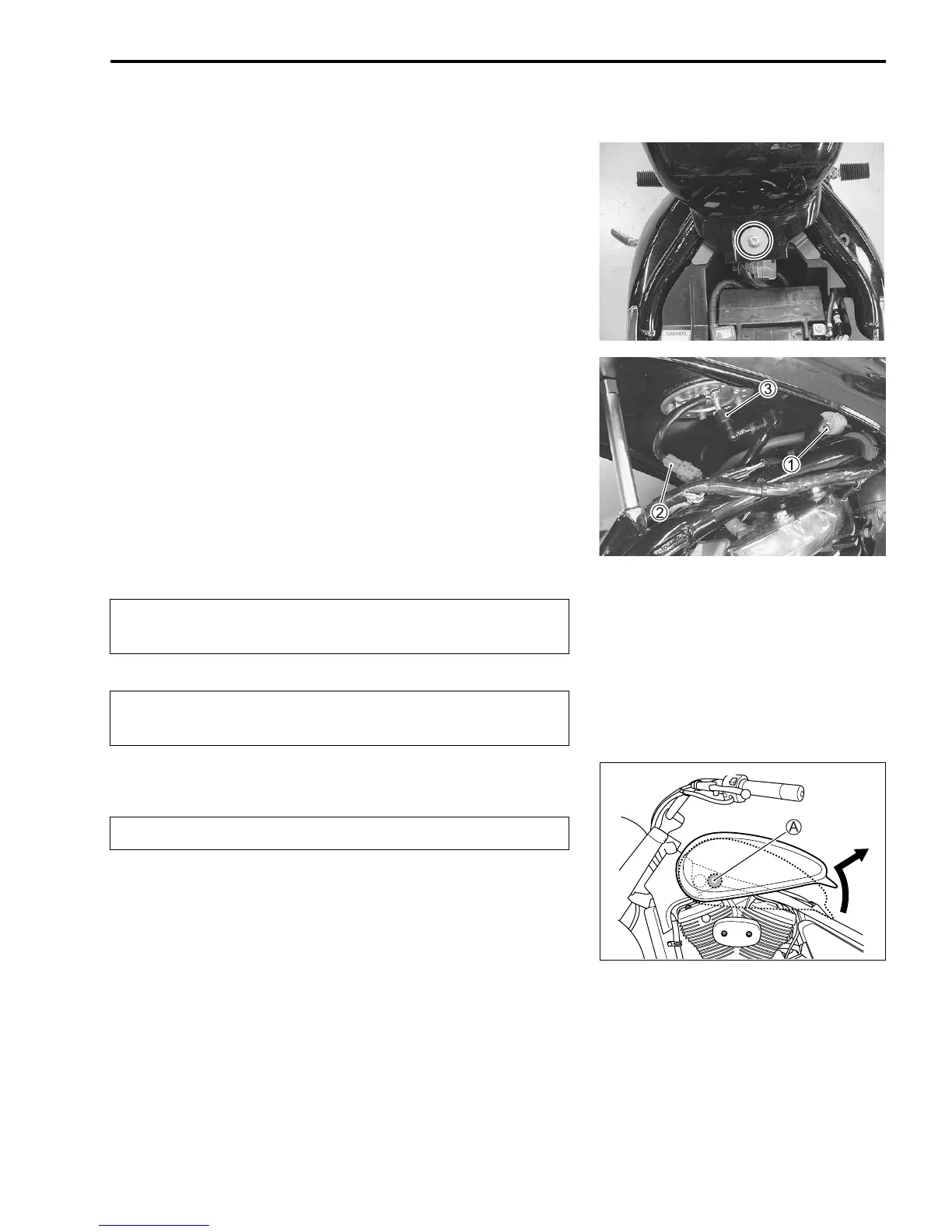

FUEL SYSTEM AND THROTTLE BODY 6-3
FUEL SYSTEM
FUEL TANK REMOVAL
• Remove the seats. (8-3)
• Remove the fuel tank mounting bolt.
• Lift and support the fuel tank about 10 cm (3.94 in) with the
proper stay.
NOTE:
Be careful not to lift the fuel more than about 10 cm (3.94 in), or
hoses will be twisted.
• Remove the pilot lamp coupler 1.
• Disconnect the fuel pump lead wire coupler 2.
• Place a rag under the fuel feed hose and remove the fuel feed
hose 3.


• Remove the fuel tank.

FUEL TANK INSTALLATION
• Installation is in the reverse order of removal.
When removing the fuel tank, do not leave the fuel
feed hose 3 on the fuel tank side.
Gasoline is highly flammable and explosive.
Keep heat, spark and flame away.
Be careful not to damage the frame A by the fuel tank.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
