6-12 FUEL SYSTEM AND THROTTLE BODY
THROTTLE BODY

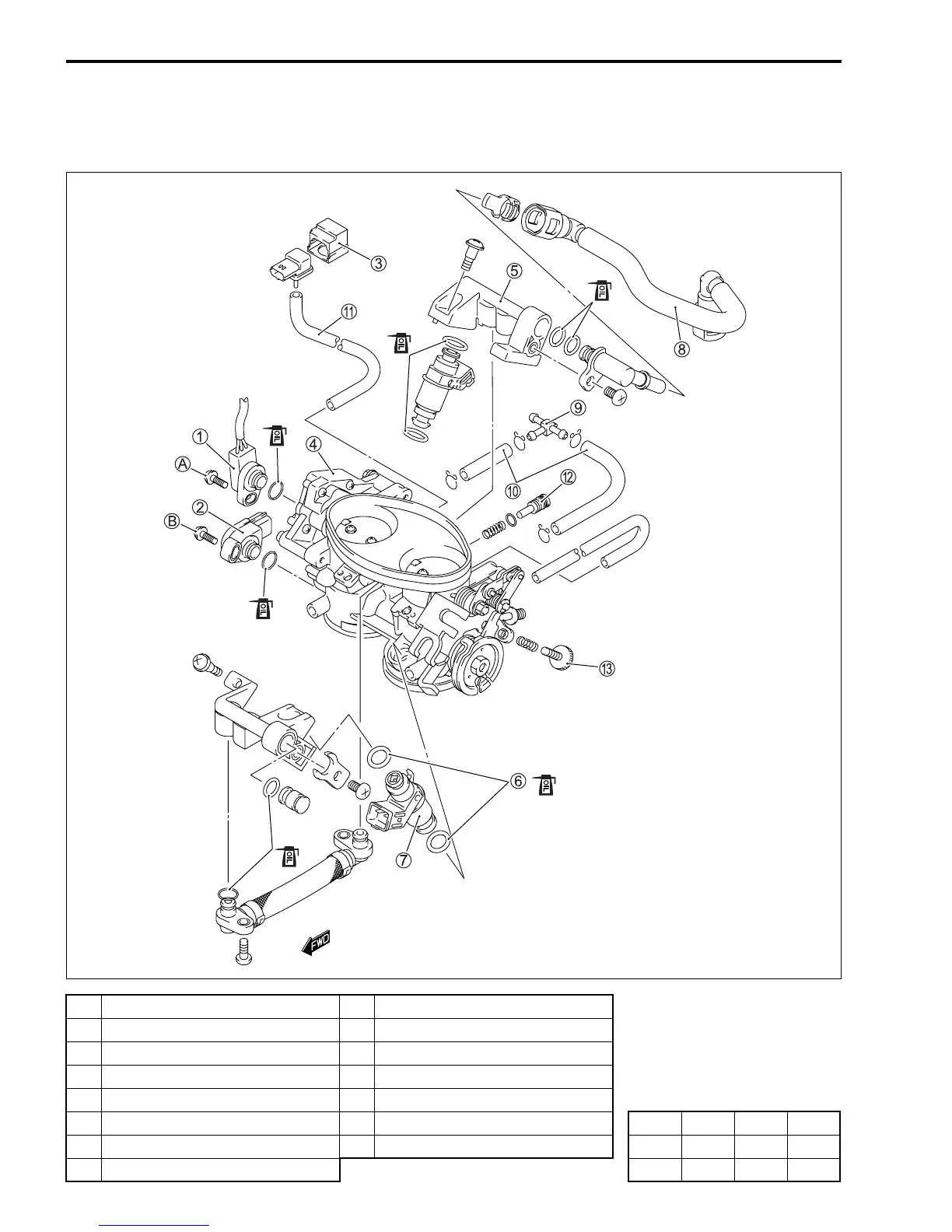

CONSTRUCTION
1 STP sensor 9 Three way joint (For E-33)
2 TP sensor 0 Hose (For E-33)
3 IAP sensor A Vacuum hoses
4 STVA B Throttle stop screw
5 Fuel delivery pipe C Idle adjusting screw 
6 O-ring A STP sensor mounting screw ITEM N·m
kgf-m lb-ft
7 Fuel injector B TP sensor mounting screw A 3.5 0.35 2.45
8 Fuel feed hose B 3.5 0.35 2.45
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
