PERIODIC MAINTENANCE 2-29
SDS CHECK
Using SDS, take the sample of data from the new motorcycle and at the time of periodic maintenance at
your dealership.
Save the data in the computer or by printing and filing the hard copies. The saved or filed data are useful for
troubleshooting as they can be compared periodically with changes over time or failure conditions of the
motorcycle.
For example, when a motorcycle is brought in for service but the troubleshooting is difficult, comparison with
the normal data that have been saved or filed can allow the specific engine failure to be determined.
• Remove the right frame cover. (8-3)
• Set up the SDS tool. (5-24)
 09904-41010: SDS set tool
99565-01010: CD-ROM Ver. 5
A number of different data under a fixed condition as shown below should be saved or filed as sample.

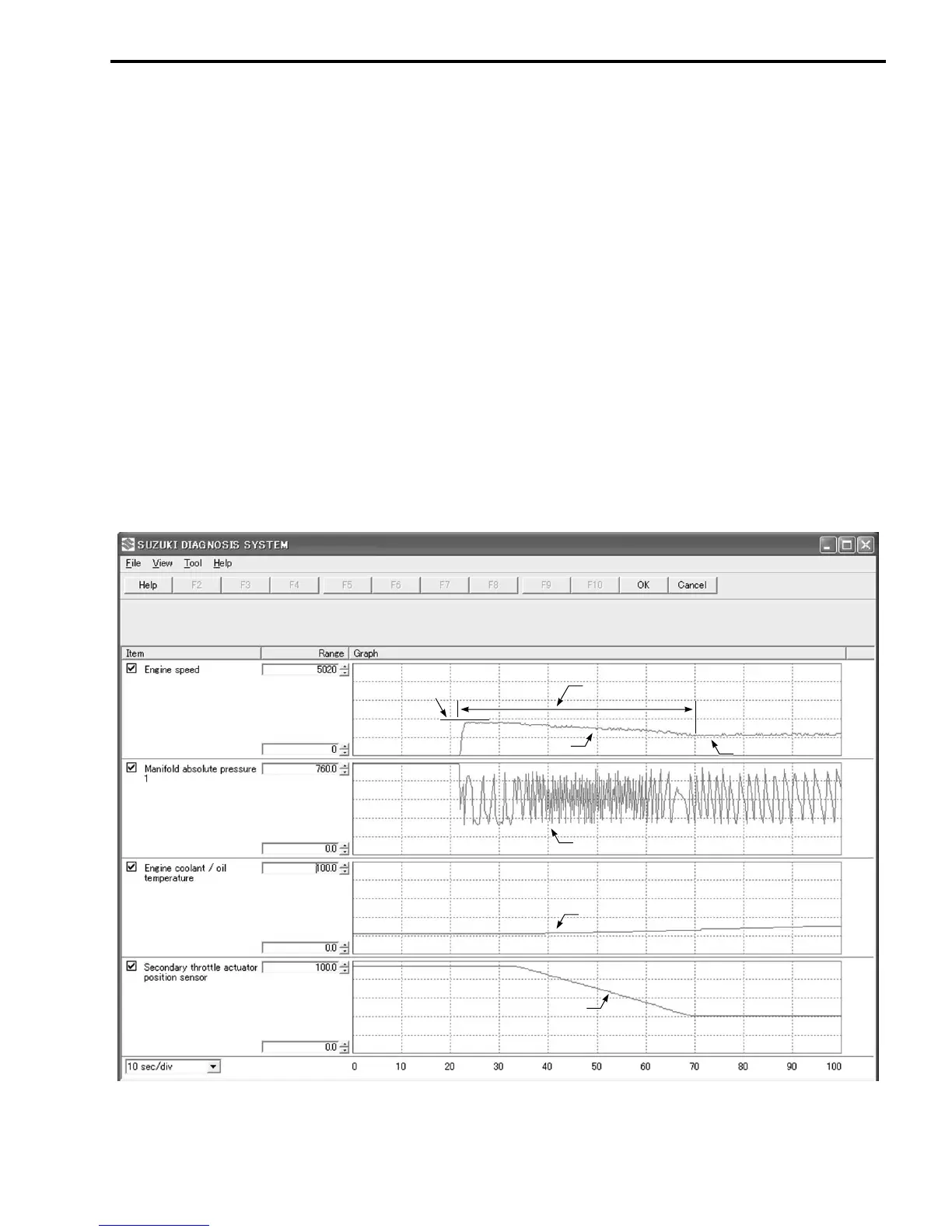

SAMPLE:
Data sampled from cold starting through warm-up
Fast idle sectionFast idle section
Check the fast idle time.
Approx. XX sec.
Check the fast idle time.
Approx. XX sec.
Check the engine r/min.
XXXX r/min
Check the engine r/min.
XXXX r/min
Check the engine r/min.
XXXX r/min
Check the engine r/min.
XXXX r/min
Check the manifold absolute pressure #1.
XXX mmHg
Check the manifold absolute pressure #1.
XXX mmHg
Check the water temperature.
XX ˚C
Check the water temperature.
XX ˚C
Check the secondary throttle valve operation
in according with the engine r/min.
Check the secondary throttle valve operation
in according with the engine r/min.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
