9-20 ELECTRICAL SYSTEM

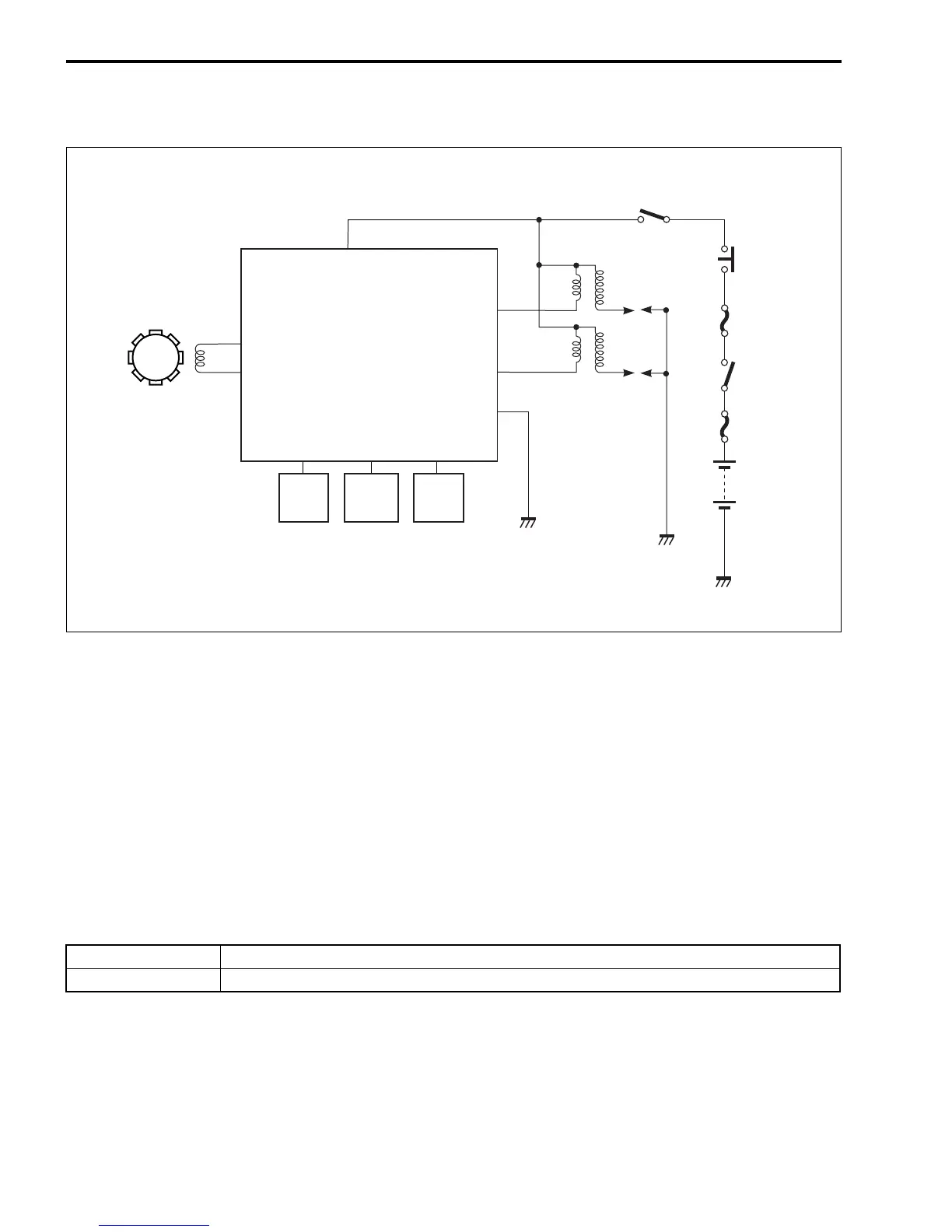

IGNITION SYSTEM
NOTE:
The fuel cut-off circuit is incorporated in this ECM in order to prevent over-running of engine. When engine
speed reaches 8 000 r/min during running, this circuit cuts off fuel at the fuel injector.
TROUBLESHOOTING
No spark or poor spark
NOTE:
Check that the transmission is in neutral and the engine stop switch is in the “RUN” position. Grasp the
clutch lever. Check that the fuse is not blown and the battery is fully-charged before diagnosing.
Step 1
1) Check the ignition system couplers for poor connections.
Is there connection in the ignition switch couplers?
YES Go to Step 2.
NO Poor connection of couplers
ECM
Throttle
position
sensor
Engine
oil temp.
sensor
Gear
position
switch
Engine stop switch
Side-
stand
relay
Fuse
Fuse
Ignition
switch
Ignition
coil
Spark plug
Battery
CKP
sensor
#1
#2
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
