SERVICING INFORMATION 10-19

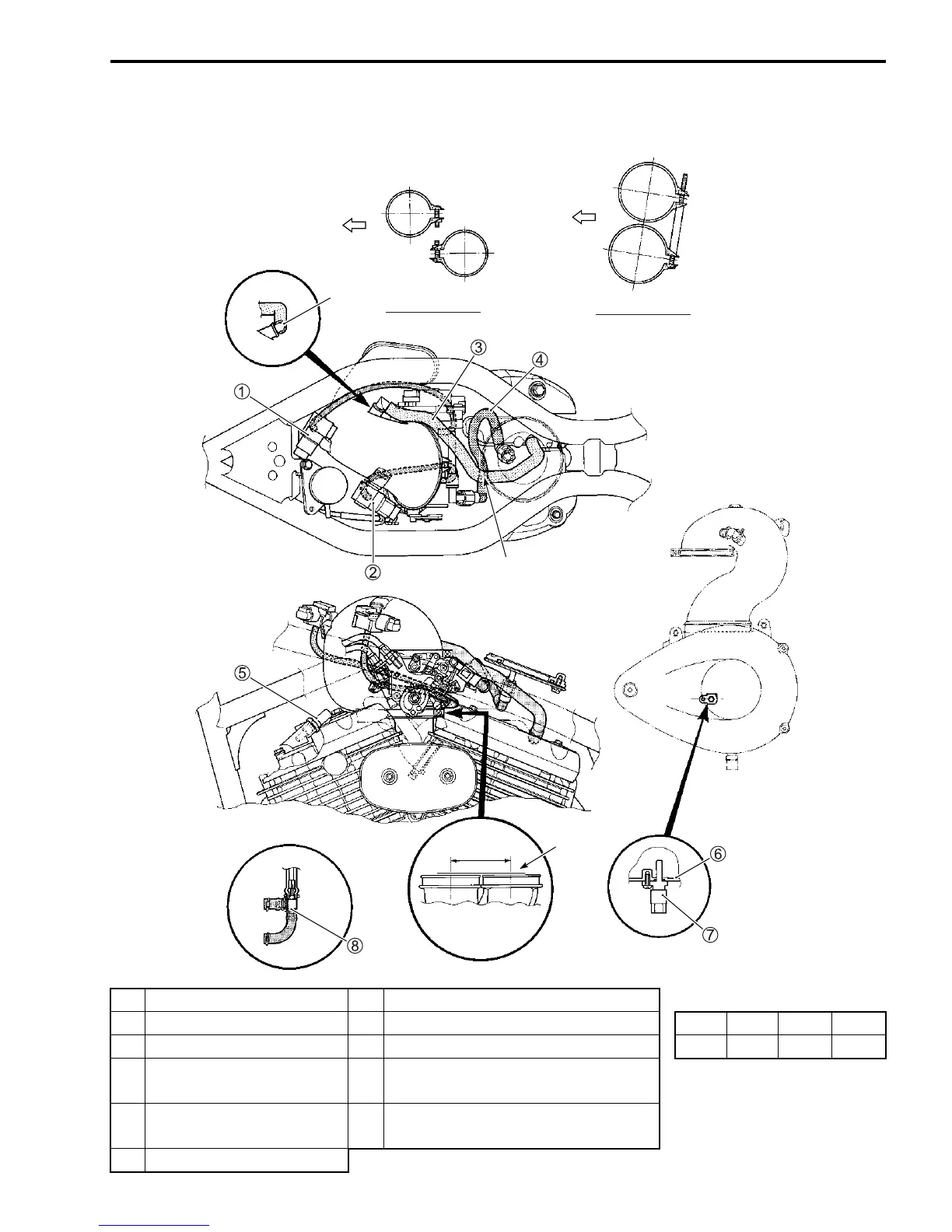

THROTTLE BODY INSTALLATION

1 IAP sensor (Front cylinder) 7 IAT sensor 

2 IAP sensor (Rear cylinder) 8 Purge hose (E-33 only) ITEM N·m

kgf-m

lb-ft

3 PCV (Breather) hose *1 Match mark 5 18 1.8 13.0

4 Fuel feed hose *2

Pass through the PCV (Breather)

hose upper the fuel hose.

5 ECT sensor *3

Install intake pipe with top surface

being horizontal.

6 Cleaner case

Intake pipe side

Air cleaner side

FWD

67 mm

SAMPLE
