ELECTRICAL SYSTEM 9-25
SPEEDOMETER AND PILOT LAMP BOX
DESCRIPTION
This speedometer mainly consists of the stepping motor, LCD (Liquid Crystal Display) and LED (Light Emit-
ting Diode). This speedometer is light, thin and of high response compared to those currently in use
because of this composition.
The speedometer pointer is driven by the stepping motor.
The LCD indicates Odo/Trip 1/Trip 2/Clock/oil pressure and engine coolant temp respectively.
NOTE:
If the engine stop switch is turned OFF while the ignition switch is ON, the LCD displays “CHEC”. But it is not
a malfunction.
This condition implies that combination meter receives no signal from the ECM.
In that case, they are restored to normal indication by turning the engine stop switch to RUN position.
LED (Light Emitting Diode)
LED is used for the illumination light and each indicator light.
LED is maintenance free. LED is less electric-power consuming and stronger to vibration resistance com-
pared to the bulb.

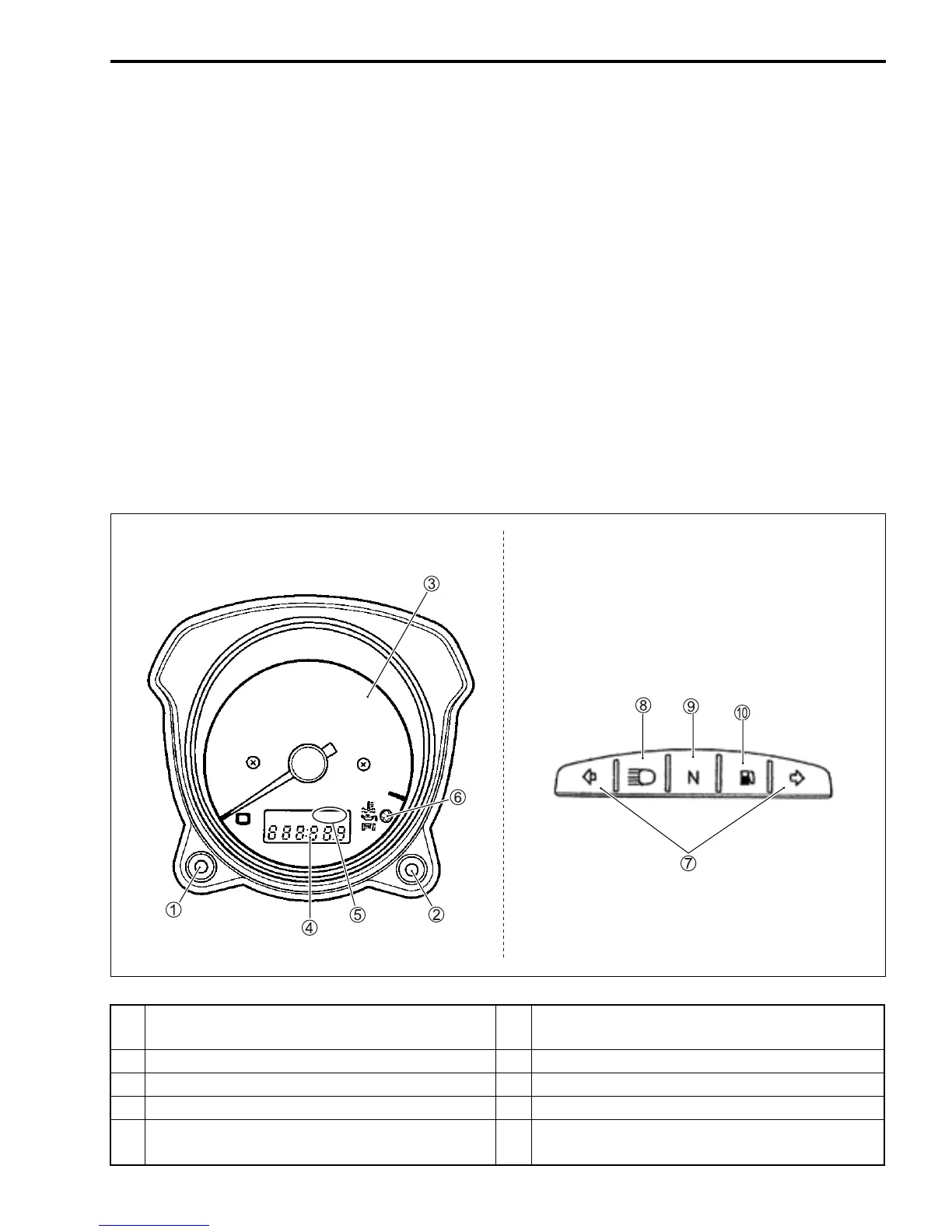

1 Select switch (Odo/Trip/Clock) 6
LED (FI/Oil pressure/Engine coolant tempera-
ture indicator light)
2 Adjust switch 7 LED (Turn signal indicator light)
3 Speedometer 8 LED (High-beam indicator light)
4 LCD (Odo/Trip1/Trip2/Clock/FI) 9 LED (Neutral indicator light)
5
LCD (Oil pressure/Engine coolant temperature
indicator light)
0 LED (Fuel level)
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
