SERVICING INFORMATION 10-27

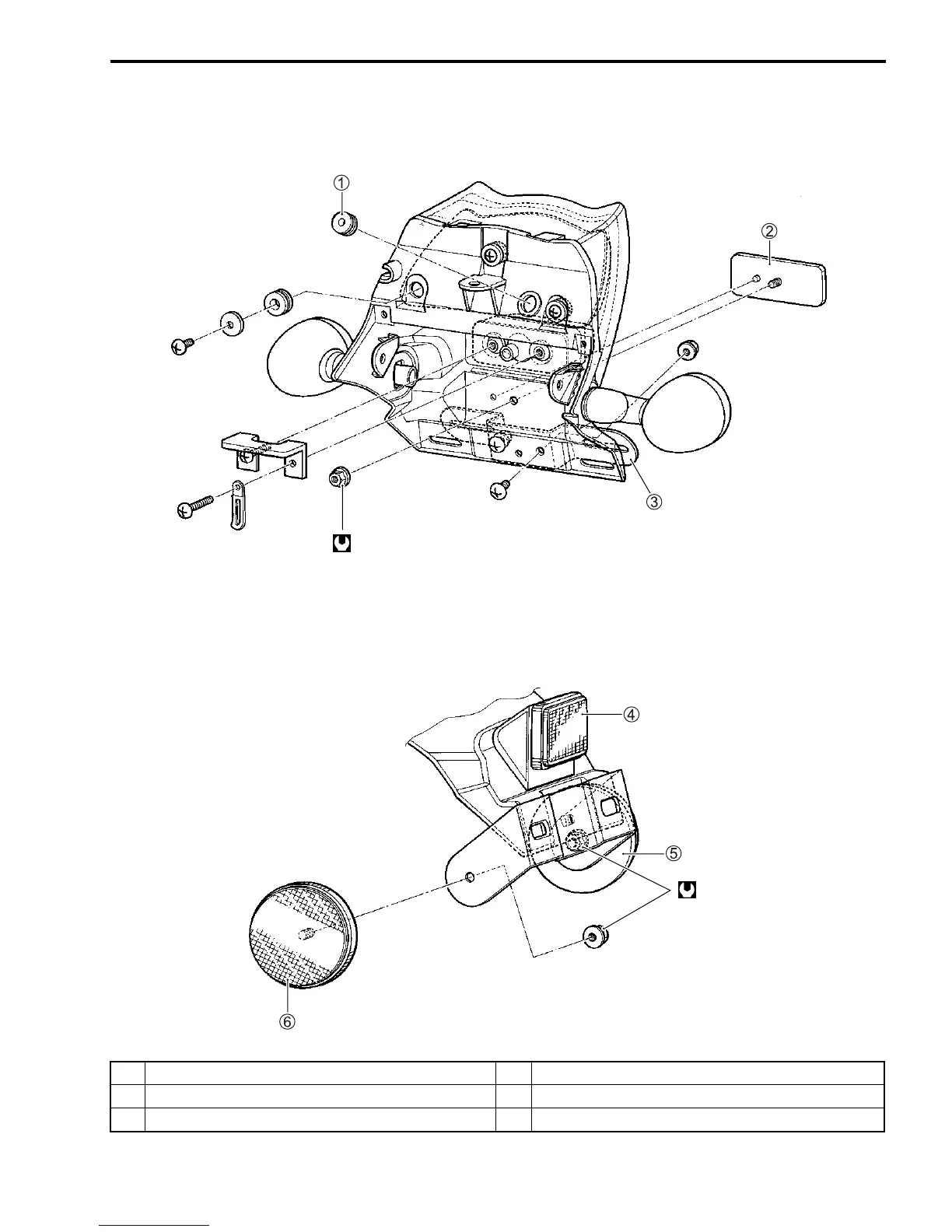

REAR COMBINATION LAMP INSTALLATION
1 Pass through the left turn signal harness. 4 Reflex reflector
2 Reflex reflector 5 Right reflex reflector (For E-03, 28, 33)
3 License plate bracket (For E-02, 19, 24) 6 Left reflex reflector (For E-03, 28, 33)
1.8 N
.
m
(0.18 kgf-m, 1.3 lb-ft)
1.8 N
.
m
(0.18 kgf-m, 1.3 lb-ft)
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
