7-8 COOLING AND LUBRICATION SYSTEM

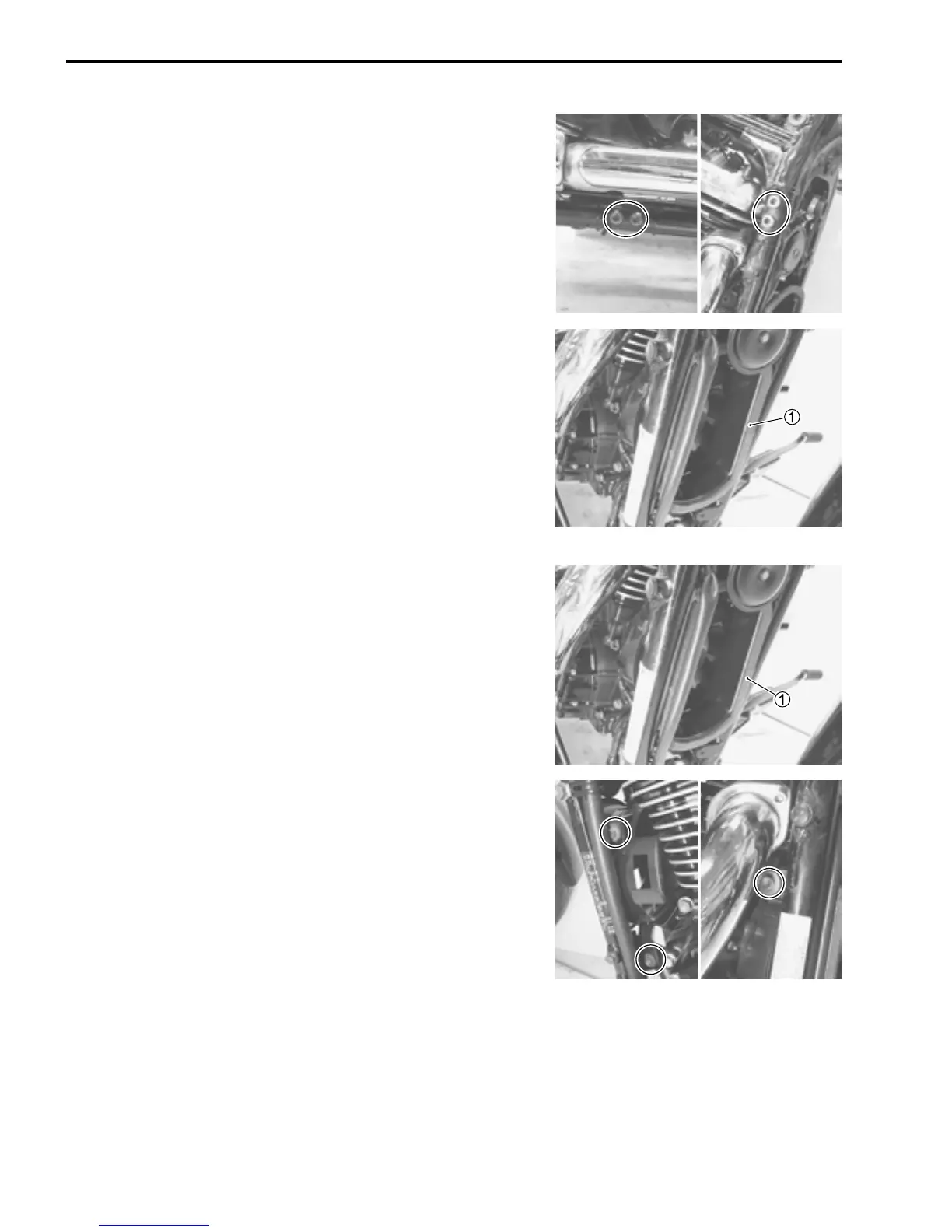

• Remove the cooling fan 1 by disconnecting the cooling fan
lead wire coupler.
INSTALLATION
Install the cooling fan in the reverse order of removal. Pay atten-
tion to the following points:
• Put the cooling fan 1 between the down tube and the engine.
• Temporary tighten the down tube mounting bolts. (3-9)
• Tighten the cooling fan mounting bolts.
• Tighten the down tube mounting bolts to the specified torque.
(3-9)
• Install the radiator. (7-5)
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
