Suzuki Boulevard M50 User Manual

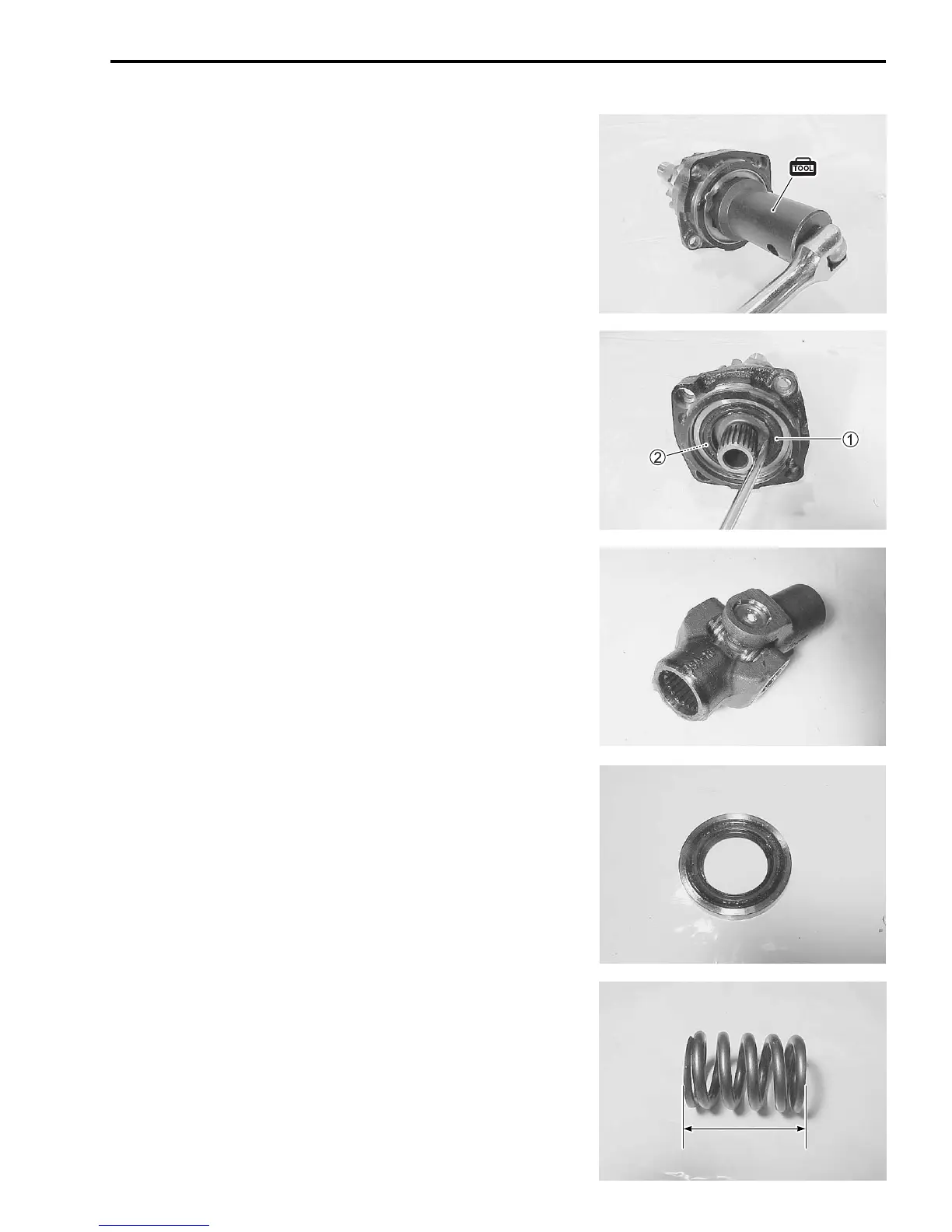

SHAFT DRIVE 4-5
SECONDARY DRIVEN BEVEL GEAR
• Remove the bearing stopper with the special tool.
 09921-21820: Bearing retainer wrench
• Remove the oil seal 1 and O-ring 2.
INSPECTION
Inspect the removed parts for the following abnormalities.
* Drive and driven bevel gears damage or wear
* Improper tooth contact
* Abnormal noise of bearings
* Bearing damage or wear
* Oil seal damage or wear
* Output cam dog wear or damage
* Universal joint spline damage or wear
DAMPER SPRING
Measure the free length of the damper spring. If the length is
shorter than the service limit, replace the spring with a new one.
 Damper spring free length
Service limit: 58.5 mm (2.30 in)
