8-40 CHASSIS

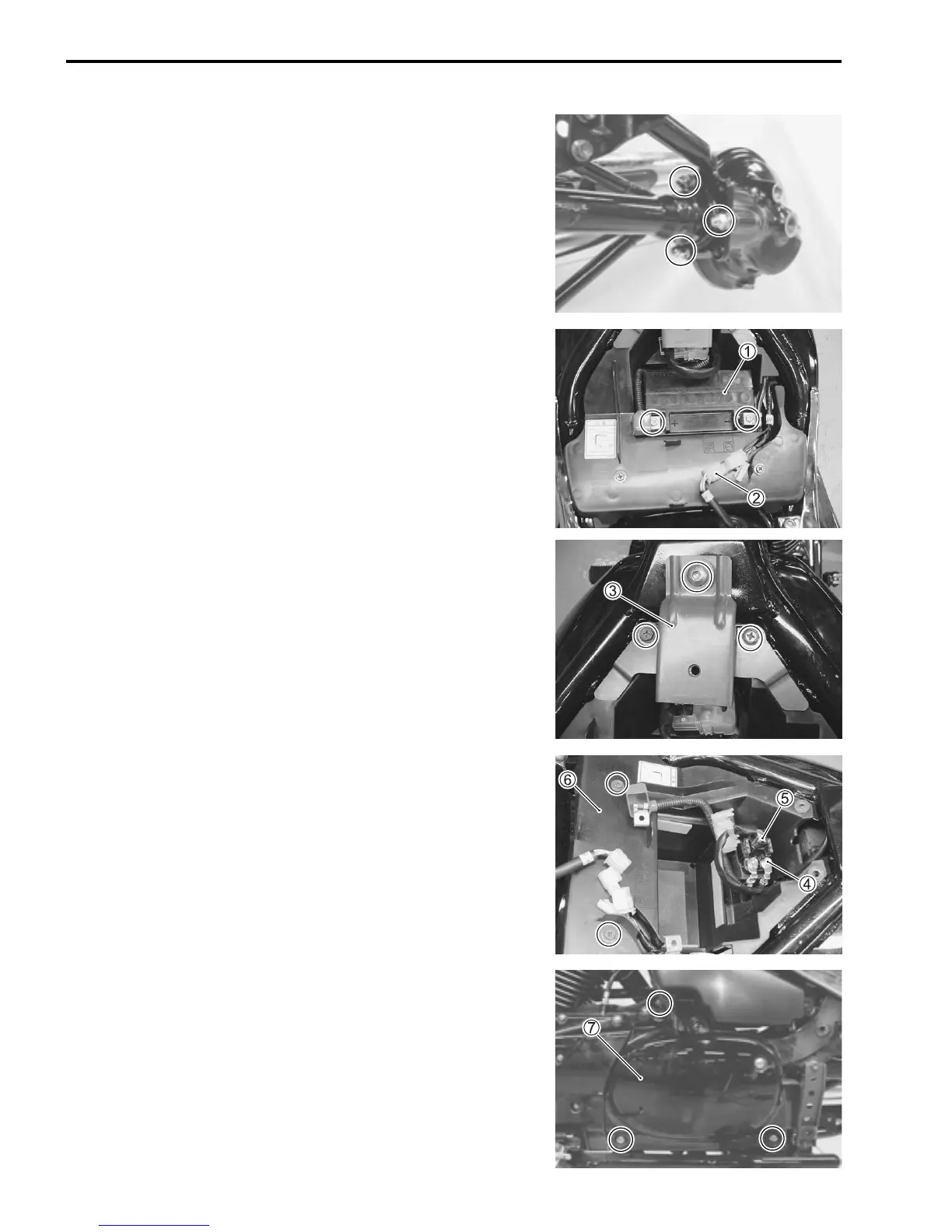

REMOVAL
• Remove the rear wheel. (8-33)
• Remove the final gear case with propeller shaft.
• Remove the fuel tank. (6-3)
• Remove the battery 1 and disconnect the coupler 2.
• Remove the set mounting bracket 3.
• Disconnect the starter motor lead wire 4 and starter relay
coupler 5.
• Remove the battery case 6.
• Remove the frame covers (L & R). (8-3 to -4)
• Remove the exhaust pipesand mufflers. (3-6)
• Remove the secondary gear case cover 7.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
