5-76 FI SYSTEM

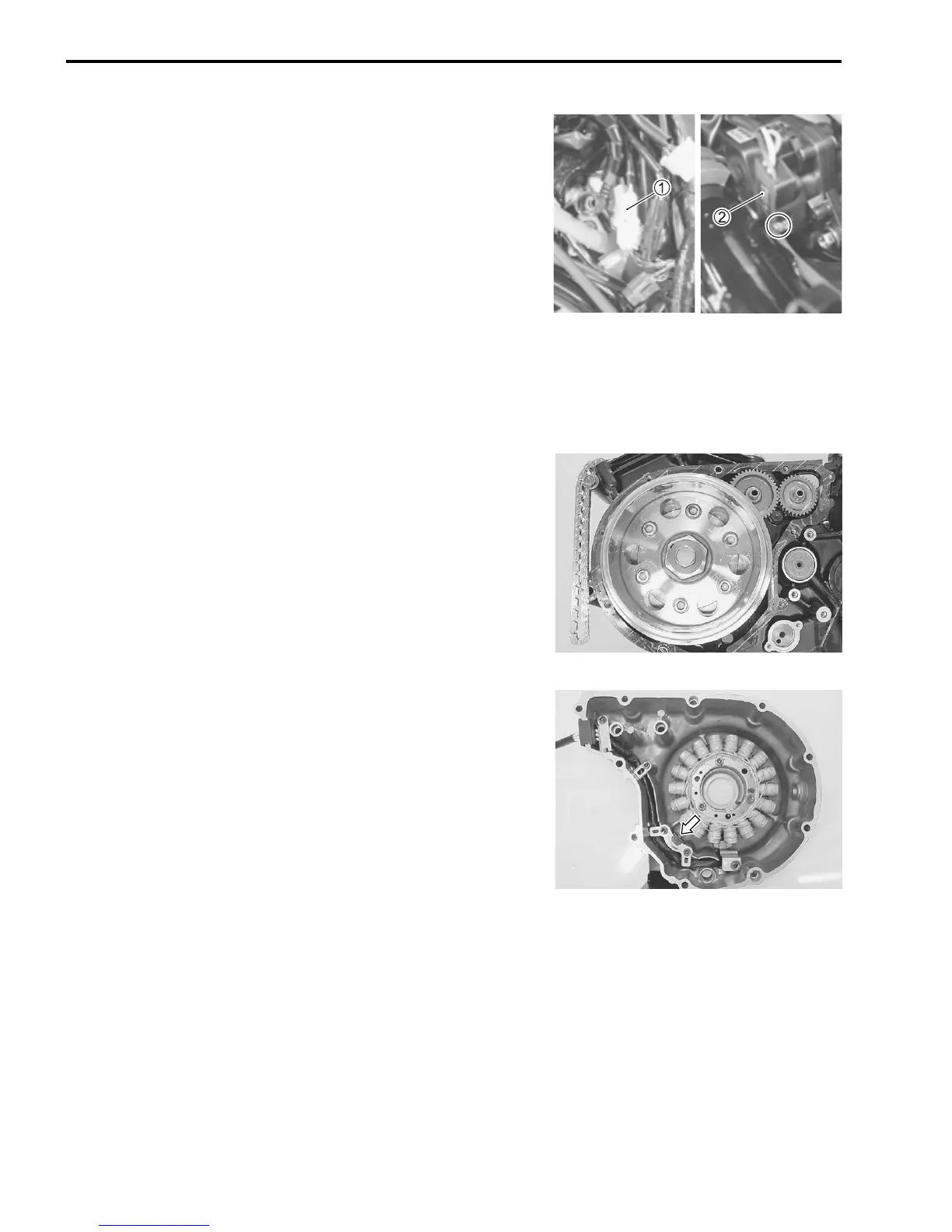

STP SENSOR INSPECTION
The secondary throttle position sensor is installed on the No. 2
throttle body. (5-59)
STP SENSOR REMOVAL/INSTALLATION
• Remove the fuel tank. (6-3)
• Disconnect the coupler 1.
• Remove the screw with a torx wrench (T25) and STP sensor
2.
• Install the STP sensor to the No. 2 throttle body.
(6-18)
• STP sensor setting procedure. (6-21)
CKP SENSOR INSPECTION
The signal rotor is mounted on the generator rotor and crank-
shaft position sensor is installed at the inside of the generator
cover. (5-30)
CKP SENSOR REMOVAL/INSTALLATION
• Remove the generator cover. (3-22)
• Remove the CKP sensor.
• Installation is in the reverse order of removal.
