Suzuki Boulevard M50 User Manual

1-6 GENERAL INFORMATION
BREAK-IN PROCEDURES
During manufacturing only the best possible materials are used and all machined parts are finished to a very
high standard. It is still necessary to allow the moving parts to “BREAK-IN” before subjecting the engine to
maximum stresses. The future performance and reliability of the engine depends on the care and restraint
exercised during its early life. Refer to the following break-in engine speed recommendations.
• Keep to these break-in throttle positions during the break-in period.
Break-in throttle operation
Initial 800 km ( 500 miles): Less than 1/2 throttle
Up to 1 600 km (1 000 miles): Less than 3/4 throttle
• Upon reaching an odometer reading of 1 600 km (1 000 miles) you can subject the motorcycle to full throt-
tle operation.

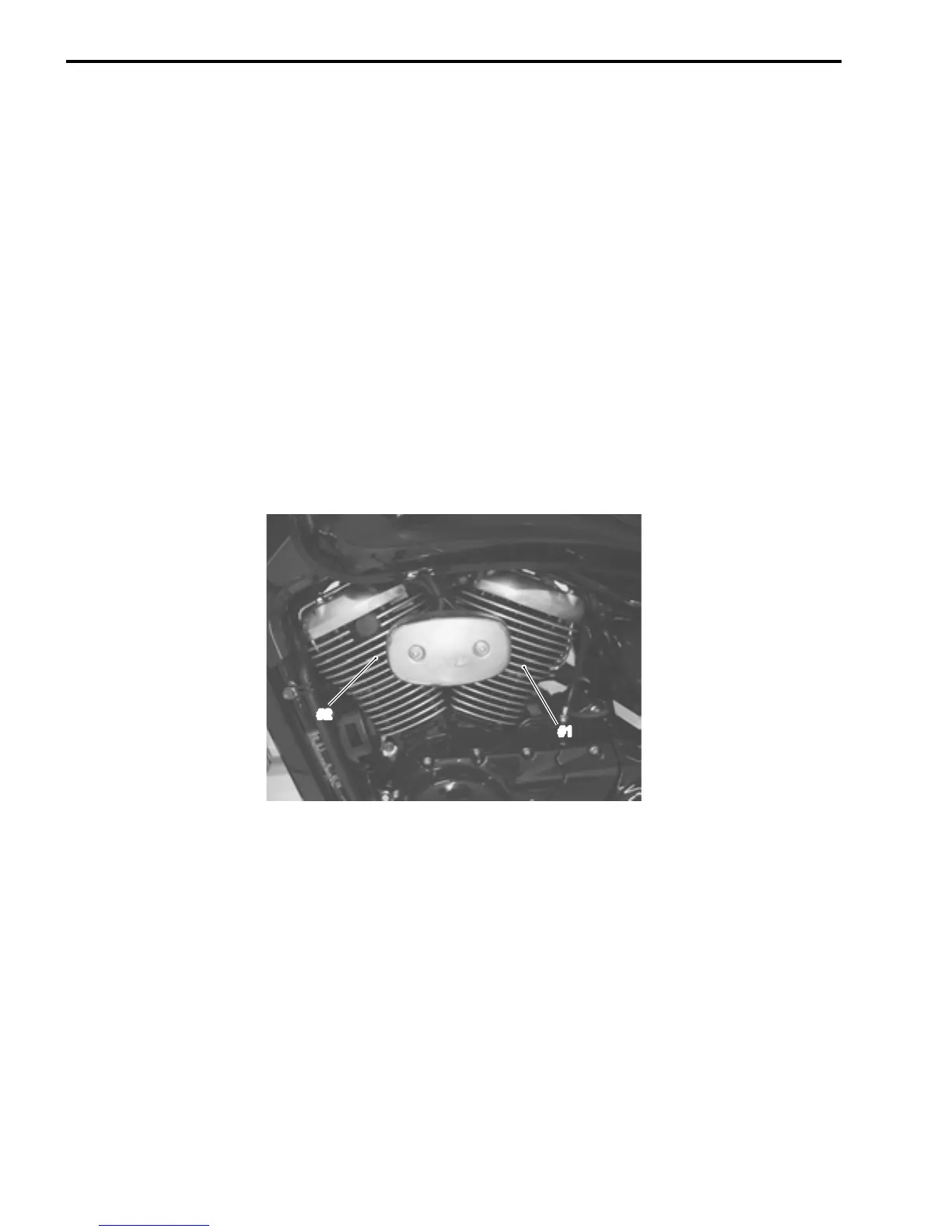

CYLINDER IDENTIFICATION
The two cylinders of this engine are identified as No. 1 and No. 2 cylinder, as counted from front to rear (as
viewed by the rider on the seat).
#1
#2
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
