Suzuki Boulevard M50 User Manual

SERVICING INFORMATION 10-15

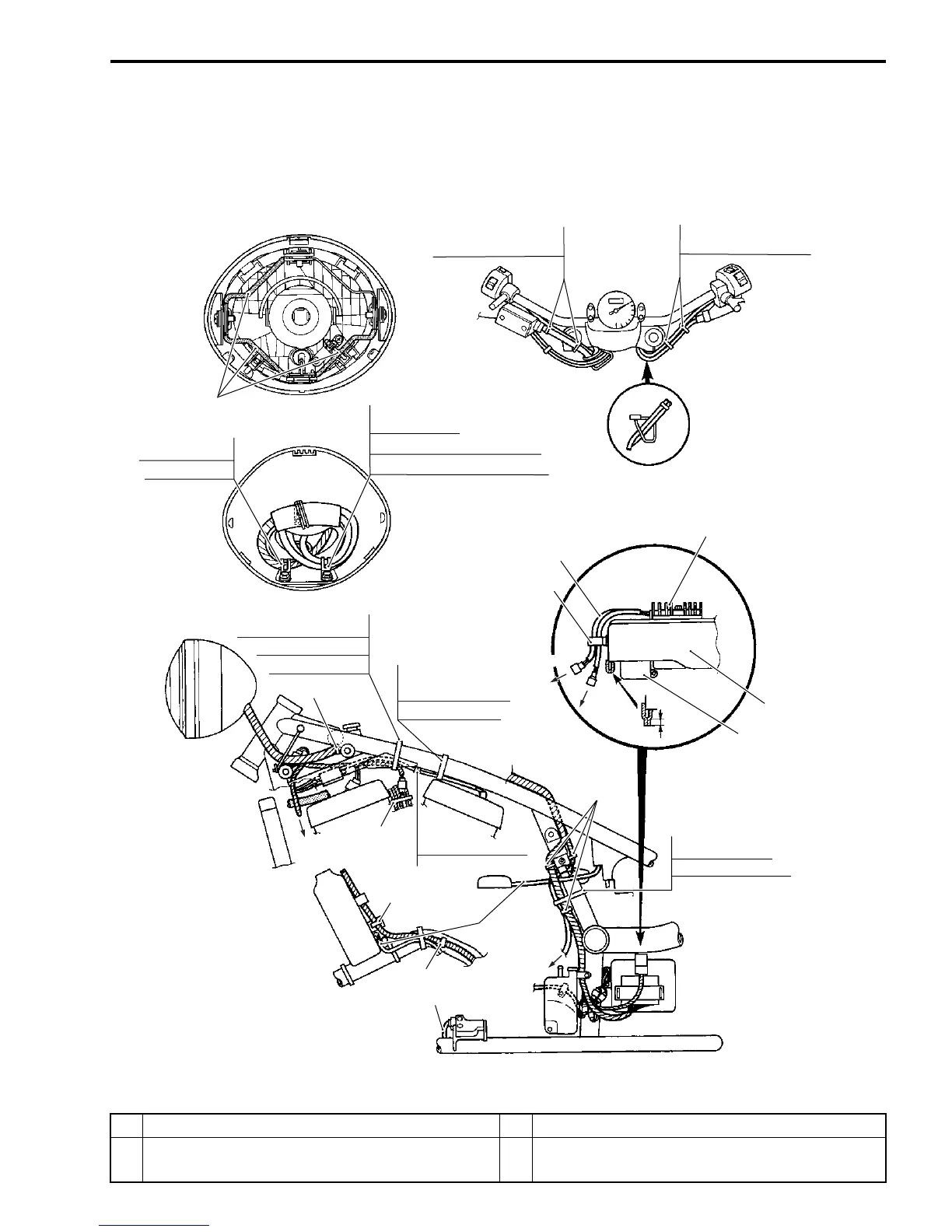

WIRING HARNESS, CABLE AND HOSE ROUTING
WIRING HARNESS ROUTING
Regulator/Rectifier
Electrical parts
holder
Fuse
Wiring harness
Generator leadwire
Clamp
Clamp
Clamp
Wiring harness
Front turn signal light (L & R)
Handlebar switch (L & R)
Speed sensor
Starter motor
leadwire
*3
Clamp
Speedometer
5 mm
Clamp
Handlebar switch (R)
Clamp
Handlebar switch (L)
Clamp
Cushion
Clamp
To generator
To
generator
To wiring harnessTo wiring harness
To horn
Wiring harness
Solenoid branch wire
High tension cord
Clamp
Clamp
Rear ignition coil
High tension cord
High tension cord
Clamp
Clamp
Clamp
*2
*1
*4
To generator
*1 Do not slacker. *3 Cut after excess clamp.
*2 Do not pass through the harness on the bracket. *4
Connect with the gear position switch inside
cover.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
