CHASSIS 8-65
• Remove the cotter pins.
REASSEMBLY REMOUNTING

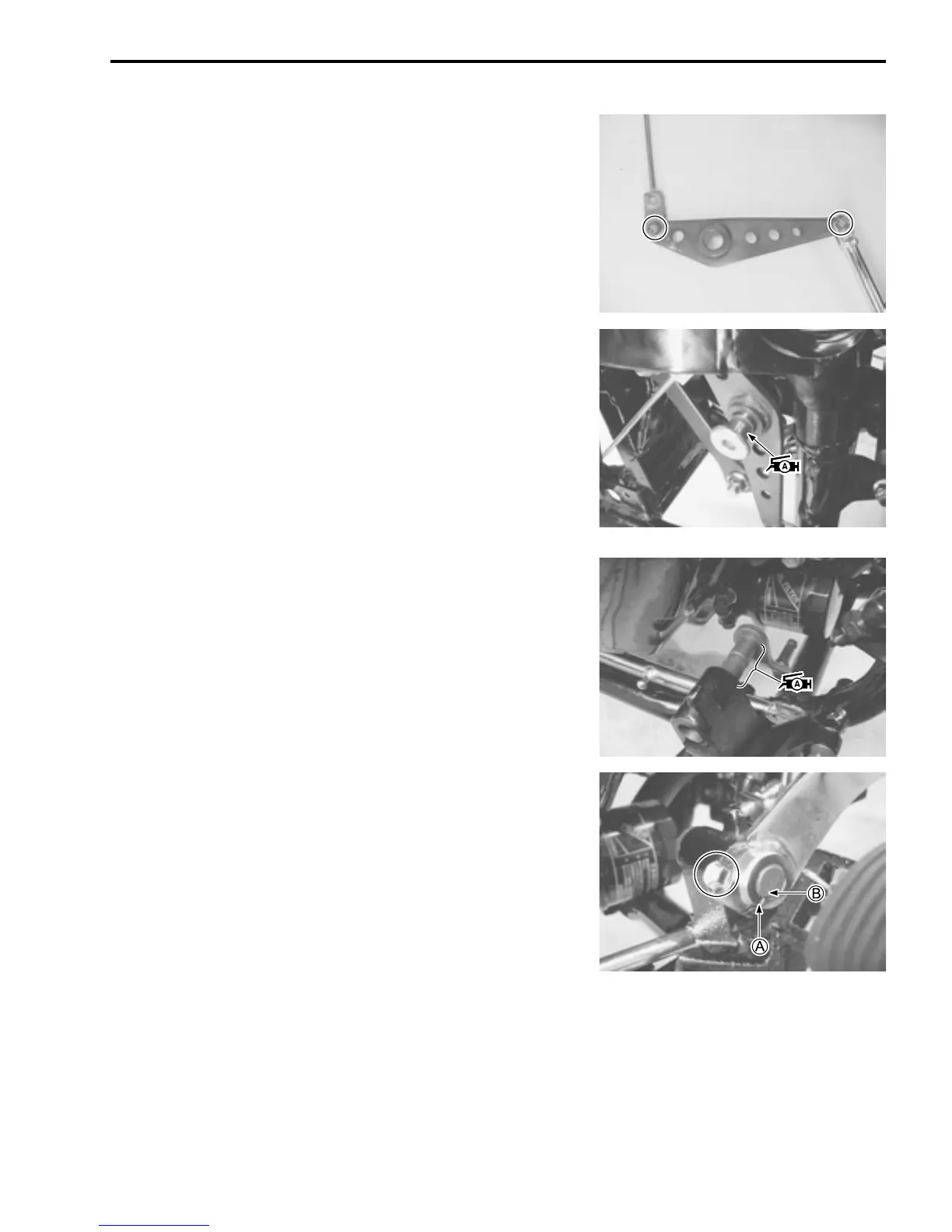

Reassemble and remount the rear brake rod in the reverse
order of removal and disassembly. Pay attention to the following
points.
• Apply grease to the rear brake link pivot bolt and tighten it to
the specified torque.
 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
 Rear brake link pivot bolt: 29 N·m (2.9 kgf-m, 21 lb-ft)
• Apply grease to the rear brake pedal shaft.
 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Tighten the rear brake pedal mount bolt to the specified
torque.
 Rear brake pedal mount bolt: 11 N·m (1.1 kgf-m, 8.0 lb-ft)
NOTE:
* When remounting the rear brake pedal onto the rear brake
pedal shaft, align the rear brake pedal mounting surface A
with the punch mark B.
* After remounting the rear wheel, check for proper brake opera-
tion. (2-21)
• Install the exhaust pipes and mufflers. (3-10)
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
