4-2 SHAFT DRIVE
SECONDARY BEVEL GEARS

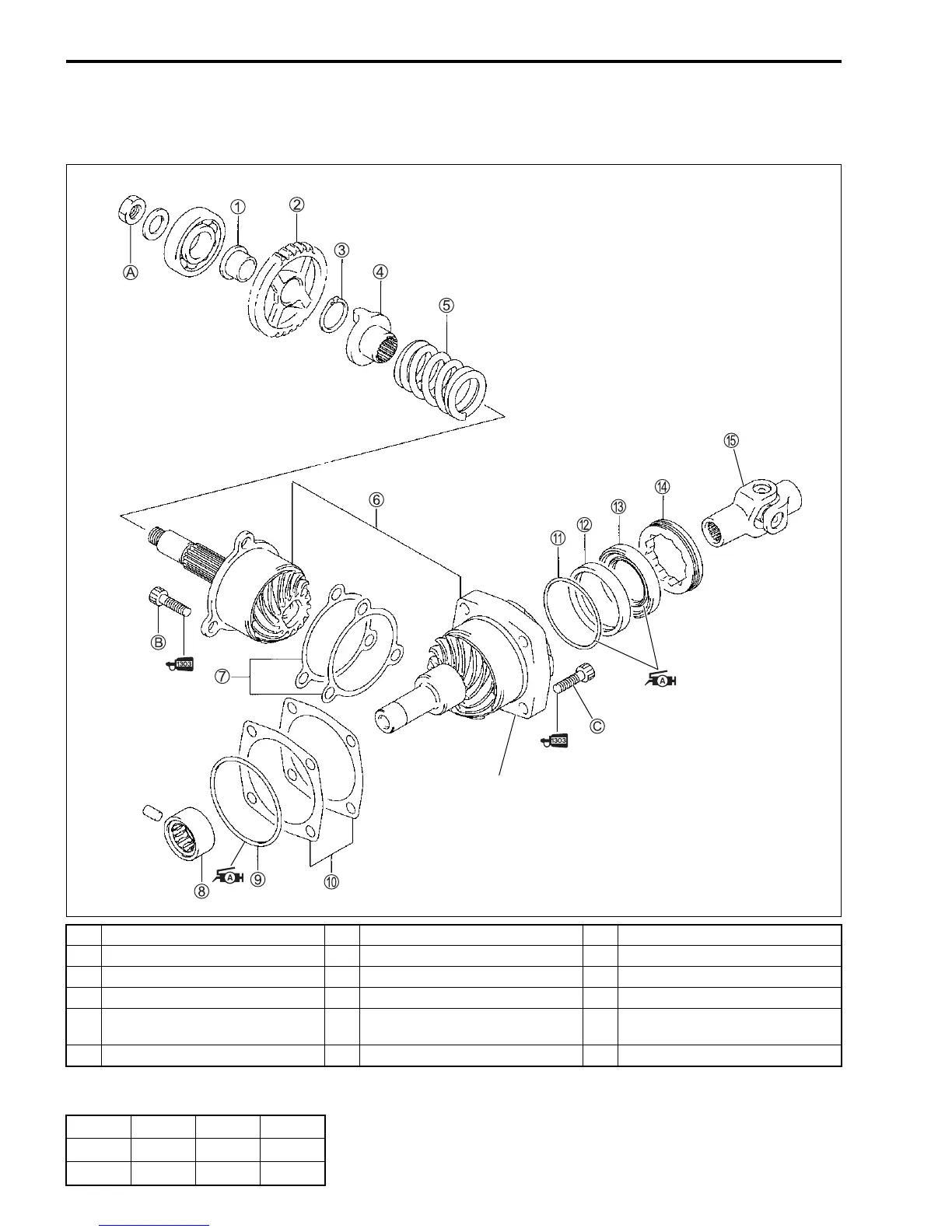

CONSTRUCTION
* A: Do not disassemble the secondary driven gear.

1 Bush 7 Shims (5 kinds) C Oil seal
2 Overdriving driven gear 8 Driven bevel gear bearing D Bearing stopper
3 Circlip 9 O-ring E Universal joint
4 Output cam dog 0 Shims (5 kinds) A Secondary drive gear shaft nut
5 Damper spring A O-ring B
Secondary drive bevel gear bear-
ing retainer bolt
6 Secondary bevel gear set B Oil seal housing C Secondary driven bevel gear bolt
ITEM N·m kgf-m lb-ft
A 105 10.5 76.0
B, C 23 2.3 16.5
