5-10 FI SYSTEM
FI SYSTEM TECHNICAL FEATURES

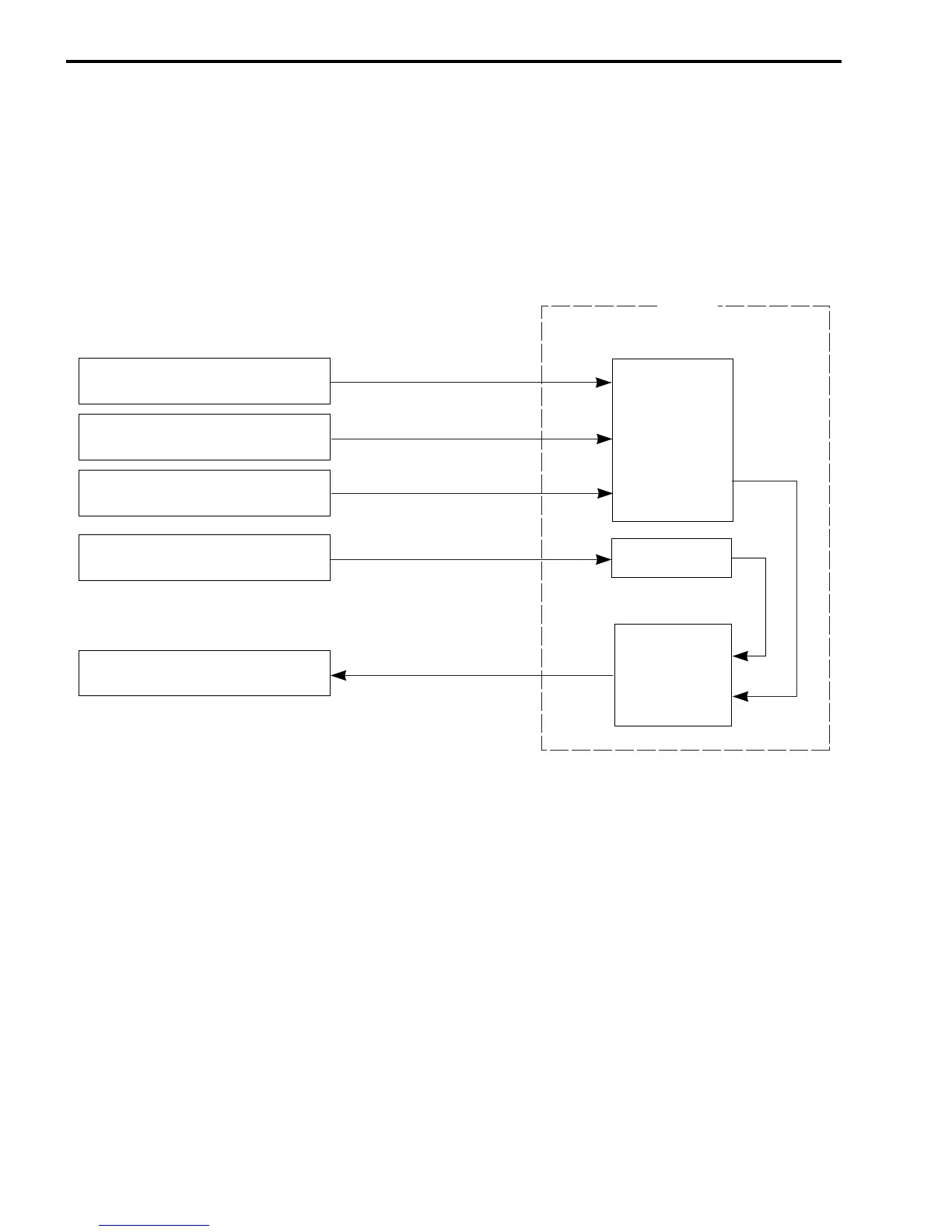

INJECTION TIME (INJECTION VOLUME)
The factors to determine the injection time include the basic fuel injection time which is calculated on the
basis of the intake air pressure, engine speed and throttle opening angle, and various compensations.
These compensations are determined according to the signals from various sensors that detect the engine
and driving conditions.
Intake Air Pressure
Sensor (IAP Sensor)
Crankshaft Position
Sensor (CKP Sensor)
Throttle Position
Sensor (TP Sensor)
Various
Sensors
Injectors
Intake air pressure
signal
Engine speed
signal
Various signals
Injection signal
Basic
fuel
injection
time
Compensation
Ultimate
fuel
injection
time
Throttle opening
signal
ECM
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
