10-18 SERVICING INFORMATION

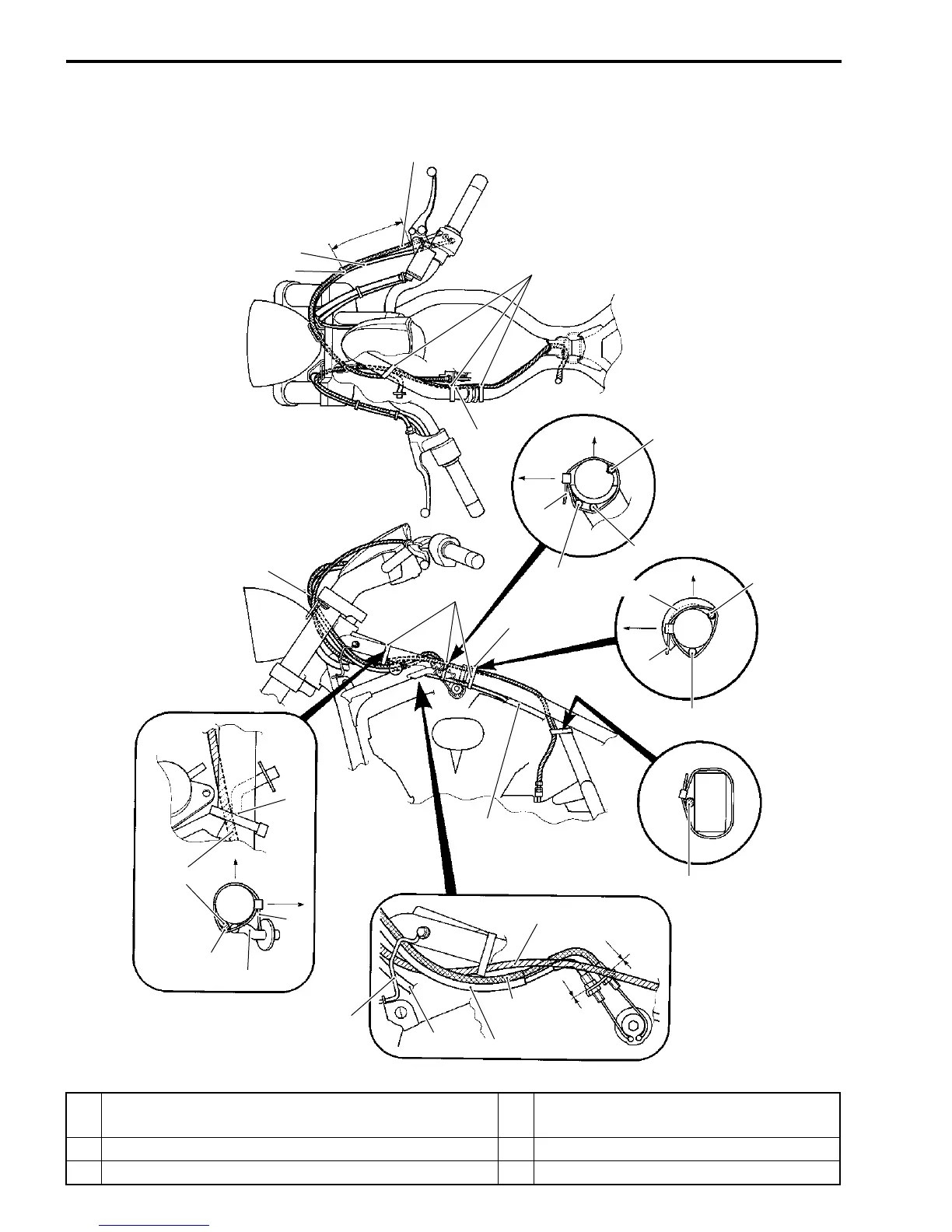

CABLE ROUTING
*1
Set the clutch cable dented part and clamp the clutch
cable at white tape of cable.
*4 Clamp the back side of cushion.
*2 Clamp with this direction. *5 Do not hang the clamp on the bar.
*3 Clamp the clutch cable attach to the cushion. *6 Clamp inside the bar.
Clutch
cable
*3
Guide
Throttle cable No. 1
Throttle cable No. 2
Clip
White
tape
Clutch cable
Clutch cable
0
–
2
m
m
0 – 2 mm
Solenoid
harness
High-tension cord
Clutch cable
*4
*2
*2
*5
*2
*6
*1
High-tension
cord
High-tension cord
Throttle
cable No. 1
Harness
Guide
Throttle cable No. 2
Fuel tank cushion bar
150 mm
Clutch cable
UP
Outside
UP
Outside
UP
Outside
Frame
Frame
Clamp
Clamp
Cushion
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
